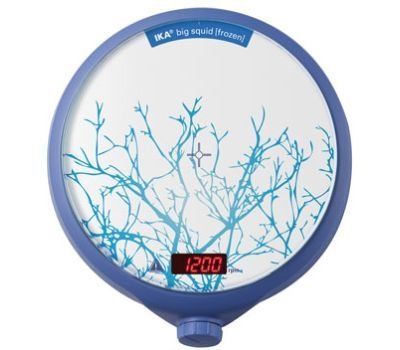

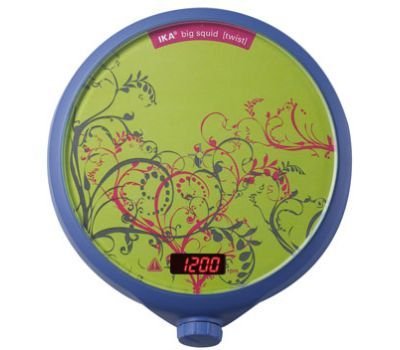

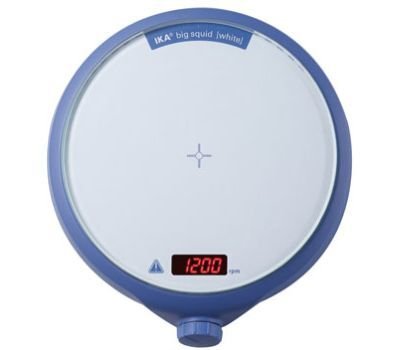

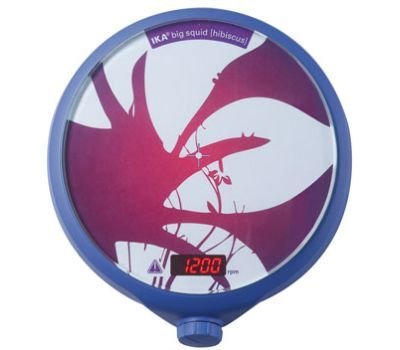

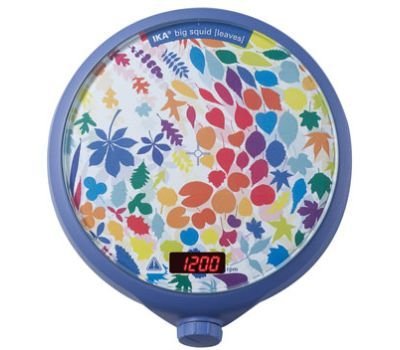

Big Squid IKAMAG® Magnetic Stirrer
Revolutionize your laboratory mixing tasks with the Big Squid IKAMAG® magnetic stirrer, featuring an innovative design that enhances performance and reliability. This state-of-the-art magnetic stirrer is engineered to meet the rigorous demands of modern laboratories, ensuring exceptional mixing capabilities for a variety of applications.
Key Features
- Digital speed display (LED) for precise monitoring
- Electronically controlled motor that boosts stirring capacity
- Extended speed range from 0 to 2,500 rpm, catering to diverse mixing needs
- Superior chemical resistance characterized by a durable glass top and TPC-ET synthetic bottom
- Crafted from recyclable materials, promoting environmental sustainability
Specifications
| Specification |
Detail |
| Number of stirring positions |
1 |
| Maximum stirring quantity (H2O) |
1.5 l |
| Motor rating input |
3 W |
| Motor rating output |
2 W |
| Speed display |
LED |
| Speed range |
0 - 2,500 rpm |
| Maximum stirring bar length |
30 mm |
| Speed control |
50 RPM Steps |
| Set-up plate material |
Glass |
| Set-up plate dimensions |
Ø 160 mm |
| Dimensions (W x H x D) |
180 x 40 x 195 mm |
| Weight |
0.7 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80% |
| Protection class according to DIN EN 60529 |
IP 54 |
| RS 232 interface |
No |
| Analog output |
No |
| Voltage |
120 V |
| Frequency |
50/60 Hz |
| Power input |
4 W |
| DC Voltage |
12 V= |
| Current consumption |
300 mA |
