BIH Heavy Insulated Heating Tapes (2 - 10ft)

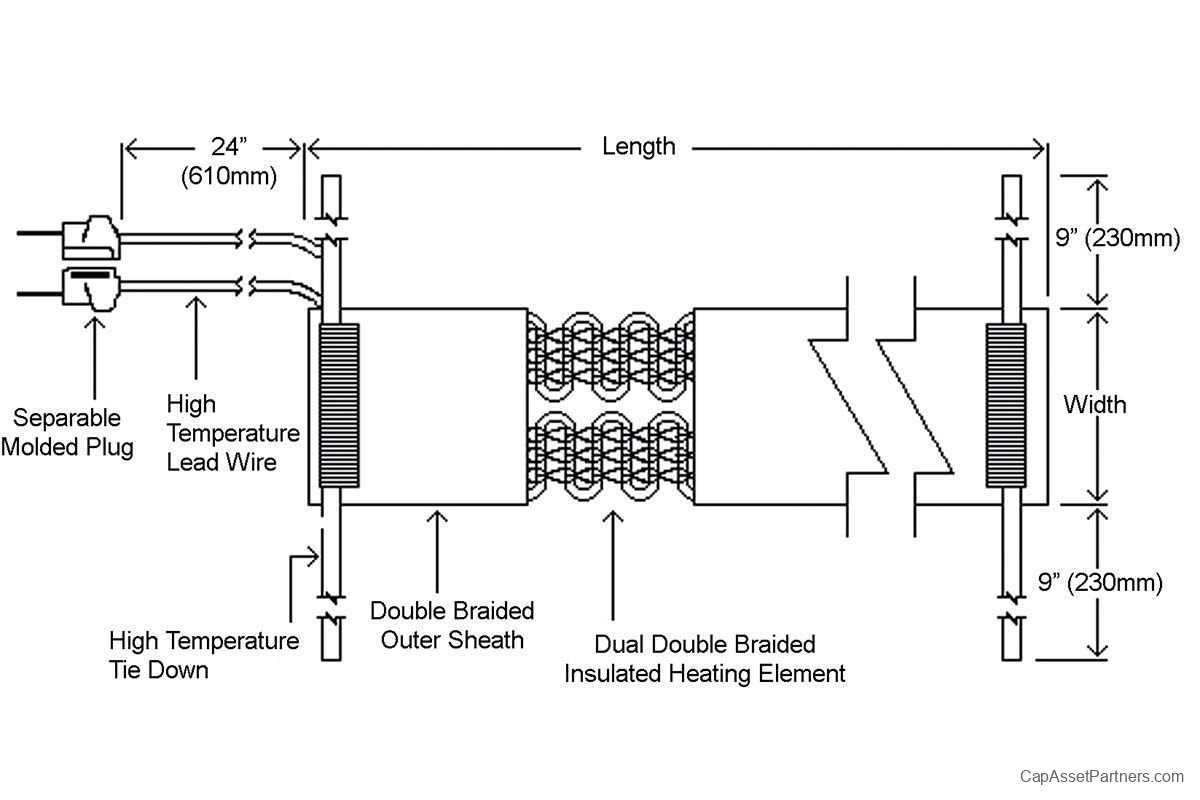

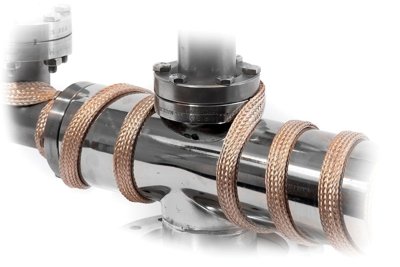

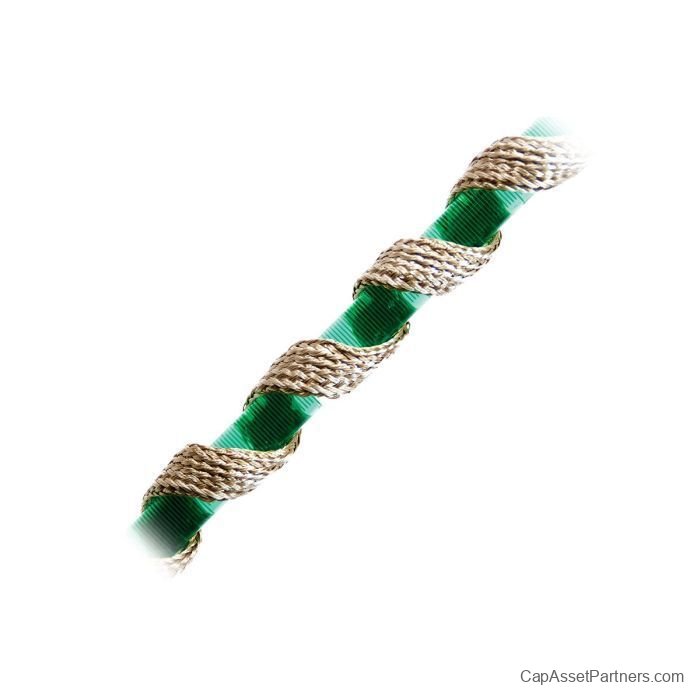

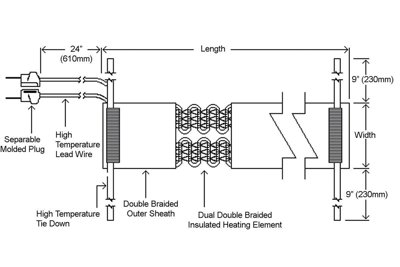

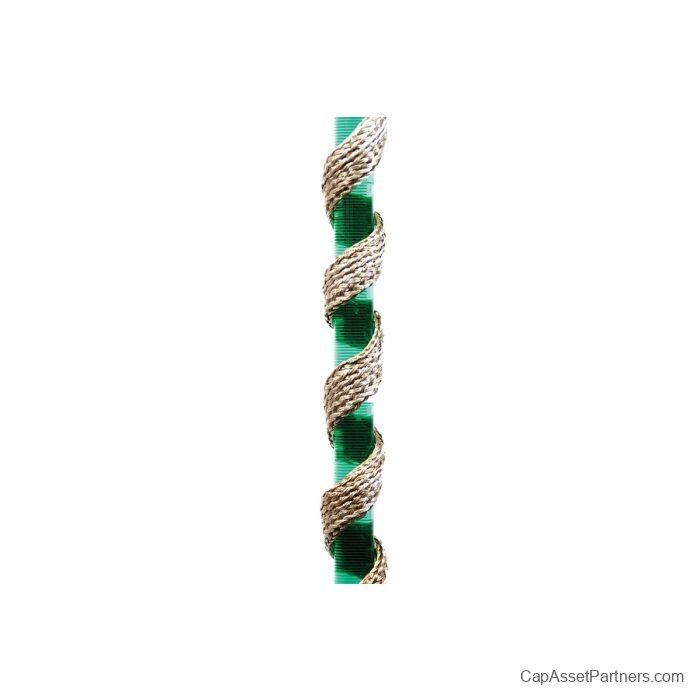

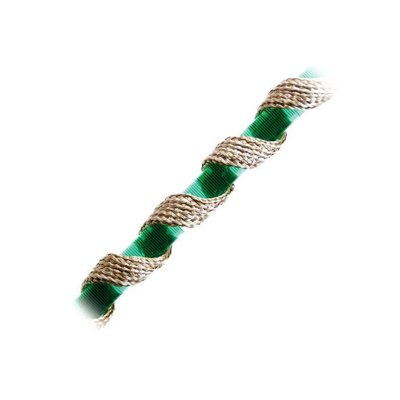

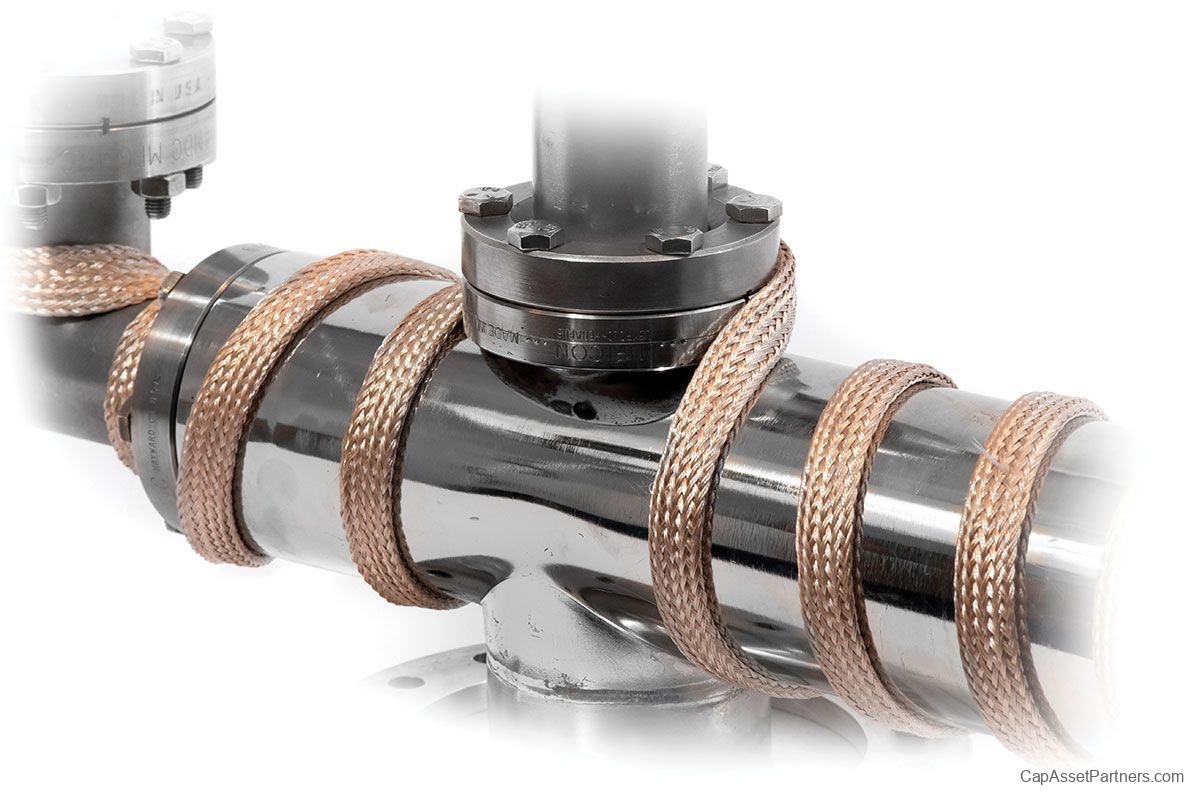

Enhance your laboratory heating applications with our premium Heavy Insulated Heating Tapes. Engineered with a multi-stranded resistance wire heating element, these tapes are wrapped in a robust fiberglass outer sheath, ensuring both electrical insulation and durability. Designed for a diverse range of uses—from heating apparatus and gas tubing to delivering temporary heat to valves—these tapes deliver rapid thermal response and come in various lengths and width configurations to meet your precise heating needs.
Note: A temperature controller is essential for the safe operation of this product.
Product Features:
- Compatible with glass and electrically conductive metal surfaces for versatile applications
- Comes with 9-inch (230 mm) high-temperature tie downs included for straightforward installation
- Innovative built-in split-plug design simplifies setup
- Maximum Exposure Temperatures:
- Removable and reusable use: Up to 572°F (300°C)
- Single use: Up to 932°F (500°C)
- Exceptional flexibility to adapt to different surfaces and shapes
- Fast and accurate thermal response for effective heating
- Available with power leads on the same end or opposite ends for customized configurations
Specifications:
SKU |
Wattage |
Voltage |
BIH051020L |
105W |
120V |
BIH051040L |
210W |
120V |
BIH051060L |
310W |
120V |
BIH051080L |
420W |
120V |
BIH051100L |
520W |
120V |
BIH051120L |
620W |
120V |
BIH101010L |
105W |
120V |
BIH101020L |
210W |
120V |
BIH101040L |
420W |
120V |
BIH101060L |
620W |
120V |
BIH101080L |
830W |
120V |
BIH101100L |
1040W |
120V |
BIH101120L |
1250W |
120V |
BIH171020L |
209W |
120V |
BIH171040L |
418W |
120V |
BIH171060L |
627W |
120V |
BIH171080L |
836W |
120V |
BIH171100L |
1045W |
120V |
BIH251020L |
313W |
120V |
BIH251040L |
627W |
120V |
BIH251060L |
940W |
120V |
BIH251080L |
1254W |
120V |
BIH251100L |
1567W |
120V |
BIH321020L |
418W |
120V |
BIH321040L |
836W |
120V |
BIH321060L |
1254W |
120V |
BIH321080L |
1672W |
120V |
BIH321100L |
2090W |
120V |
