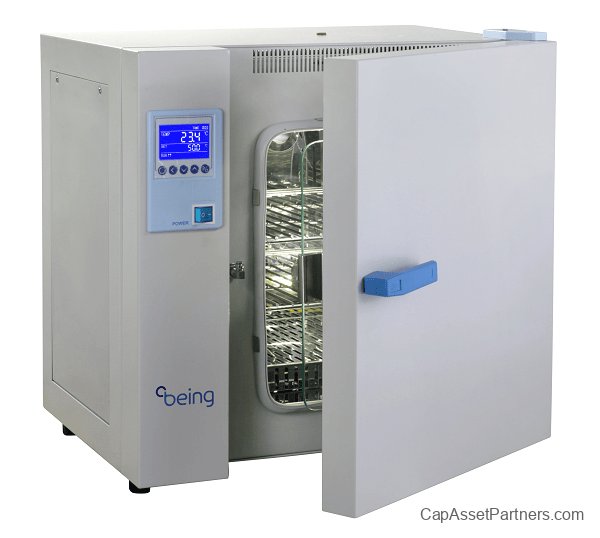

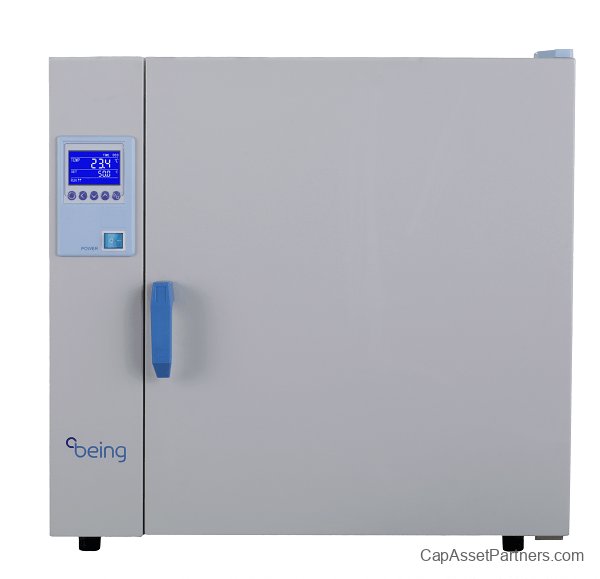

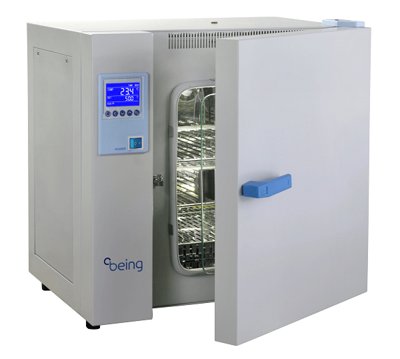

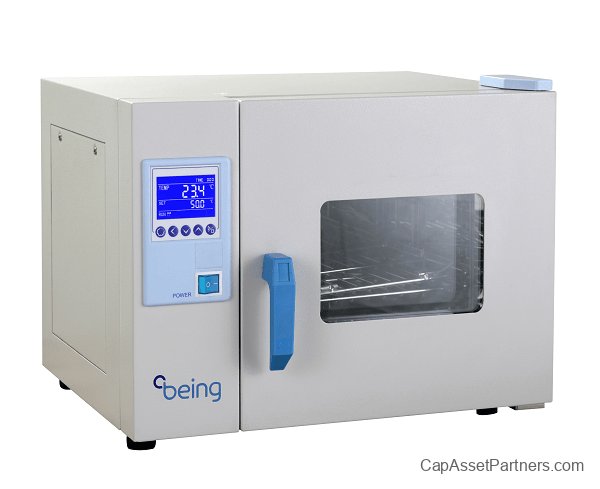

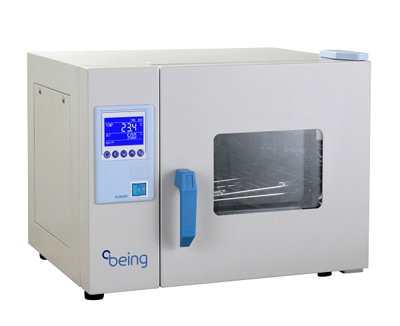

BIT Series Natural Convection Incubators
The BIT Series Natural Convection Incubators provide reliable temperature control and versatility for a broad spectrum of laboratory applications. Available in five sizes: 0.6 Cu ft, 1.3 Cu ft, 2.1 Cu ft, 4.3 Cu ft, and 8.1 Cu ft, these incubators are meticulously designed to meet the needs of various industries and protocols. The integrated BEING Controller ensures precision in temperature accuracy, engineering safety features that offer peace of mind to users.
Key Features
- P.I.D Temperature Controller: Provides accurate and consistent temperature management.
- Corrosion-Resistant Inner Chamber: Constructed from mirror stainless steel for enhanced durability.
- Easy-Clean Design: Features round curved inner angles for effortless cleaning.
- Anti-Skid Shelf Design: User-friendly operation permits single-handed access.
- Auto Start Feature: The incubator automatically resumes operation following power loss.
- Safety Alarms: Includes a temperature deviation alarm and over-temperature set-point alarm.
- Over Current Protection: Built-in alarm to safeguard equipment.
- Independent Over-Temperature Protection: Complies with DIN 12880 international standards for double safety.
- Variable Shelf Configurations: Each model offers a unique standard/max shelf capacity.
Specifications
| SKU |
# of Shelves |
Controller |
Temperature Stability |
Temperature Uniformity |
Type |
Shelf Capacity |
Max. # of Shelves |
Ambient Temperature Range |
| BH15155U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Natural Convection |
44.1 lb |
9 |
5°C to 80°C |
| BH15116U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Natural Convection |
44.1 lb |
5 |
5°C to 80°C |
| BH15135U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Natural Convection |
44.1 lb |
5 |
5°C to 80°C |
| BH151120U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Natural Convection |
44.1 lb |
12 |
5°C to 80°C |
| BH151200U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Natural Convection |
44.1 lb |
16 |
5°C to 80°C |
Additional Information
| SKU |
Model # |
Dimensions |
Access Port |
Internal Dimensions |
Certification |
Plug Type |
| BH15155U |
BIT-55 |
27.2 in x 18.4 in x 25.2 in |
5 mm |
15.8 in x 14.2 in x 15.0 in |
ETL |
NEMA 5-15 |
| BH15116U |
BIT-16 |
20.0 in x 15.0 in x 17.3 in |
5 mm |
10.6 in x 9.0 in x 10.2 in |
ETL |
NEMA 5-15 |
| BH15135U |
BIT-35 |
24.0 in x 20.5 in x 22.8 in |
5 mm |
12.6 in x 13.4 in x 13.0 in |
ETL |
NEMA 5-15 |
| BH151120U |
BIT-120 |
31.9 in x 23.2 in x 29.7 in |
5 mm |
20.5 in x 18.9 in x 19.3 in |
ETL |
NEMA 5-15 |
| BH151200U |
BIT-200 |
37.0 in x 25.9 in x 35.8 in |
5 mm |
25.6 in x 21.3 in x 25.6 in |
ETL |
NEMA 5-15 |
