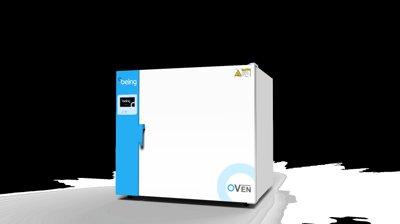

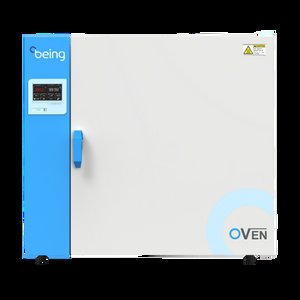

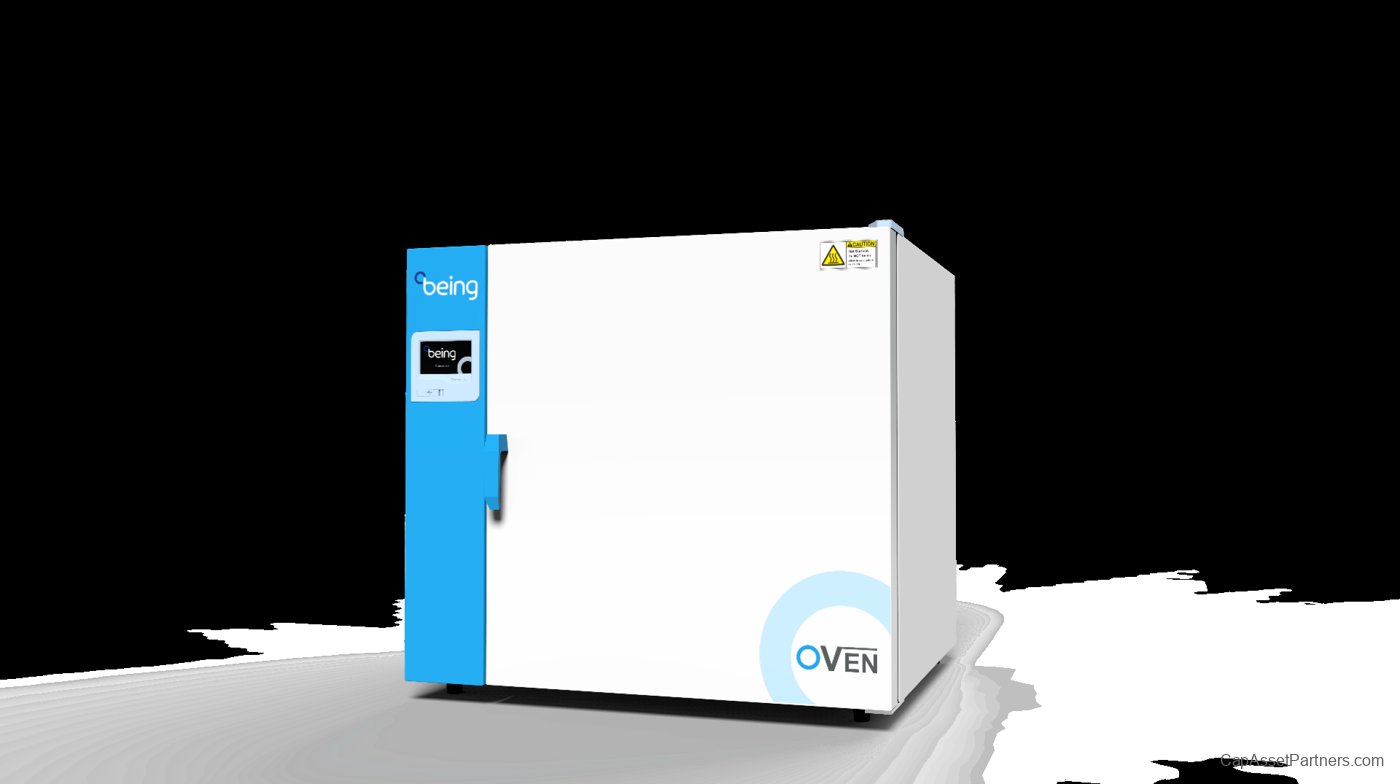

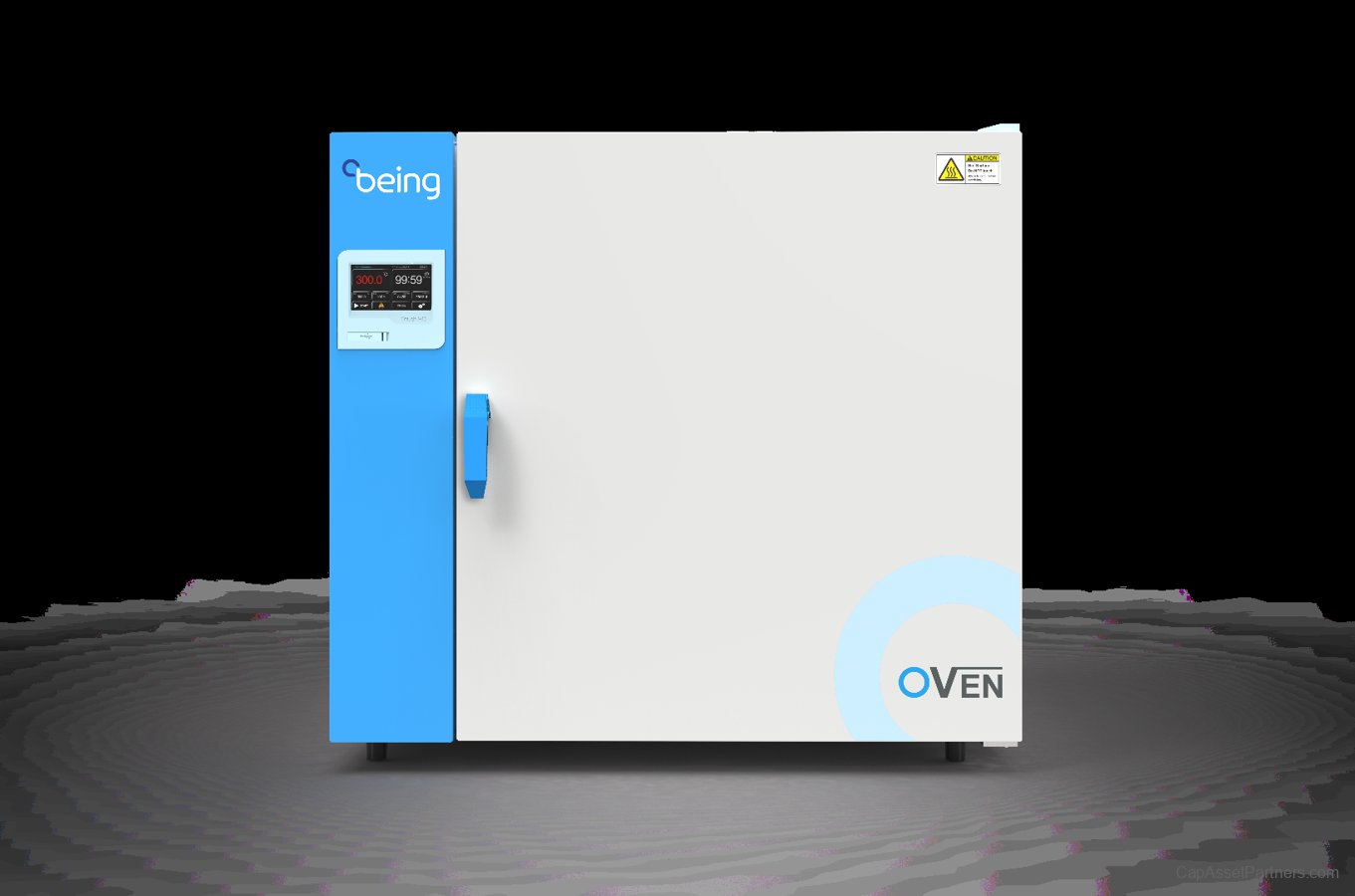

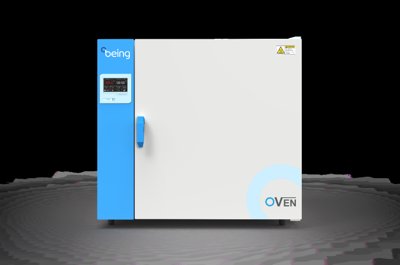

BONT Series Natural Convection Ovens, 30-211L

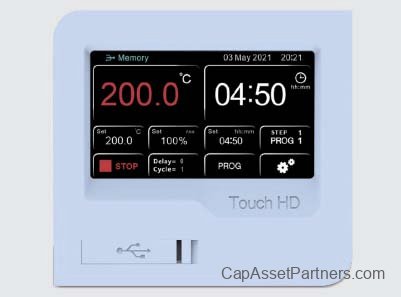

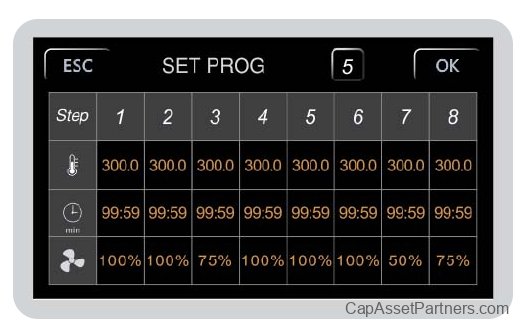

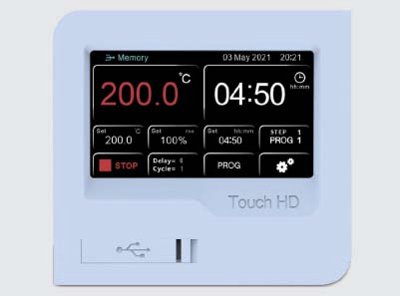

The BONT Natural Convection Drying Oven series redefines gentle drying and heating, making it an essential tool for sterilization, powder drying, and high-temperature storage. Equipped with a 4.3-inch touchscreen controller, these ovens assure rapid, accurate, and uniform heat distribution. Users are empowered with the ability to preset up to 7 periods and 9 steps, culminating in a total of 63 programs. The ovens facilitate simultaneous programming of temperature, time, and heating rate, enhancing operational efficiency and precision.
Key Features
- Temperature Range: Ambient +10°C to 300°C
- P.I.D. Temperature Controller: Ensures accurate and reliable temperature control
- Natural Convection Heating: Guarantees uniform sample temperature, ideal for various applications
- Extended Life Silicone Rubber Gasket: Provides excellent sealing and longevity, easily replaceable

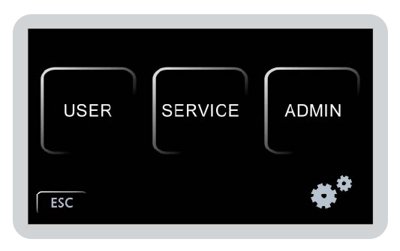

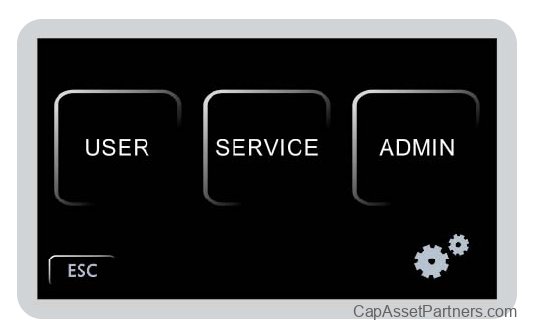

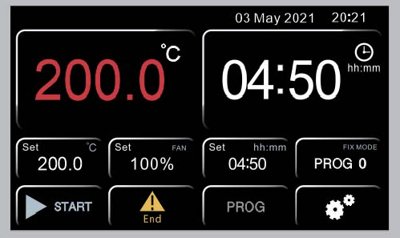

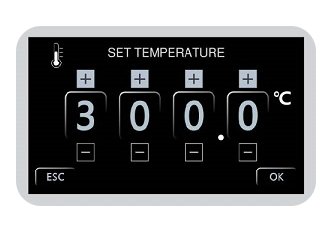

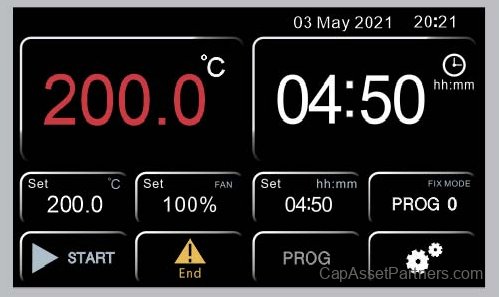

- Color Touchscreen Controller: User-friendly interface for effortless operation
Convenience
- Available in a variety of volumes: 30L to 211L
- Inner chamber constructed from corrosion-resistant mirror stainless steel for durability
- Round curved inner angles for easy cleaning

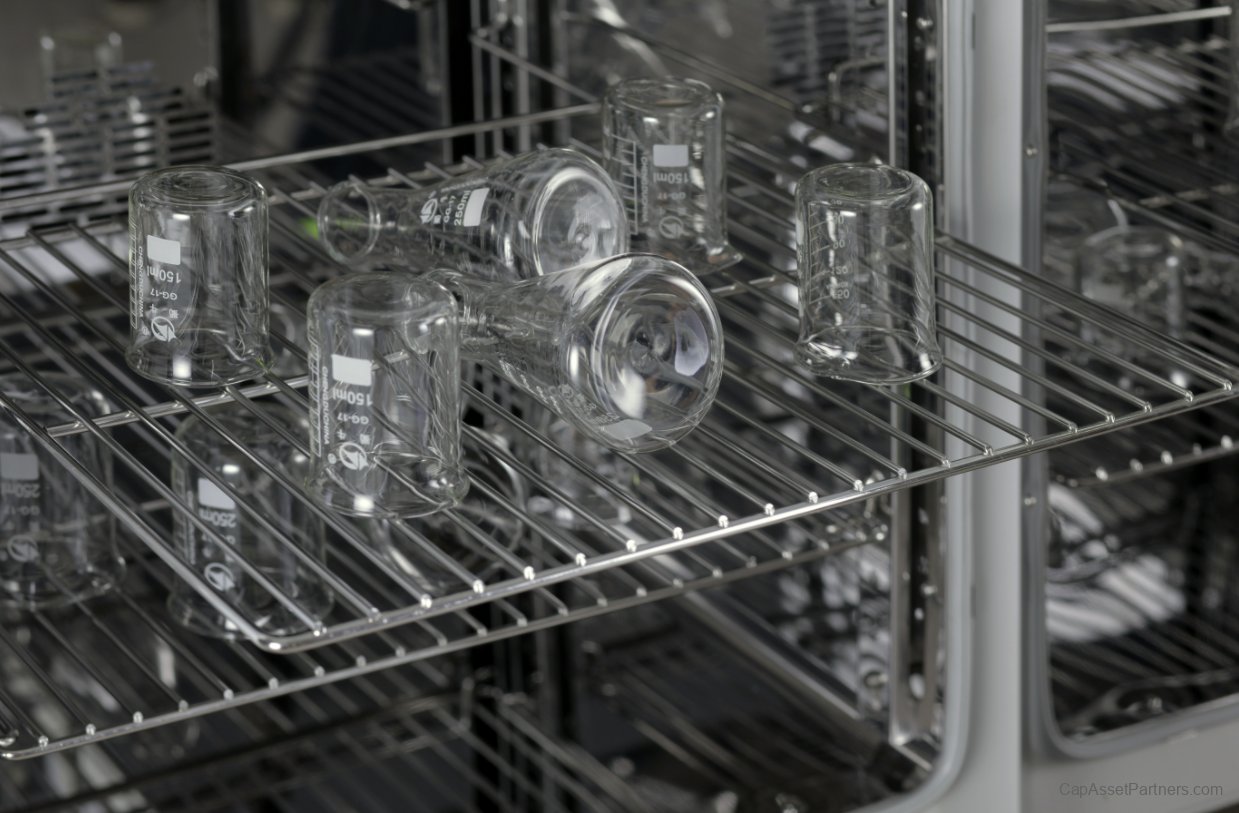

- Anti-skid shelf design ensures ease of operation with a single hand
Safety Features
- Auto Start Feature after power loss or return enhances reliability
- Temperature deviation alarm for proactive monitoring
- Over temperature set point alarm to prevent overheating
- Independent over temperature limit controller for enhanced safety
- Over-current alarm for added operational protection
Specifications
| SKU |
Temperature Stability |
Temperature Range |
Temperature Uniformity |
Power Requirement |
Wattage |
Display Resolution |
Time to Reach Temperature |
| BO211030U |
±0.5 |
Ambient +10°C to 300°C |
at 100°C ±3.0 |
110V, 1200W |
Consumption: 1200W |
0.1 |
Heated to 100°C: 40 min |
| BO211050U |
±0.5 |
Ambient +10°C to 300°C |
at 100°C ±3.0 |
110V, 1600W |
Consumption: 1600W |
0.1 |
Heated to 100°C: 40 min |
| BO211120U |
±0.5 |
Ambient +10°C to 300°C |
at 100°C ±3.0 |
110V, 1800W |
Consumption: 1800W |
0.1 |
Heated to 100°C: 40 min |
| BO211200C |
±0.5 |
Ambient +10°C to 300°C |
at 100°C ±3.0 |
220V, 2250W |
Consumption: 2250W |
0.1 |
Heated to 100°C: 40 min |
Additional Information
| SKU |
Internal Dimensions |
External Dimensions |
Certification |
Shelf Capacity |
Timer Range |
# of Shelves |
| BO211030U |
12.6 x 12.6 x 11.8 in |
24.0 x 22.8 x 20.5 in |
CSA |
Max: 20 Kg |
1 - 5999 mins |
2/ 5 Max. |
| BO211050U |
15.8 x 14.9 x 13.0 in |
27.1 x 25.2 x 18.4 in |
CSA |
Max: 20 Kg |
1 - 5999 mins |
2/ 6 Max. |
| BO211120U |
20.5 x 19.4 x 17.7 in |
31.9 x 23.2 x 29.7 in |
CSA |
Max: 20 Kg |
1 - 5999 mins |
2/ 10 Max. |
| BO211200C |
25.6 x 25.6 x 19.6 in |
37.0 x 25.9 x 35.8 in |
CSA |
Max: 20 Kg |
1 - 5999 mins |
2/ 16 Max. |
