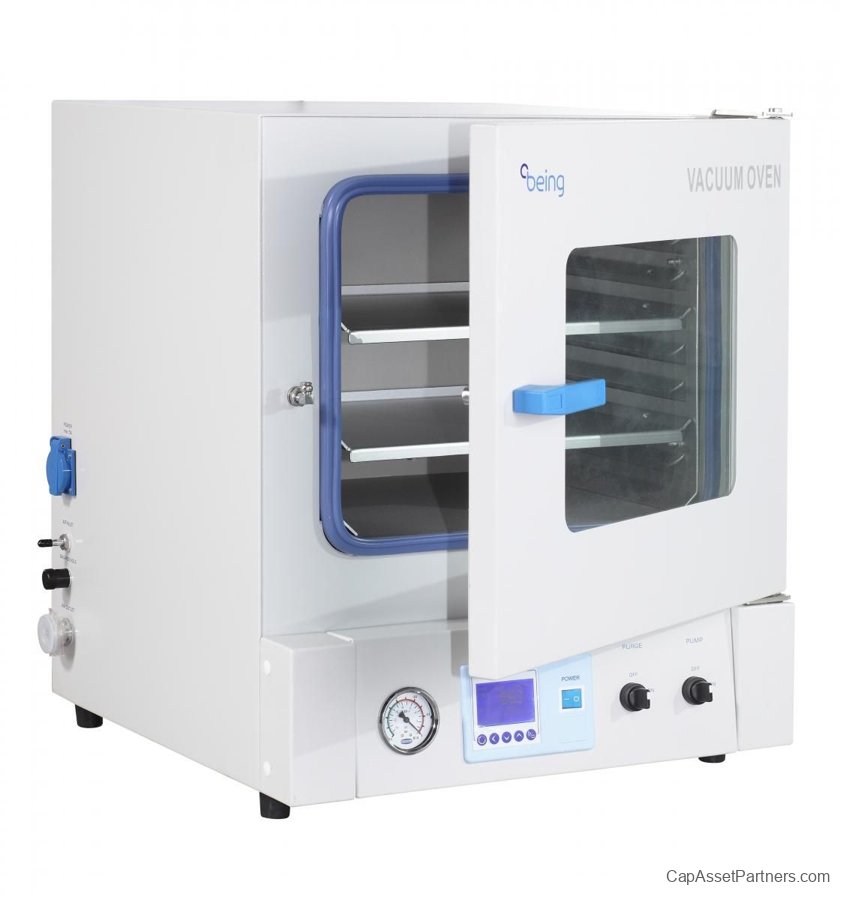

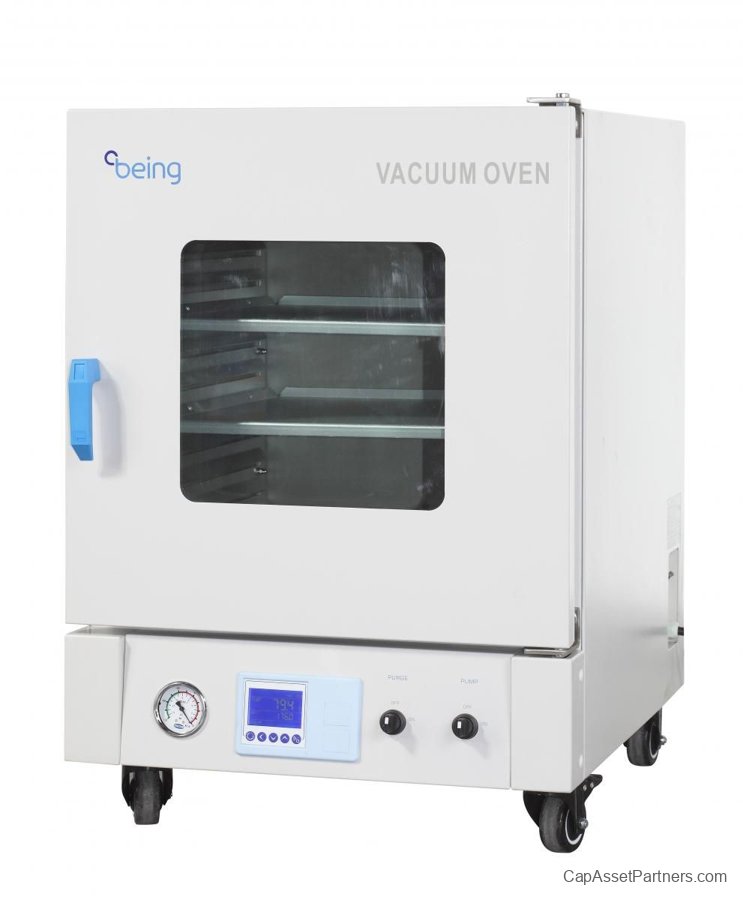

BOV Series Vacuum Ovens
The BOV Series Vacuum Ovens are engineered for precision and reliability, available in three distinct sizes: 0.9 Cu ft, 1.8 Cu ft, and 3.2 Cu ft. Ideal for laboratories and medical facilities, these ovens are designed to meet the stringent demands of various applications.
Key Features
- P.I.D Temperature Controller: Ensures accurate and dependable temperature management.
- Vacuum Range: 0-0.1MPa (limit vacuum 133Pa) for enhanced performance.
- Bundled Heating Technology: Promotes superior temperature uniformity across the inner chamber.
- Inert Gas Interface: Facilitates easy access to inert gases like nitrogen for various processes.
- LED Lighting: Provides clear visibility of the oven's interior conditions.
- Corrosion-Resistant Chamber: Made from high-quality mirror stainless steel for longevity and easy cleaning.
- Built-in Glass Door: Enables clear observation of samples without disrupting the vacuum.
- Independent Vacuum Interfaces: Features dedicated vents for optimal handling.
- Solenoid Valve: Controls the vacuum level and integrates with the vacuum pump effectively.
- Safety Alarms: Temperature deviation alarm and over-current protection alarm safeguard the equipment.
- Over-Heat Protection: Additional component ensures the longevity of your equipment.
- Independent Over-Temperature Limit Controller: Added safety measure for optimal operation.
- Adjustable Shelving: Accommodates various load requirements: BOV-20 (2/5), BOV-50 (2/7), BOV-90 (3/9).
Specifications
| SKU |
Max. # of Shelves |
Shelf Capacity |
Certification |
| BV15020U |
5 |
20 Kg |
ETL |
| BV15050U |
7 |
20 Kg |
ETL |
| BV15090C |
9 |
20 Kg |
ETL |
Dimensions and Warranty
| SKU |
External Dimensions |
Internal Dimensions |
Warranty |
| BV15020U |
17.5 x 24.4 x 22.8 inch (445 x 620 x 580 mm) |
11.8 x 10.8 x 11.8 inch (300 x 275 x 300 mm) |
2 years |
| BV15050U |
22.8 x 27.7 x 26.5 inch (580 x 705 x 675 mm) |
16.3 x 13.6 x 14.6 inch (415 x 345 x 370 mm) |
2 years |
| BV15090C |
24.0 x 31.8 x 31.6 inch (610 x 810 x 805 mm) |
17.7 x 17.7 x 17.7 inch (450 x 450 x 450 mm) |
2 years |
Important note: Not all items featured in product images are included; certain accessories may be sold separately.
