Manufactured by: BriskHeat

Category: Heating Tapes

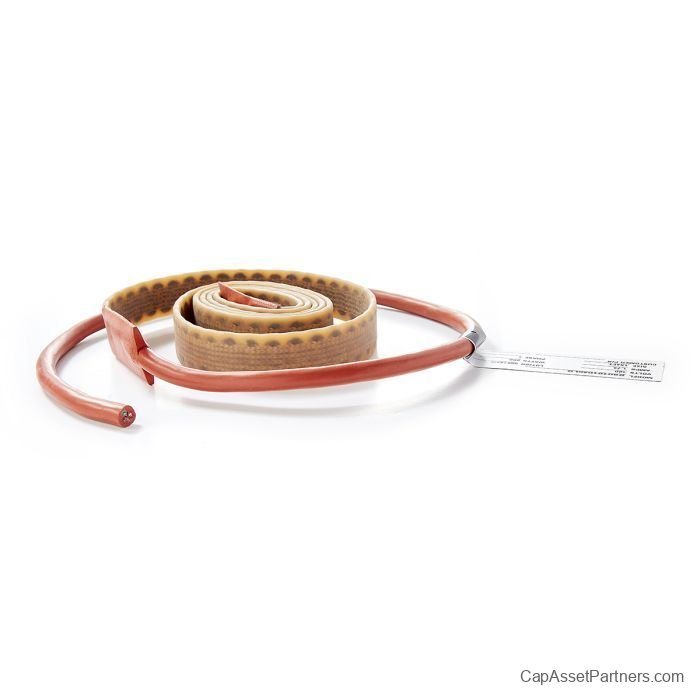

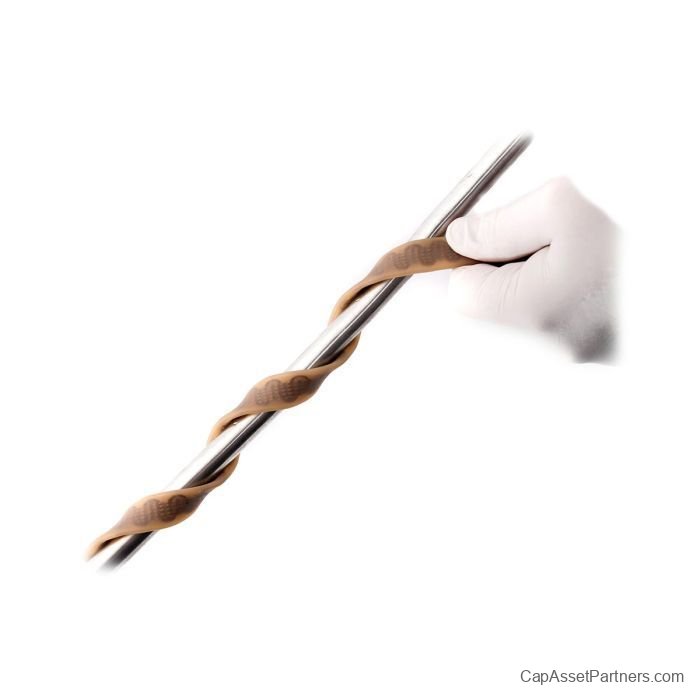

BriskHeat BS0-G Grounded Silicone Rubber Heating Tapes

BS0-G Grounded Silicone Rubber Heating Tapes

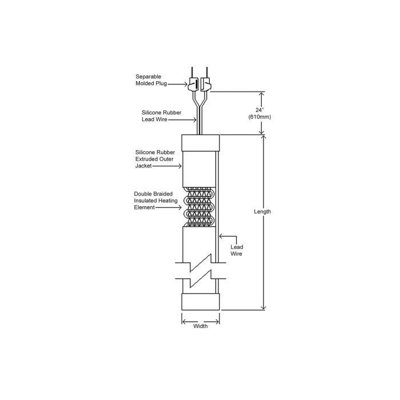

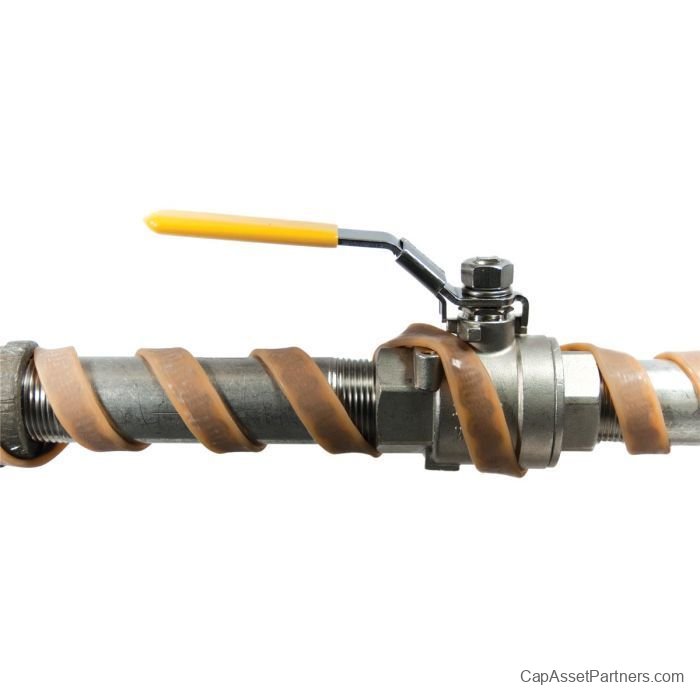

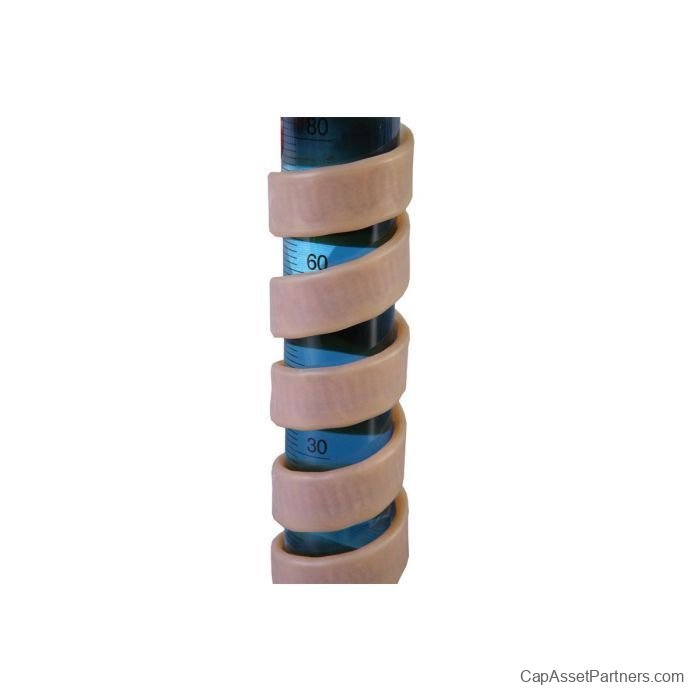

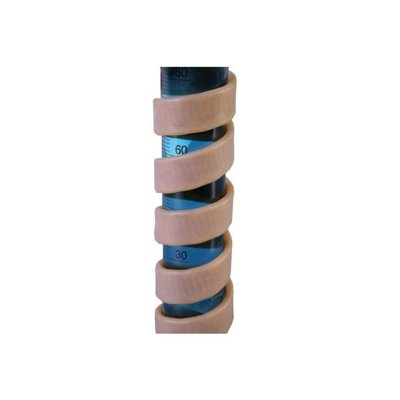

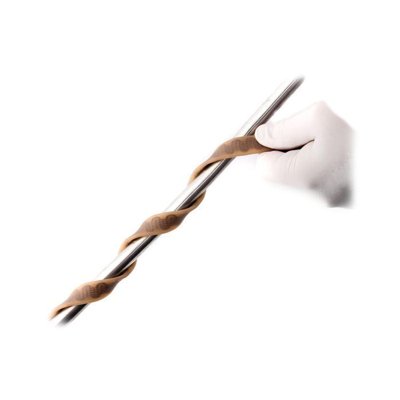

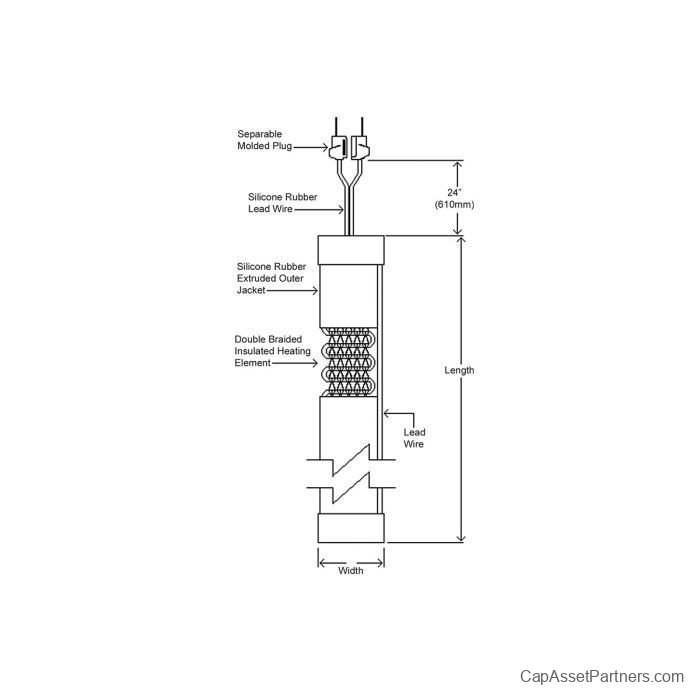

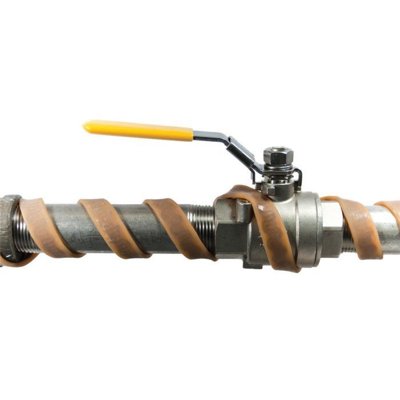

Engineered for laboratory heating applications, the BS0-G Grounded Silicone Rubber Heating Tapes provide versatile solutions for heating apparatus, gas tubing, temporary heat, valves, and more. Featuring a multi-stranded resistance wire heating element, these tapes offer outstanding flexibility and durability, encapsulated in a polyimide wrap to enhance dielectric insulation and ensure safety during use.

Important: A temperature controller is required for the safe operation of this product.

Key Features:

Maximum Exposure Temperature: Up to 450°F (232°C)

Material: Moisture and chemical-resistant silicone rubber

Surface Compatibility: Safe for use on glass and electrically conductive metal surfaces

Flexibility: Exceptional adaptability for a wide range of heating applications

Protection Rating: IP66 rated for moisture and chemical resistance

Thermal Performance: Rapid thermal response for efficient heating

Variety: Available in a wide range of sizes to meet your specific needs

Specifications:

SKU	Max Temperature	Density	Thickness
BS0101020LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0101040LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0101060LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0101080LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0101100LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0102020LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0102040LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0102060LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0102080LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)
BS0102100LG	450°F (232°C)	4.3 W/in² (0.7 W/cm²)	0.125 in (3 mm)

Additional Information:

SKU	Material	Certification	Lead Length	Wattage
BS0101020LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	104W
BS0101040LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	209W
BS0101060LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	313W
BS0101080LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	418W
BS0101100LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	522W
BS0102020LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	104W
BS0102040LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	209W
BS0102060LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	313W
BS0102080LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	418W
BS0102100LG	Silicone & Fiberglass	REACH, RoHS, CE, cRUus, IP66	2 ft (0.6 m)	522W
