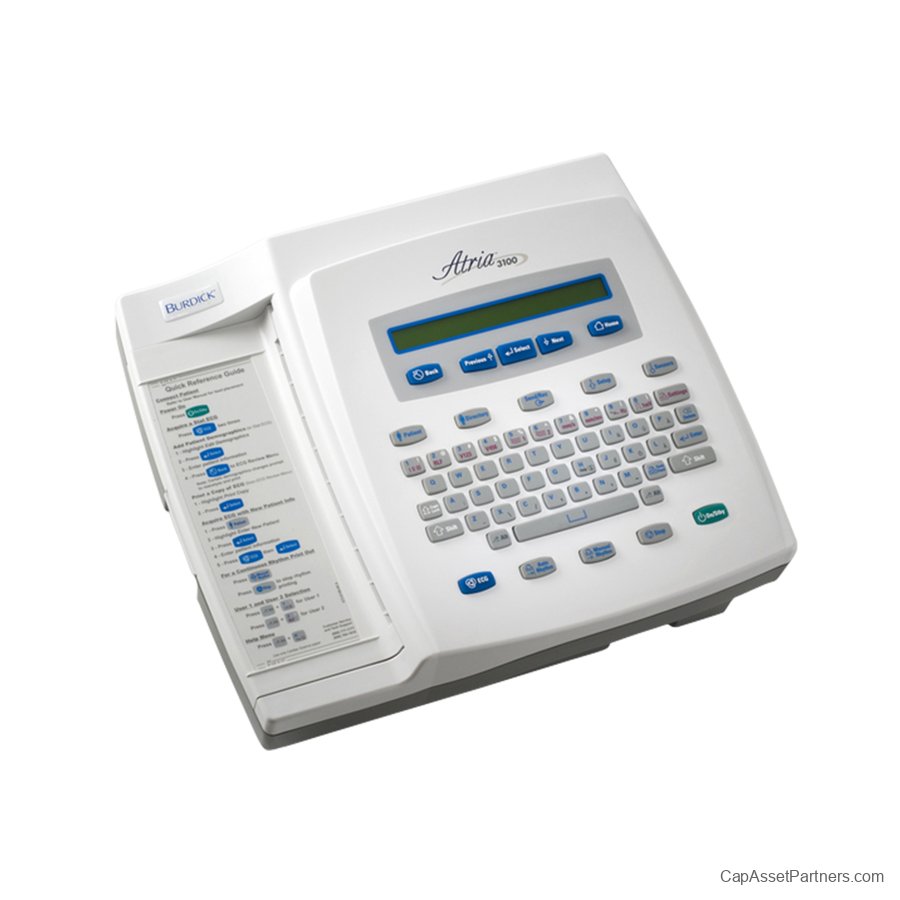

Burdick Atria 3100 ECG

Burdick Atria 3100 ECG: Compact Excellence in Cardiac Monitoring
The Burdick Atria 3100 ECG is a state-of-the-art electrocardiogram device that merges compact design with advanced performance. Engineered with the latest technology, this ECG unit ensures outstanding quality and accuracy, streamlining protocols to eliminate transcription errors and enhance overall workflow efficiency in clinical settings.

Key Features

• Storage Capacity: Easily stores up to 50 ECGs, allowing for efficient patient management.

• Flexible Printouts: Choose between manual or automatic printing options for 3-, 4-, 6-, and 12-lead ECGs, catering to diverse clinical needs.

• Connectivity Options: Equipped with wired Ethernet, wireless 802.11, and Bluetooth capabilities, all compliant with FAA standards for seamless data transmission.

• HeartCentrix Integration: Supports bi-directional communication with HeartCentrix connectivity software for optimized data handling.

• EMR Integration: Simplify workflow by downloading patient information directly from your electronic medical record (EMR) system, reducing errors and saving valuable time.

• Advanced Communication Tools: Enjoy cutting-edge connectivity options, including included Ethernet and optional wireless capabilities, ensuring you are well-equipped for any environment.

• Instant Results: Quickly review and edit test results directly from the patient’s chart, streamlining the decision-making process.

• AccuPrint Feature: This innovative function ensures ECG prints are only generated when lead wires are correctly attached, enhancing accuracy.

• Digital Record Management: Eliminate the challenges of manual filing by transmitting test results directly to your EMR, facilitating better organization and accessibility.

The Burdick Atria 3100 ECG is ideally suited for healthcare providers focused on precision and efficiency in cardiac monitoring. Experience the blend of functionality and advanced technology that this ECG unit brings to your practice.

Burdick Atria 3100 ECG Specifications

Attributes

• Height: 5.5 in (14 cm)

• Weight: 11 lb (5 kg, including external power supply)

• Length: 13.1 in (33.3 cm)

• Width: 15 in (38.1 cm)

• Data Storage: 50 records

• Network Connection: Wired - Wireless

Power Supply

• AC operation: 115/230 V AC ±10%, 50/60 Hz at external power source

• Battery operation: 14.4 V NiMH rechargeable battery pack

• Battery duration: 300 pages continuous printing without communications enabled

Printout

• Printout device: 216 mm thermal dot array

• Paper dimensions: 8.5 in x 11 in (US letter) or 210 mm x 300 mm (A4)

• Paper type: Thermal sensitive (Burdick Assurance or Heartline paper recommended)

• Chart speeds: 12.5, 25, 50 mm/sec

• Gain: 5, 10, 20 mm/mV (chest or limb; may be split)

• Printout formats: 3-, 4-, 6-, or 12-channel; additional rhythm formats

Acquisition

• Lead selection: Meets IEC 60601-2-51 I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6, V4R; supports Cabrera and alternate chest lead (V2R to V9R + V7, V8, V9)

• Pacemaker display capability: Meets or exceeds ANSI/AAMI EC11-1991

• A/D Conversion: 8,000 samples/second, 2.5 µV LSB RTI

Environmental

• Operating temperature: 50°F to 104°F (10°C to 40°C)

• Operating relative humidity: 20% to 90%, non-condensing

• Operating atmospheric pressure: 1060 hPa to 700 hPa (-500 ft to 10,000 ft reference to sea level)

• Storage temperature: -4°F to 115°F (-20°C to 45°C)

• Storage relative humidity: 10% to 90%, non-condensing
