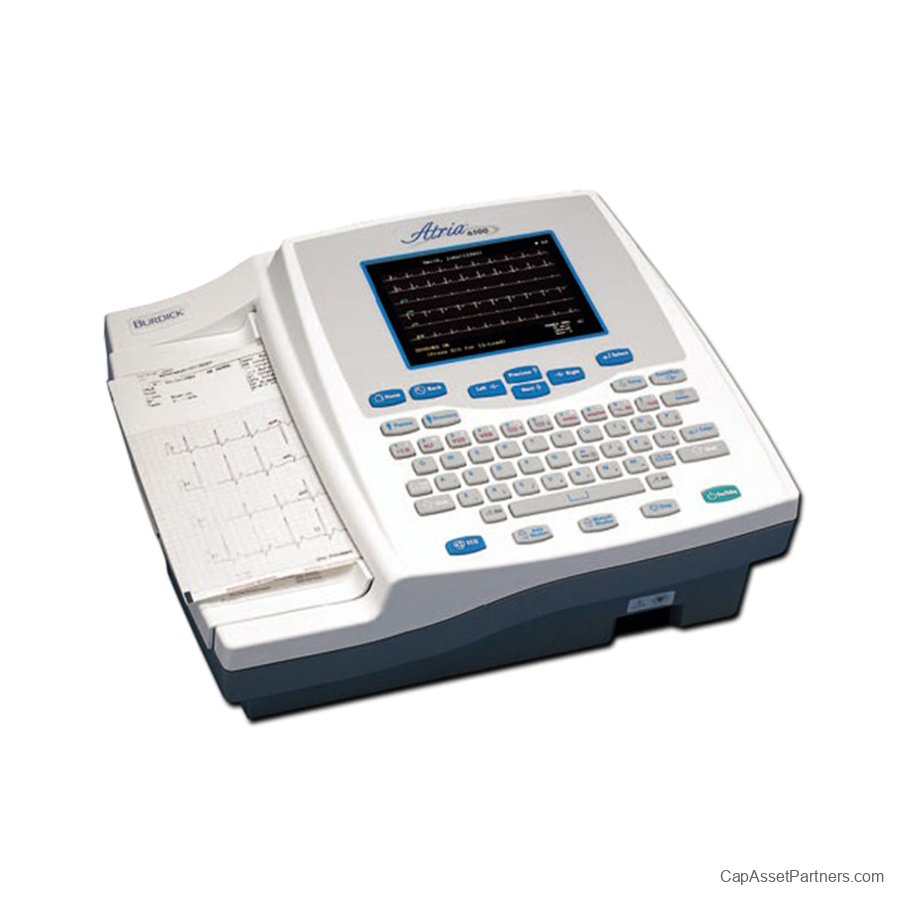

Burdick / Mortara Atria 6100 - ECG/EKG Machine

Burdick / Mortara Atria 6100

• ECG/EKG Machine

Experience the convenience and efficiency of the Burdick / Mortara Atria 6100, a highly user-friendly electrocardiogram system perfect for hospitals, physician offices, and cardiology clinics. Designed with a simple user interface and a vibrant color display, this ECG/EKG machine makes ECG waveform data easy to interpret, helping medical professionals enhance their workflow.
The Atria 6100 is engineered for performance, capable of storing up to 300 ECG records and integrating seamlessly with electronic medical record (EMR/HIS) systems. Its advanced connectivity options, including standard ethernet, wireless internet, and Bluetooth compatibility, allow for bi-directional communication with Mortara’s HeartCentrix connectivity solution, facilitating real-time data sharing and accessibility.

Key Features:

• User-Friendly Design: The standard keyboard, dedicated function keys, large color monitor, and intuitive menu interface ensure ease of use, even in high-pressure environments.

• Pediatric Analysis Tool: This model includes specialized tools for pediatric ECG analysis, accommodating patients as young as one day old.

• Pacemaker Compatibility: The Atria 6100 recognizes and accommodates patients with pacemakers, making it versatile for various patient needs.

• AccuPrint Feature: The innovative AccuPrint feature minimizes errors by restricting ECG printing when lead wires are not properly attached, ensuring consistently clear and accurate printouts every time.

• Compact and Portable: With its lightweight design, the Atria 6100 is perfect for use in various settings, easily fitting into nearly any space while still providing high-quality 3-, 4-, 6-, and 12-lead ECG printouts, conducted either manually or automatically.

Elevate your practice with reliable and efficient cardiac monitoring using the Burdick / Mortara Atria 6100 ECG/EKG Machine, designed to support healthcare professionals in providing top-quality patient care.

Burdick / Mortara Atria 6100

• ECG/EKG Machine Specifications

Network Connection

• Wired: 10/100 MBPS Ethernet via RJ45

• Wireless: 802.11g (compatible with 802.11b networks)

• Security options: WEP (64/128 bit), WPA/WPA2 (Personal and Enterprise, including AES), EAP-TLS, PEAP/MSCHAPv2, LEAP, RADIUS servers (including Microsoft IAS, Cisco ACS and Cisco Aironet 1200)

• Roaming across WAPs of various configurations and support for mixed 802.11/Ethernet networks

Power Requirements

• AC Operation: 115/230 V AC ±10%, 50/60 Hz at external power source

• Battery Operation: 14.4 V NiMH rechargeable battery pack

• Battery Duration: 300 pages continuous printing without communications enabled

Printout

• Printout Device: 216 mm thermal dot array

• Paper Dimensions: 8.5 in x 11 in (US letter) or 210 mm x 300 mm (A4)

• Paper Type: Thermal sensitive (Burdick Assurance® or Heartline™ paper recommended)

• Chart Speeds: 12.5, 25, 50 mm/sec

• Gain: 5, 10, 20 mm/mV chest or limb (may be split)

• Printout Formats: 3-, 4-, 6-, or 12-channel; additional rhythm formats

Acquisition

• Lead Selection: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6, V4R; supports Cabrera and alternate chest lead (chest lead selection V2R thru V9R + V7, V8, V9)

• Measurement (standard), Interpretation (optional): Diagnosis, measurements and reason statements based on five demographic criteria

• Pacemaker Display Capability: Meets or exceeds ANSI/AAMI EC11-1991

• Modes: Automatic, rhythm or manual

• Frequency Response: Meets or exceeds ANSI/AAMI EC11-1991 standard

• Input Impedance: Meets or exceeds ANSI/AAMI EC11-1991 standard

• Electrodes Offset Tolerance: ±300 mV

• A/D Conversion: 8,000 samples/second, 2.5 ?V LSB RTI

• Artifact Filter Response: 40 Hz, -3 dB

• Data Storage Resolution: 500 samples/second, 2.5 ?V LSB RTI

Safety

• Leakage Current: Patient < 10 ?A, chassis < 100 ?A

• Defibrillation Protection: to 5000 V, 360 J

Safety Standards

• ANSI/AAMI EC11-1991

• UL 60601-1

• CAN/CSA C22.2 no. 0-M91

• EN 60601

• CAN/CSA C22.2 no. 601.1S1

• EN 60601-1-2:2001

• CAN/CSA C22.2 no. 601.2.25, Amend. 1

• EN 60601-2-51:2003

• CAN/USA C22.2 no. 601.1-M90

• EN 60601-1-4:2000

Display

• Color LCD; 640 x 480

Keyboard

• Full alphanumeric keypad plus designated quick keys

Environmental

• Operating Temperature: 50°F to 104°F (10°C to 40°C)

• Operating Relative Humidity: 20% to 90%, non-condensing

• Operating Atmospheric Pressure: 1060 hPa to 700 hPa (-500 ft to 10,000 ft reference to sea level)

• Storage Temperature: -4°F to 115°F (-20°C to 45°C)

• Storage Relative Humidity: 10% to 90%, non-condensing

• Storage Atmospheric Pressure: 1060 hPa to 190 hPa (-500 ft to 40,000 ft reference to sea level)

Dimensions (H x D x W)

• 5.5 in x 13.125 in x 15.0 in (14.0 cm x 33.4 cm x 38.1 cm)

Weight

• 11 lb (5 kg) (including external power supply)
