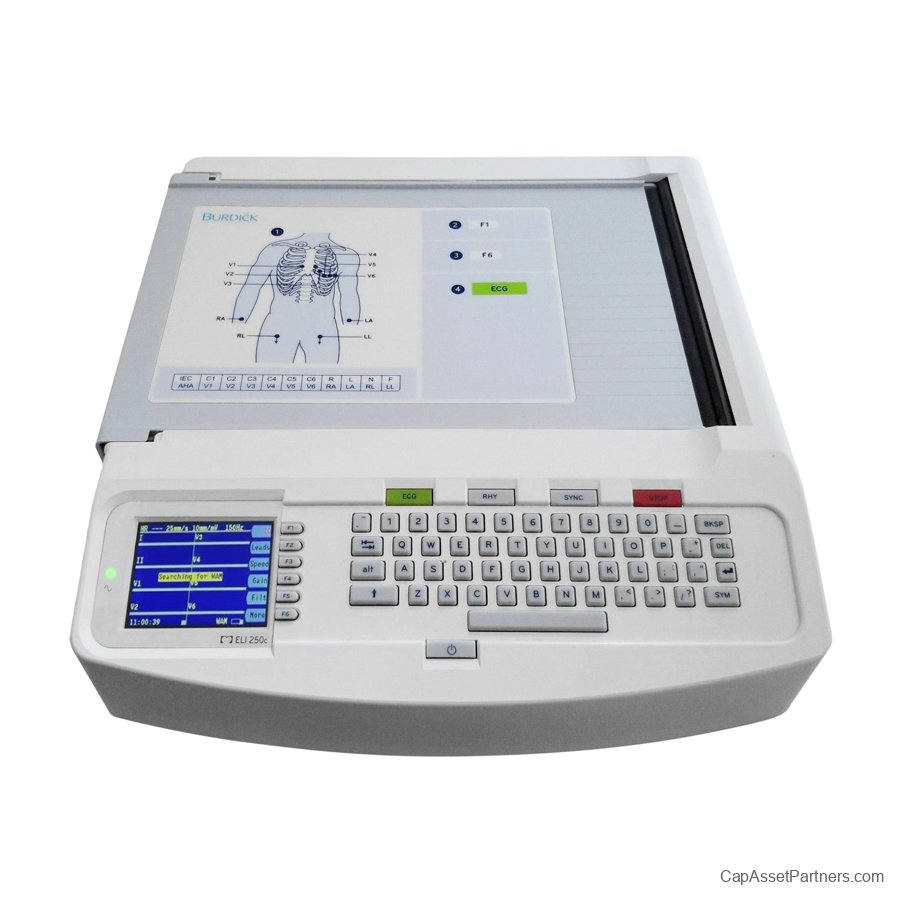

Burdick / Mortara ELI 250c EKG Machine

Burdick / Mortara ELI 250c EKG Machine

• Your Solution for Accurate ECG Monitoring

Discover the Burdick / Mortara ELI 250c EKG Machine, a user-friendly and highly functional electrocardiograph designed for healthcare professionals. Its compact and lightweight design makes it ideal for a variety of settings, including primary care, cardiology, family practice, and hospitals.
Elevate your ECG monitoring with the ELI 250c's stunning high-resolution color display, offering clear visibility of waveforms. With the ability to capture up to 12-leads of valuable data, this portable ECG machine streamlines the monitoring process.
Key Features:

• Comprehensive Functionality: This portable device is designed for ease of use while providing in-depth ECG analysis.

• High-Resolution Color Display: Enjoy crisp visuals of cardiac waveforms with options for 3, 6, 8, or 12-lead displays.

• Advanced Data Capture: With a high data acquisition rate of 1,000 samples per second (sps) per channel and up to 40,000 sps for pacemaker spike detection, the ELI 250c ensures superior signal quality for accurate diagnosis.

• Best 10 Feature: The innovative Best 10 function automatically selects and showcases the best 10 seconds of ECG data, minimizing the need for repeat ECGs and optimizing workflow efficiency.

• Error Prevention Indicators: The included chest and limb lead reversal indicators help clinicians quickly identify potential errors during the acquisition process.

• Flexible Data Transfer Options: Multiple options are available to facilitate seamless patient data transfers to your desired location, enhancing accessibility and efficiency.

Experience the convenience and reliability of the Burdick / Mortara ELI 250c EKG Machine—perfect for enhancing patient care and streamlining your practice. Make informed decisions in real-time and improve clinical outcomes with this advanced ECG solution.

Burdick / Mortara ELI 250c EKG Machine Specifications

• Instrument Type: 12-lead electrocardiograph

• Input Channels: Simultaneous acquisition of all 12 leads

• Standard Leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6

• Waveform Display: Backlit, 1/4 VGA color LCD (320 x 240); 3, 4+4, or 6+6 lead presentation

• Input Impedance / Input Dynamic Range / Electrode Offset / Tolerance / Common Mode Rejection: Meets or exceeds the requirements of ANSI/AAMI EC11

• Patient Leakage Current / Chassis Leakage Current: Meets or exceeds the requirements of ANSI/AAMI ES1

• Digital Sampling Rate: 40,000 s/sec/channel used for pacemaker spike detection; 1000 s/sec/channel used for recording and analysis

• Optional Functions: VERITAS resting ECG interpretation algorithm with age and gender specific criteria; connectivity with bidirectional communication

• Paper: Perforated Z-fold thermal paper, A4 (210 x 297 mm) or 8.5 x 11” (215.9 x 279.4 mm) wide, 250 sheets

• Thermal Printer: Computer-controlled dot array; 1 dot/ms horizontal, 8 dots/mm vertical

• Gain Settings: 5, 10, or 20 mm/mV

• Report Print Formats: Standard or Cabrera: 3+1, 3+3, 6, 6+6, or 12 channel

• Rhythm Print Formats: 3, 6, or 12 channel with configurable lead groups

• Keyboard: Elastomer keyboard with complete alphanumeric keys, soft-key menu, and dedicated function keys

• Frequency Response: 0.05 to 300 Hz

• Filters: High-performance baseline filter; AC interference filter 50/60 Hz; low-pass filters 40 Hz, 150 Hz, or 300 Hz

• A/D Conversion: 20 bits (1.17 microvolt LSB)

• Device Classification: Class I, Type CF defibrillation-proof applied parts

• ECG Storage: Internal storage up to 40 ECGs; optional expanded up to 200 ECGs

• Weight: 11.25 lbs (5.1 kg) including battery (without paper)

• Dimensions: 15.5 x 17 x 4” (39.4 x 43.2 x 10.2 cm)

• Power Requirements: Universal AC power supply (100-240 VAC at 50/60 Hz), 110 VA; internal rechargeable battery
