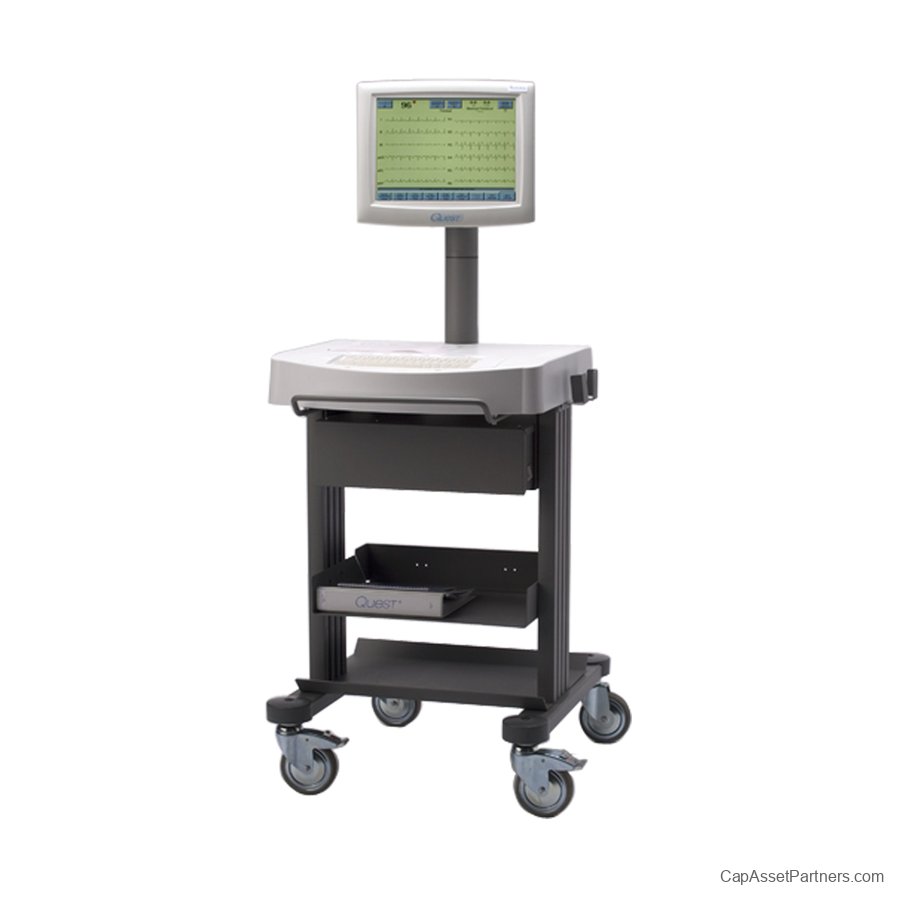

Burdick Quest Cardiac Stress Testing System

Product Description: Burdick Quest Cardiac Stress Testing System
Introducing the Burdick Quest Cardiac Stress Testing System, a cutting-edge solution designed to enhance patient throughput in clinical environments. This user-friendly system features a simple, touch-based interface that guides users through each phase of stress testing using Burdick's innovative Logistep guide. With its intuitive design, users can easily navigate the test process without the hassle of searching for the right controls.
Equipped with a large 15” color monitor, the Burdick Quest System provides instant access to important data, displaying ECG readings in 3, 4, or 6 channels for detailed review and analysis. The system supports resting 12-lead ECGs and exercise stress tests, ensuring that healthcare professionals have the tools they need for comprehensive cardiac assessments.
The Burdick Quest System boasts 11 standard pre-programmed protocols and allows for flexible programming, empowering users to select the most appropriate test routine. To ensure the highest quality ECG tracings, the system effectively eliminates non-cardiac electrical noise and baseline wander. Additionally, it offers multiple report configurations and has generous storage options for efficient data management.
Key Features:

• User-Friendly Interface: Control the system effortlessly with a vivid 15” touch display.

• Comprehensive Test Management: Perform both resting and exercise stress tests with ease.

• Guided Testing: The Logistep guide highlights the next steps, simplifying the testing process.

• Accurate Data Capture: The system significantly reduces electrical interference for precise ECG results.

• Customizable Reporting: Choose from over 15 different report configurations tailored to your needs.

• Robust Data Management: Ample storage space ensures that all test data is securely managed.

Elevate your cardiac testing capabilities with the Burdick Quest Cardiac Stress Testing System, where advanced technology meets user-centric design.

Burdick Quest Cardiac Stress Testing System Specifications

Size

• Dimensions: 60" x 25" x 34" (152 cm x 63 cm x 86 cm)

• Weight: 170 lbs (78 kg)

Monitor

• Type: 15" high-resolution color with integrated touchscreen

• Mount: User-adjustable tilt (±15°) and swivel (±90°)

• Content: 3, 4, or 6 ECG channels, real-time information and alphanumeric data

• Displayed Leads: User-selectable during a test (3-, 4-, and 6-channel); waveform display: 8 seconds per lead in 3-channel mode

Keyboard

• Main Keyboard: QWERTY layout

• Ergometer Control: Dedicated keys for ergometer speed, grade, start, and stop

Input/Output

• Digital I/O: RS-232 interfaces for treadmill and bicycle ergometer; optional automatic blood pressure monitor; TTL pulse for QRS detection, 50 msec delay

• Analog Output: 4 user-selectable outputs

Standard Interfaces Optional

• Network: Ethernet 10baseT for full disclosure report storage and export using HL7 protocol or XML

• Removable Media: Zip drive for full-disclosure test storage (compatible with 100 MB and 250 MB disks)

Power

• Power Requirements: 115/230V AC ±10%, 2.5/1.25 A, 50/60 Hz, nominal 300 VA max

Chart Recorder

• Paper Type: Pre-grided thermal paper, Z-fold, 8.5" x 11" (US letter) or 210 mm x 300 mm (A4)

• Printout Device: 216 mm thermal dot array

• Paper Speed: 10, 25, 50 mm/sec ±2%

• Printing Options: Multiple format ECG waveform and alphanumeric printing, diagnostic quality

• Gain: 5, 10, 20 mm/mV ±5%

• Frequency Response: 0.05 Hz to 150 Hz ±10%

• Muscle Artifact Filter: User-selectable: Off, 20 Hz or 40 Hz

• Baseline Filter: User-selectable: Off, 0.12 Hz or STABLE (meets/exceeds 1990 AHA recommendations)

• Calibration Signal: 1.0 mV for 200 msec ±5%

ECG Computations

• Heart Rate Computation: 8-beat average, 30 bpm to 250 bpm, updated every second

• ST Measurements: 20 sec moving window with 10 sec updates to the display and reports

• ST Parameters: Level, slope for 12 leads simultaneously

• QRS Detection Channels: II, V2, and V5 with switching

• Ectopic Detection: Ventricular arrhythmias, unclassified

• ST Reference: User-selectable (E-point, J-Junction, ST point)

Protocols

• Preprogrammed: Manual, Bruce, Modified Bruce, Balke, Naughton, Ellestad, Kattus, Ramp, Astrand

• User-defined: 20 protocols with up to 30 stages each, plus Warmup and Recovery phases

Patient Module

• Dimensions: 1.3" x 4.3" x 3.8" (3.3 cm x 10.92 cm x 9.65 cm)

• Weight: <1 lb (0.5 kg)

• Frequency Response: 0.05 Hz to 150 Hz, ±10% to -30%

• Defibrillation Protection: To 360 J, 5 kV

• Common Mode Rejection: >120 dB at 60 Hz

• Electrode Offset Tolerance: ±300 mV

• Line Frequency Filters: User-selectable 50 Hz, 60 Hz, or off

• Noise: <30 µVpp

• Pacemaker Pulse Indication: Per EC13

• Input Channels: Simultaneous acquisition of 8 leads plus 4 derived leads

• Defibrillation Recovery: Max recovery time of 8 seconds

• Patient Connection: 10 replaceable leads

Exercise Stress Reports

• During Exercise: 12-lead or Average Complex with trend graphs (HR/BP, Single-lead ST, etc.)

• Final Report: User-selectable summary in tabular or narrative format

• Comments: Selectable, user-defined

• Configurations: Up to 5 user-defined configurations with final reports

Ergometer Interface

• Treadmill: Dedicated 110V 20 amp plug and serial RS-232C interface for TM55 or TM65; compatible with Burdick-supported bicycle ergometer

Ergometer Control

• Control Modes: Automatic or manual; displays workload in METs, treadmill grade (%) or speed (mph/kmh), and bike workload (watts), speed (rpm)

Environmental Specifications

• Operating Temperature: 50°F to 104°F (10°C to 40°C)

• Relative Humidity: 15% to 95% non-condensing

• Atmospheric Pressure: 525 mmHg to 795 mmHg (700 hPa to 1060 hPa)

Conforms to Standards

• Standards: EN60601-1-1; IEC 601-2-25; EN60601-1-2; ANSI/AAMI EC11, 1991

Safety

• Type: IEC 601-1 Type CF Defibrillator Proof
