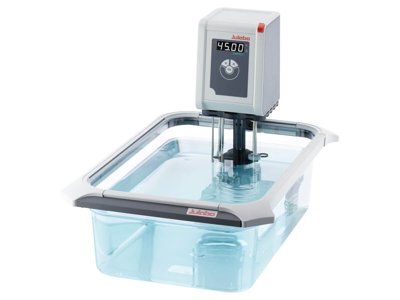

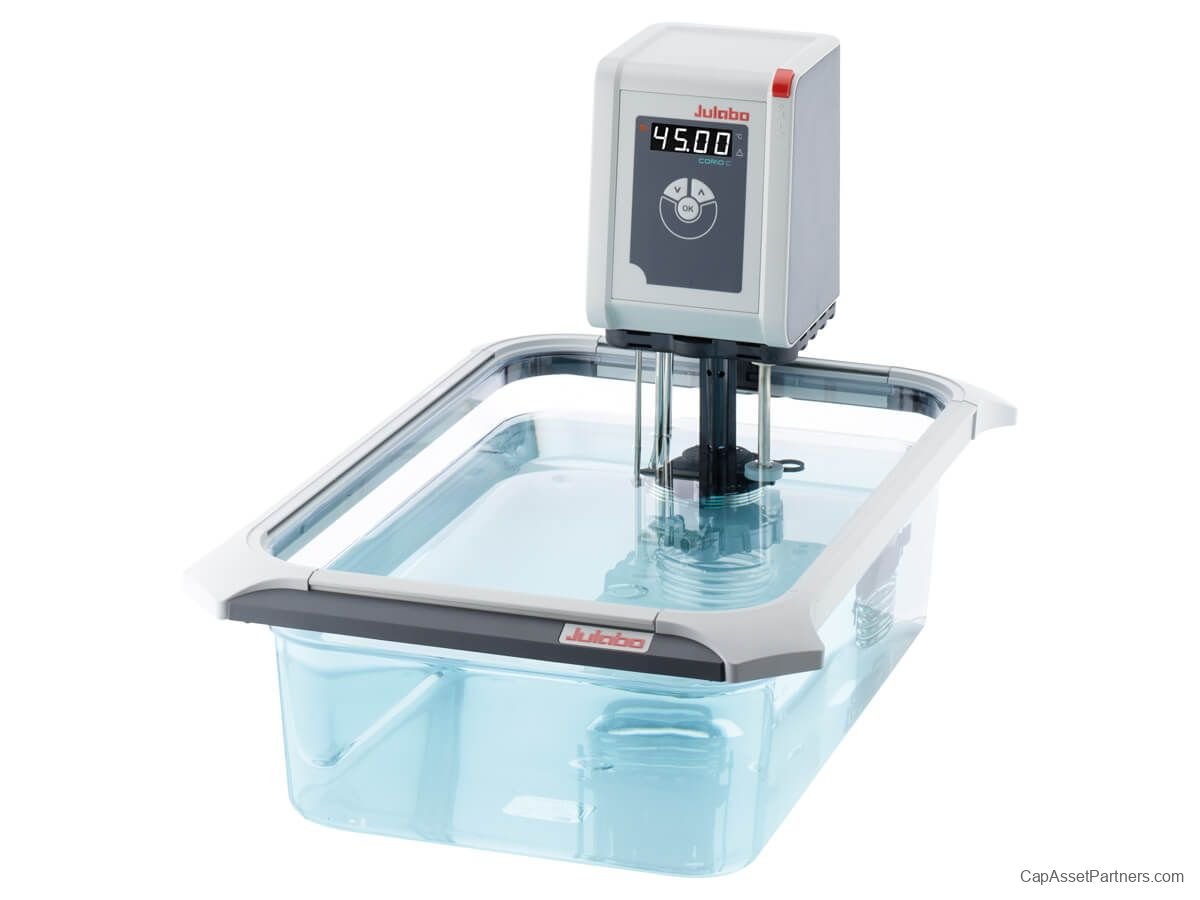

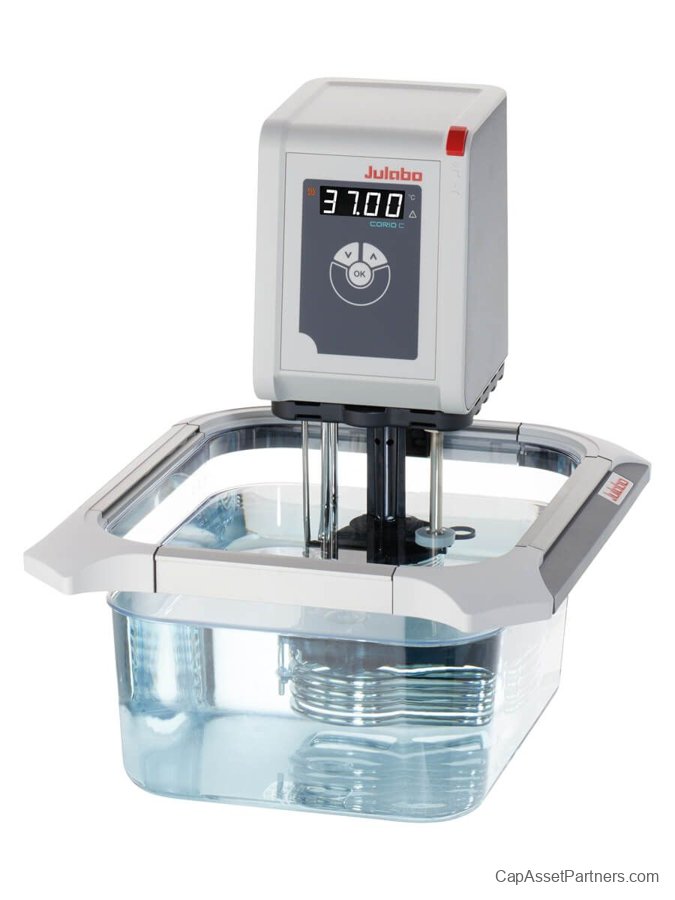

C-BT Series Heating Bath Circulators
Discover the cutting-edge C-BT Series Heating Bath Circulators, designed for precision and reliability in laboratory applications. These open heating bath circulators feature high-quality transparent bath tanks that ensure optimal performance and visibility.
Key Features
- Models specifically designed for internal applications.
- Bright, white display for clear readability in any environment.
- Exceptional quiet operation for minimal disruption during use.
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Filling Volume |
Heating Capacity |
Flow Rate |
Flow Pressure |
Water Bath Dimensions |
Voltage |
Heaters |
| 9011305.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
3.5 to 5 L |
1kW |
6 L/Min |
1.45 psi |
5.9 x 5.9 / 5.9 in |
100-115V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011305.33 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
3.5 to 5 L |
2kW |
6 L/Min |
1.45 psi |
5.9 x 5.9 / 5.10 in |
230V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011309.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
6 to 9 L |
1kW |
6 L/Min |
1.45 psi |
9 x 5.9 / 5.9 in |
|
1kW @ 115V (2kW @ 230V) |
| 9011309.33 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
6 to 9 L |
2kW |
6 L/Min |
1.45 psi |
9 x 5.9 / 5.9 in |
230V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011319.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
14 to 19 L |
1kW |
6 L/Min |
1.45 psi |
11.8 x 13.7 / 5.9 in |
100-115V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011319.33 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
14 to 19 L |
2kW |
6 L/Min |
1.45 psi |
11.8 x 13.7 / 5.10 in |
230V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011327.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
20 to 27 L |
1kW |
6 L/Min |
1.45 psi |
11.8 x 13.7 / 7.8 in |
100-115V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011327.33 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
20 to 27 L |
2kW |
6 L/Min |
1.45 psi |
11.8 x 13.7 / 7.8 in |
230V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
Dimensions |
| 9011305.22 |
48 lb |
20 x 20 x 20 in |
PID temperature control |
0.1 °C |
LED |
9.1 x 15 x 15 in |
| 9011305.33 |
48 lb |
21 x 20 x 20 in |
PID temperature control |
0.1 °C |
LED |
9.1 x 15 x 15 in |
| 9011309.22 |
106 lb |
20 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
12.6 x 15 x 14 in |
| 9011309.33 |
106 lb |
20 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
12.6 x 15 x 14 in |
| 9011319.22 |
106 lb |
22 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 |
| 9011319.33 |
106 lb |
22 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 |
| 9011327.22 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 |
| 9011327.33 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 |
