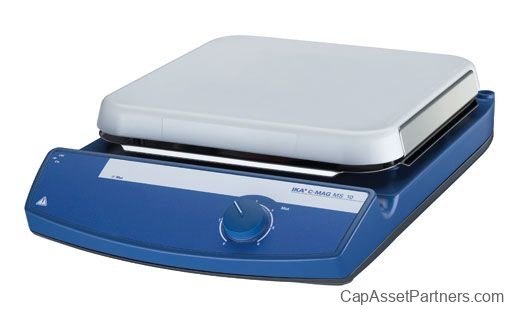

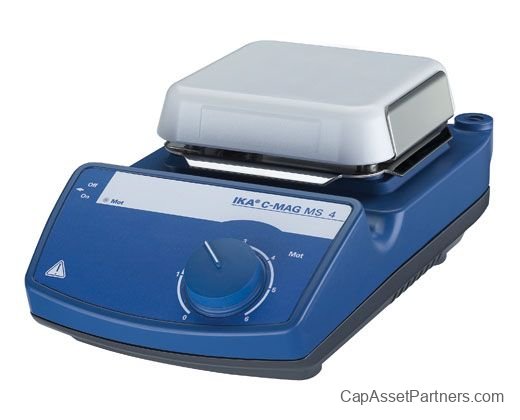

C-MAG MS Magnetic Stirrers
The C-MAG MS Magnetic Stirrers are designed for efficient and reliable stirring without heating, making them the ideal choice for laboratory environments. Each unit is equipped with a robust ceramic set-up plate, offering excellent chemical resistance and ensuring durability in harsh conditions. Below are the key features and specifications of the C-MAG MS Magnetic Stirrers:
Key Features:
- Powerful Stirring: Equipped with a powerful motor for effective stirring across various applications.
- Elevated Control Panel: The elevated control panel provides protection against accidental splashes and spills, ensuring safe operation.
Technical Specifications:
| Plate Size |
Ident. No. 3582201: 4” x 4” |
Ident. No. 3582401: 7” x 7” |
Ident. No. 3582601: 10” x 10” |
| Number of Stirring Positions |
1 |
1 |
1 |
| Max Stirring Quantity (H2O) [l] |
5 |
10 |
15 |
| Motor Rating Input [W] |
15 |
15 |
15 |
| Motor Rating Output [W] |
1.5 |
1.5 |
1.5 |
| Speed Range [1/min] |
100 - 1500 |
100 - 1500 |
100 - 1500 |
| Speed Control Scale |
0-6 |
0-6 |
0-6 |
| Fixed Safety Circuit [°C] |
550 |
550 |
550 |
| Set-Up Plate Material |
Ceramic |
Ceramic |
Ceramic |
| Set-Up Plate Dimensions [mm] |
120 x 120 |
200 x 200 |
280 x 280 |
| Permissible Ambient Temperature [°C] |
5-40 |
5-40 |
5-40 |
