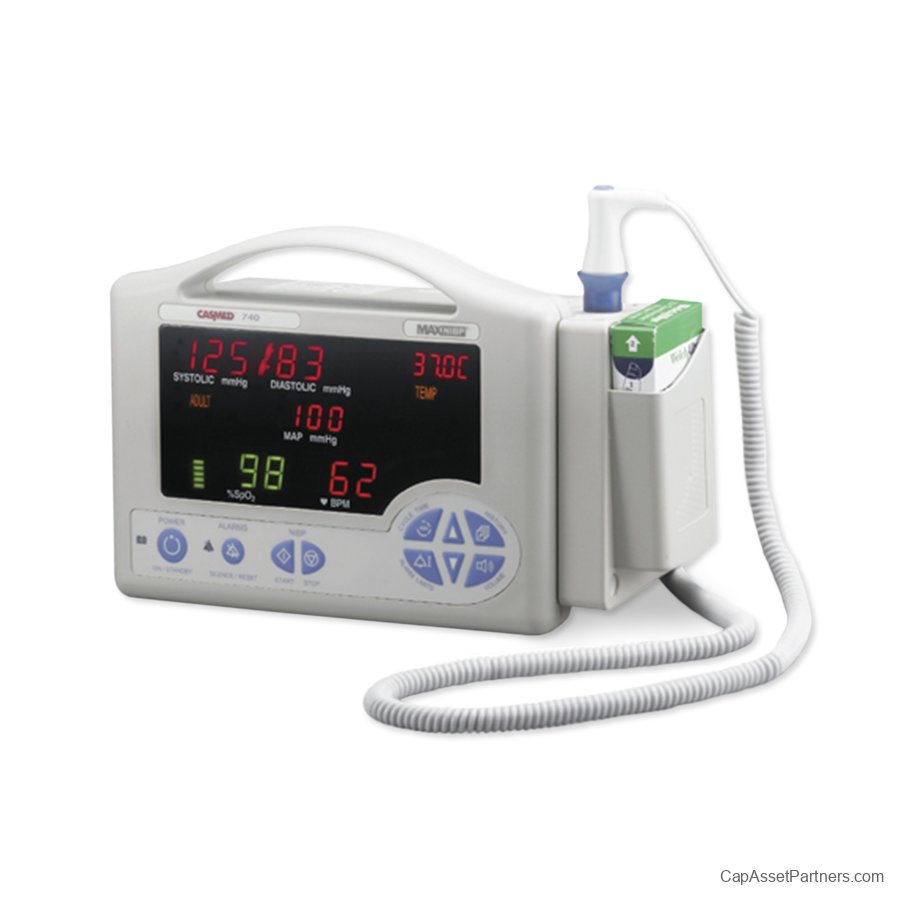

CASMED 740 Vital Signs Monitor

CASMED 740 Vital Signs Monitor: Cutting-Edge Portable Technology for Optimal Patient Care
Introducing the CASMED® 740 Vital Signs Monitor, a state-of-the-art device expertly designed for versatile performance in a compact, lightweight unit weighing only 1.4 kg (3 lbs). This monitor excels in delivering timely and precise vital sign measurements, making it an ideal choice for medical professionals across various settings.
Key Features:

• Multi-Parameter Monitoring: The CASMED 740 provides fast, reliable blood pressure readings suitable for patients from neonates to adults, minimizing the impact of motion during readings. In addition to blood pressure, the device monitors oximetry and temperature continuously or via "spot-check" modes.

• Versatile Applications: Perfectly suited for patients on pain management therapies, including those using PCA pumps, as well as those undergoing endoscopic procedures. Its robust capabilities cater to the needs of the EMS market, ensuring critical data is at hand when it matters most.

Featured Technologies:

• MAXNIBP® Technology: CASMED’s proprietary technology allows for enhanced accuracy in non-invasive blood pressure monitoring.

Oximetry Options:
Choose from various oximetry technologies to suit your monitoring requirements, including:

• Masimo SET®

• Nellcor® OxiMax®

• Nonin®

Model Variations:
The CASMED 740 is available in four configurations to meet diverse clinical needs:

• CAS 740-1: MAXNIBP

• CAS 740-2: MAXNIBP and SpO2

• CAS 740-2T: MAXNIBP and Temperature

• CAS 740-3: MAXNIBP, SpO2 and Temperature

Design and Usability:
This monitor was crafted with emergency medical responders in mind, featuring a user-friendly interface.

• Wireless Printing: An optional infrared printer for seamless documentation.

• Power Options: Comes with a user-removable NiMH battery pack along with an internal power supply and DC power option.

• Flexible Mounting Solutions: Easily adaptable to various mounting solutions including carts, IV poles, bedrails, or walls. It can be fixed to a swivel wall mount designed specifically for emergency vehicles, or securely carried in a rugged, protective case.

Experience unparalleled reliability, accuracy, and adaptability with the CASMED 740 Vital Signs Monitor, ensuring the highest standard of care in any medical setting.

CASMED 740 Vital Signs Monitor Specifications

Physical Weight & Dimensions

• Height: 6.75 inches (17 cm)

• Width: 8.5 inches (21.5 cm)

• Depth: 3 inches (7.5 cm)

• Weight: 3 kg (6.6 lbs)

NIBP (Non-Invasive Blood Pressure)

• Technique: Oscillometric (MAXNIBP® Technology)

• Patient Range: Adult – Neonate

• Measurement Range:

• Systolic: 30-255 mmHg

• Diastolic: 15-220 mmHg

• MAP: 20-235 mmHg

• Pulse Rate Range: 30-240 BPM

• Accuracy:

• Blood Pressure: ± 5 mmHg (standard deviation no greater than 8 mmHg)

• Pulse Rate: ± 2% or ± 2 BPM (whichever is greater)

Oximetry (Options)

• Masimo SET®

• SpO2 Range: 0-100%

• SpO2 Accuracy:

• 70-100%, ± 2 digits (1 S.D.) Adult

• 70-100%, ± 3 digits (1 S.D.) Neonate

• Pulse Rate Range: 25-240 BPM

• Pulse Rate Accuracy: ± 3 BPM

• Nonin®

• SpO2 Range: 0-100%

• SpO2 Accuracy:

• 70-100%, ± 2 digits (1 S.D.) Adult

• 70-100%, ± 3 digits (1 S.D.) Neonate

• Pulse Rate Range: 18-240 BPM

• Pulse Rate Accuracy: ± 3% or ± 1 digit (whichever is greater)

• Nellcor® OxiMax®

• SpO2 Range: 1-100%

• SpO2 Accuracy:

• 70-100%, ± 2 digits (1 S.D.) Adult

• 70-100%, ± 3 digits (1 S.D.) Neonate

• Pulse Rate Range: 20-240 BPM

• Pulse Rate Accuracy: ± 3 digits

Temperature (Optional)

• Welch Allyn SureTemp® Plus

• Temperature Range: 29 °C to 42 °C (84.2 °F to 107.6 °F)

• Accuracy: ± 0.1 °C (± 0.2 °F)

• Meets or exceeds ASTM Standards

Control Panel

• Display: LED display of measurement results, instructions, troubleshooting messages, and signal strength bar

• Parameters Displayed: Systolic Pressure, Diastolic Pressure, Mean Arterial Pressure (MAP), Pulse Rate, %SpO2, Temperature (°C or °F)

Patient Alarms

• Adjustable high and low alarms for Pulse Rate, SpO2, Systolic Pressure, Diastolic Pressure, and Mean Arterial Pressure

Operating Modes

• History: Review of previous measurements

• NIBP: Manual, STAT, or Automatic (at preset intervals)

• %SpO2: Continuous Monitoring

• Temperature: Predictive or Continuous

Power

• Source: External line or internal battery

• AC Power: 100-240 VAC, 50-60 Hz, 0.5A; T1.25A L250V fuse rating

• DC Power (EMS Option): 12-30 VDC

• Battery: NiMH battery pack (removable)

• Charge Time: 4 hours

• Operating Time: Minimum 4 hours of continuous operation

• Leakage Current: 100 µA (maximum)

Safety Limits

• 145 mmHg (Neonate)

• If measurement time exceeds 120 seconds (Adults), 90 seconds (Neonate)

• If safety timer detects microprocessor failure

Operating Environment

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -20°C to 65°C (-4°F to 149°F)

• Humidity: 15 - 95%, non-condensing

• Altitude: Up to 3048 meters (10,000 feet) if stored or used outside temperature and humidity ranges

Standards

• ANSI/AAMI SP-10

• EN 60601-1, EN 60601-1-2, EN 865, EN 60601-2-30, EN 60601-2-49

• ETL Listed – UL 60601, CAN/CSA C22.2 No. 601.1

• CE Marking according to Directive 93/42/EEC
