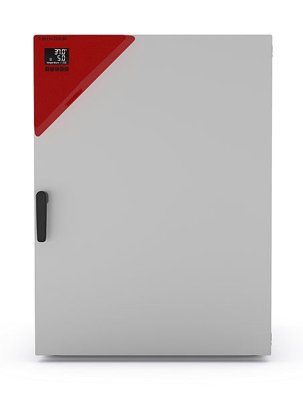

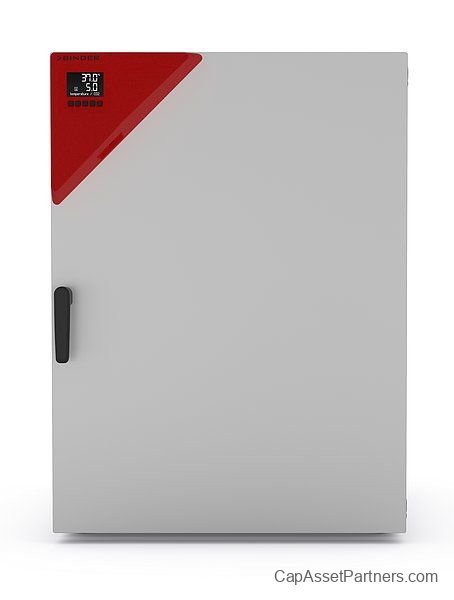

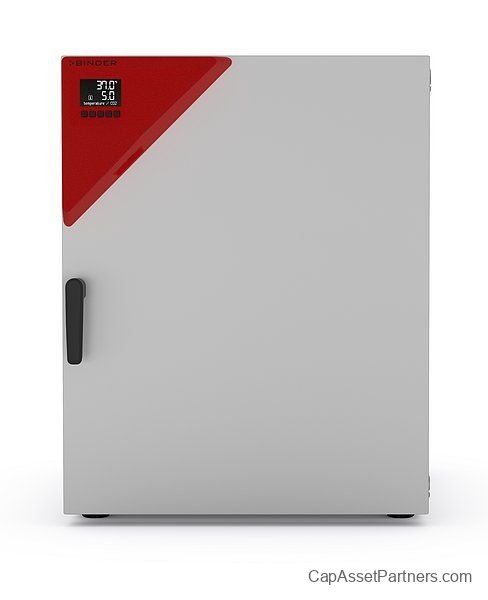

CB-S Series CO₂ Incubators
The BINDER Series CB-S Solid Line CO2 Incubators with Hot Air Sterilization exemplify the pinnacle of safety, reliability, intelligence, and cost-effectiveness in laboratory environments. Equipped with advanced technology and innovative features, these incubators ensure optimal growth conditions for cell cultures while minimizing contamination risks.
Key Features
- Advanced humidification system with condensation protection to maintain optimal humidity levels.
- Proven anti-contamination concept utilizing 180°C hot air sterilization for enhanced safety.
- High-precision CO2 sensor featuring single-beam infrared technology for accurate monitoring.

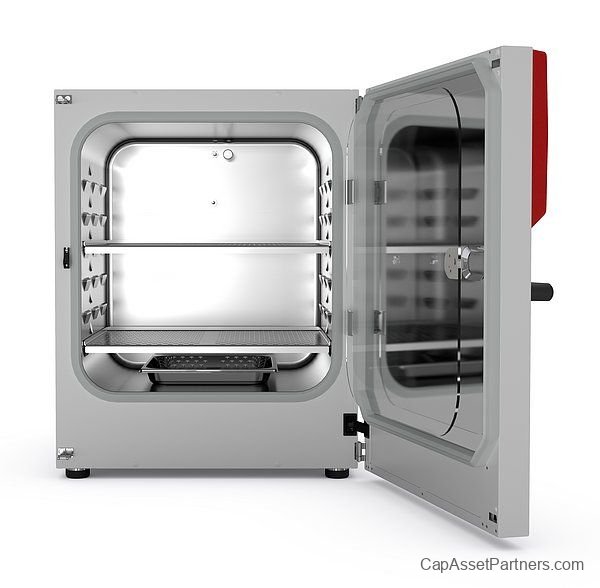

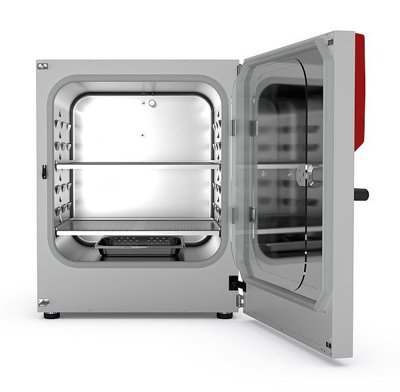

- Seamless interior chamber constructed from stainless steel, designed with flanges to facilitate a robust shelf support system.
- Innovative fanless design with a Venturi CO2 gas mixing nozzle for consistent distribution without airflow disturbances.
- Purge PID controller with a clear LCD display ensuring user-friendly operation.
- Integrated data recording system, conveniently retrievable in an open format via USB interface.
- Comprehensive fault diagnosis system equipped with visual and acoustic alarms for immediate attention.
- Multiple interfaces including Ethernet, USB, and zero-voltage alarm contact for easy connectivity and integration.
Benefits
- Safe: Maximum protection against contamination, ensuring cell culture integrity.
- Reliable: Maintains stable environmental conditions essential for cell health.
- Smart: Facilitates easy routine cleaning and user-friendly operations.
- Economical: Designed for efficient performance without the need for consumables.
Specifications
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Humidity Range |
CO2 Range |
| 9640-0001 |
50°C +6°C |
± 0.1 at 37°C |
± 0.3 at 37°C |
90 - 95 % RH |
0 - 20 % CO2 |
| 9640-0002 |
50°C +6°C |
± 0.1 at 37°C |
± 0.3 at 37°C |
90 - 95 % RH |
0 - 20 % CO2 |
| 9640-0004 |
50°C +6°C |
± 0.1 at 37°C |
± 0.4 at 37°C |
90 - 95 % RH |
0 - 20 % CO2 |
Additional Information
| SKU |
# of Shelves |
Door Recovery Time |
Depth |
Height |
Width |
Power Requirement |
| 9640-0001 |
2 std./6 max. |
6 min |
28.17 in |
34.28 in |
26.79 in |
200 - 230 V, 50/60 Hz, 10 A |
| 9640-0002 |
2 std./6 max. |
8 min |
28.17 in |
34.28 in |
26.79 in |
100 - 120 V, 50/60 Hz, 16 A |
| 9640-0004 |
2 std./8 max. |
8 min |
30.93 in |
40.2 in |
29.16 in |
100 - 120 V, 50/60 Hz, 16 A |
