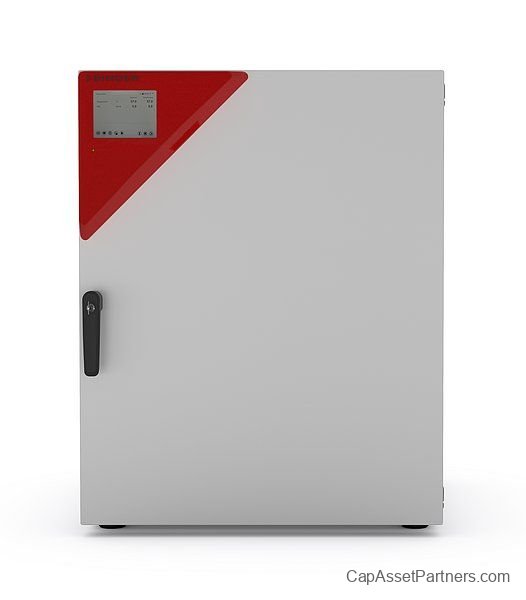

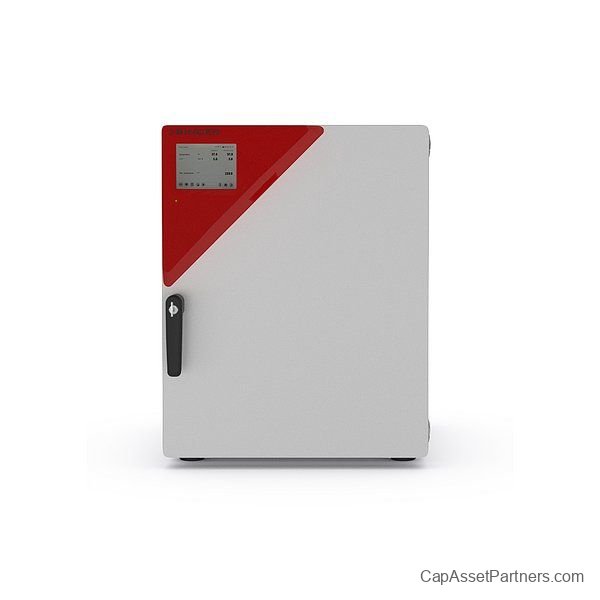

CB Series CO₂ Incubators with Heat Sterilizable CO₂ Sensor
The CB Series CO₂ Incubators are designed for exceptional reliability and functionality, tailored specifically for cell culture applications. Featuring cutting-edge technology, these incubators ensure optimal growth conditions for your sensitive cultures while minimizing the risk of contamination.
Key Features:

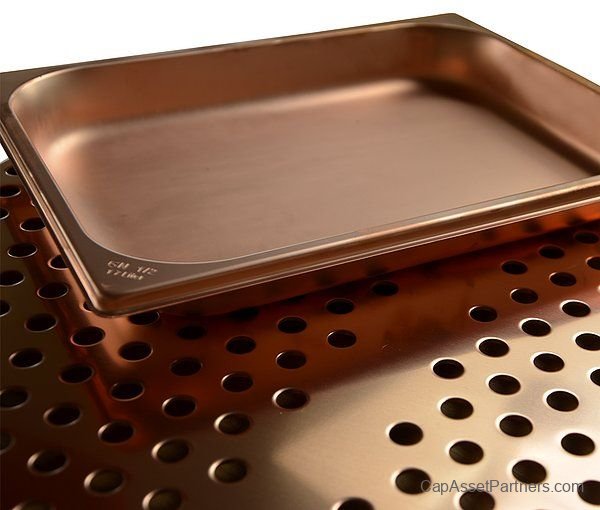

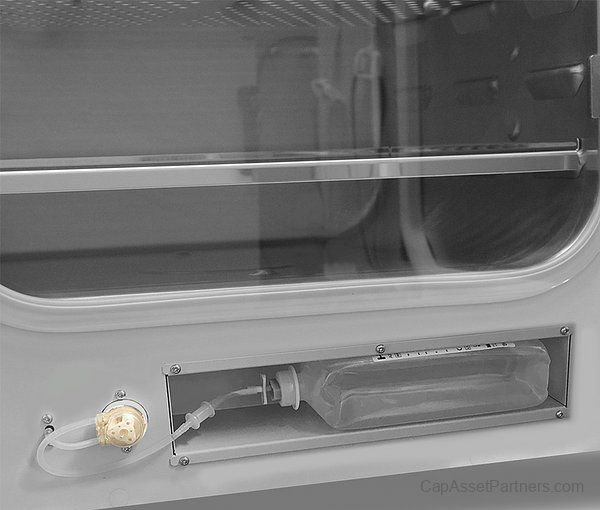

- Optimized Double-Pan Humidification: Advanced design includes condensation protection to maintain humidity levels efficiently.
- Effective Anti-Contamination Measures: Integrated 180°C hot air sterilization safeguards against unwanted microbial growth.
- Hot-Air Sterilization CO₂ Sensor: Utilizes single-beam infrared technology for accurate monitoring of CO₂ levels.

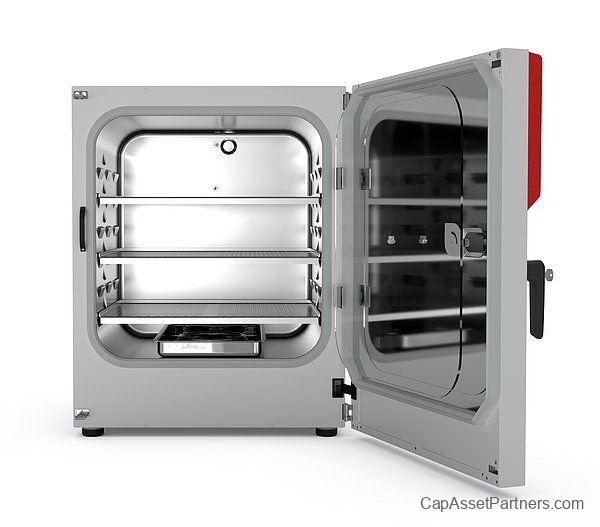

- Seamless Stainless Steel Interior: A robust inner chamber with flanges for an effective shelf support system.
- Fanless Design: Ensures uniform CO₂ distribution through a Venturi gas mixing nozzle, reducing the risk of airflow disturbances.

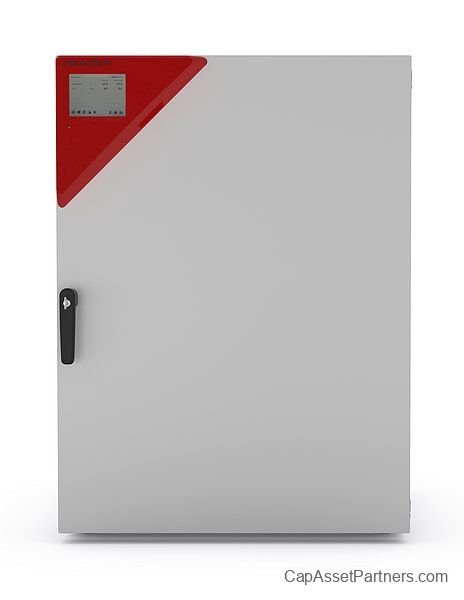

- Intuitive Touchscreen Controller: Simplifies operation and enhances user experience with straightforward navigation.
- Integrated Data Recording: Internal records can be easily extracted in an open format through a USB interface for further analysis.
- Visual and Acoustic Alarm System: Features an intelligent fault diagnosis system to monitor performance continuously.
- Comprehensive Interface Options: Includes Ethernet, USB, and zero-voltage alarm contact for versatile connectivity.

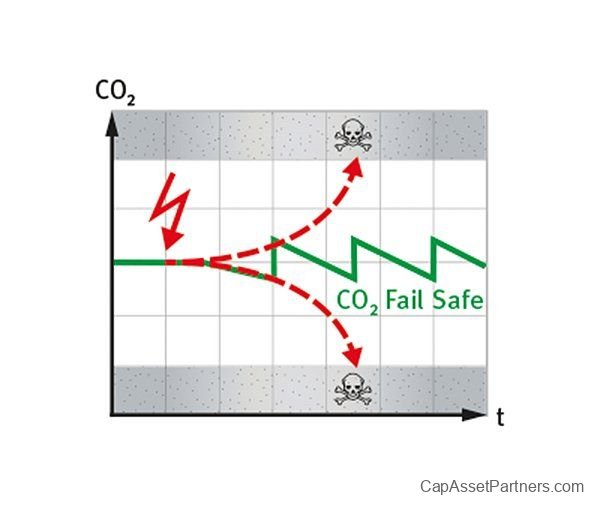

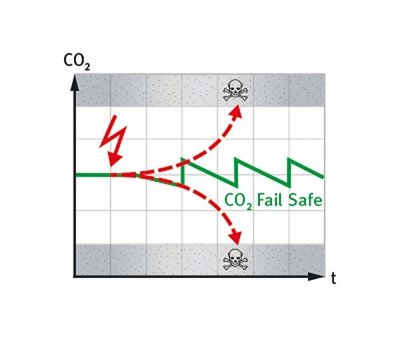

- Fail-Safe CO₂ System: Protects the pH balance of cell cultures against fluctuations during operation.
Benefits:
- Maximum Safety: Designed to provide the highest protection for cell cultures against contamination.
- Consistent Reliability: Ensures stable environmental conditions that promote healthy cell growth.
- User-Friendly: Routine cleaning is streamlined, making maintenance efficient and convenient.
- Cost-Effective Operation: Operates efficiently without the need for consumables, reducing overall costs.
Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Humidity Range |
CO₂ Range |
| 9640-0007 |
60°C ± 4°C |
± 0.1 at 37°C |
90 - 95 % RH |
0 - 20 % CO₂ |
| 9640-0011 |
60°C ± 4°C |
± 0.1 at 37°C |
90 - 95 % RH |
0 - 20 % CO₂ |
| 9640-0012 |
60°C ± 6°C |
± 0.1 at 37°C |
90 - 95 % RH |
0 - 20 % CO₂ |
| 9640-0015 |
60°C ± 5°C |
± 0.1 at 37°C |
90 - 95 % RH |
0 - 20 % CO₂ |
| 9640-0016 |
60°C ± 6°C |
± 0.1 at 37°C |
90 - 95 % RH |
0 - 20 % CO₂ |
Additional Technical Information:
| SKU |
# of Shelves |
Door Recovery Time |
Depth |
Height |
Width |
Power Requirement |
| 9640-0007 |
2 std./3 max. |
5 min |
21.47 in |
26.56 in |
20.8 in |
100 - 120 V, 50/60 Hz, 16 A |
| 9640-0011 |
3 std./6 max. |
5 min |
28.17 in |
34.28 in |
26.79 in |
100 - 120 V, 50/60 Hz, 16 A |
| 9640-0012 |
3 std./6 max. |
5 min |
28.17 in |
34.28 in |
26.79 in |
100 - 120 V, 50/60 Hz, 16 A |
| 9640-0015 |
3 std./8 max. |
5 min |
30.93 in |
40.2 in |
29.16 in |
100 - 120 V, 50/60 Hz, 16 A |
| 9640-0016 |
3 std./8 max. |
5 min |
30.93 in |
40.2 in |
29.16 in |
100 - 120 V, 50/60 Hz, 16 A |
