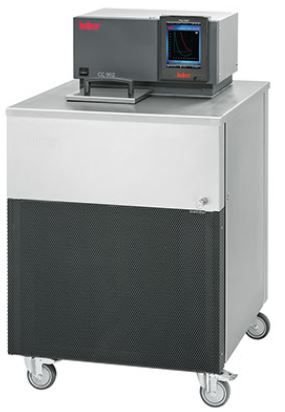

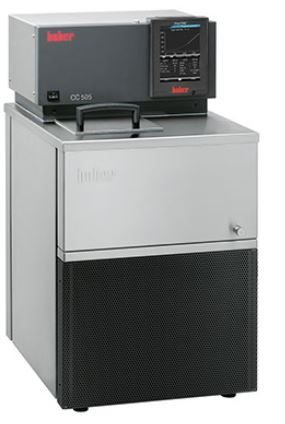

CC Series Cooling Bath Circulators
The CC Series Cooling Bath Circulators are engineered to meet the highest professional demands in temperature control. Featuring an advanced Pilot ONE controller, these units come equipped with a vivid color TFT display and a plethora of functions that enhance usability and precision.
Key Features
- Exceptional temperature control accuracy with a user-friendly interface.
- 5.7" touchscreen display for easy navigation and real-time parameter monitoring.
- Robust construction from high-quality stainless steel, designed to minimize condensation and ice build-up.
- Integrated electronic upgrade functionality via unit-specific e-grade codes, enabling additional features like temperature ramps and TAC cascade controlling.
- Equipped with a powerful pressure/suction pump for efficient fluid circulation.
- Safety features include overtemperature protection and low fluid level alerts, with a safety class rating of III/FL according to DIN 12876.
Specifications
| SKU |
Max Pressure |
Max Suction |
Power Requirement |
Controller |
Water Bath Dimensions |
| 2044.0003.01 |
0.7 bar |
0.4 bar |
208 V/60 Hz |
Pilot ONE |
150 mm D |
| 2045.0002.01 |
0.7 bar |
0.4 bar |
208-230 V/60 Hz |
Pilot ONE |
160 mm D |
| 2026.0007.01 |
0.7 bar |
0.4 bar |
208 V/60 Hz |
Pilot ONE |
150 mm D |
Additional Information
| SKU |
Width |
Depth |
Height |
Safety |
Type |
Refrigerant |
| 2044.0003.01 |
16.14 in |
18.9 in |
30.08 in |
III/FL |
Air Cooled |
R290 |
| 2045.0002.01 |
16.14 in |
18.9 in |
30.08 in |
III/FL |
Air Cooled |
R290 |
| 2026.0007.01 |
21.65 in |
23.62 in |
35.87 in |
III/FL |
Air Cooled |
R290 |
For optimal performance, choose Huber Heat Transfer Fluids, known for their superior thermodynamic properties and environmental safety. Selecting the appropriate fluid is essential for efficient heat transfer, ensuring reliable operation, and achieving precise temperature control.
