Manufactured by: Julabo

Category: Heated Circulating Baths

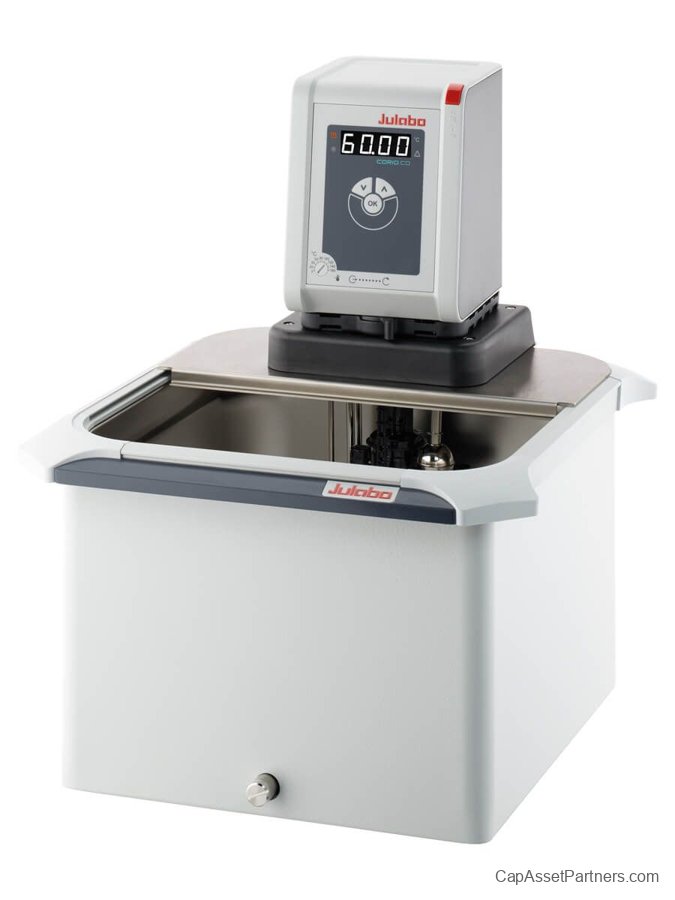

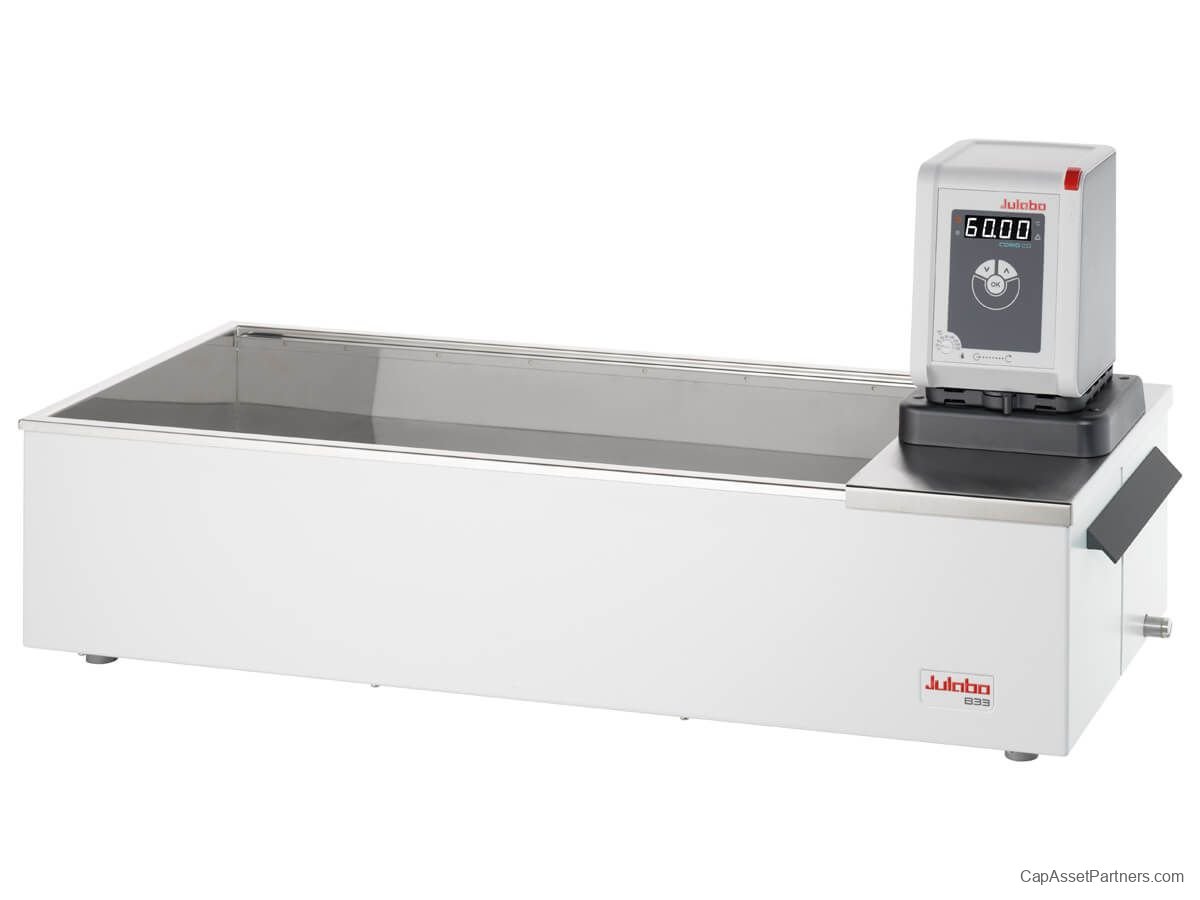

Julabo CD-B Series Heating Circulators with Open Baths

CD-B Series Heating Circulators with Open Baths

The CD-B Series Open Heating Bath Circulators are designed for precision temperature control, featuring high-quality stainless steel construction in their bath tanks. These state-of-the-art circulators are perfect for both internal and external applications, providing versatility and reliability for your laboratory needs.

Key Features

Suitable for internal and external circulation applications.

Bright, white display for easy readability.

Operates quietly for a distraction-free environment.

Effortless pump change-over between internal and external circulation.

Equipped with USB connection for data transfer and device connectivity.

Durable bath tanks constructed from high-quality stainless steel.

Integrated drain screw for easy maintenance (excludes model B5).

Specifications

SKU	Temperature Range	Temperature Stability	Filling Volume	Heating Capacity	Flow Rate	Flow Pressure	Water Bath Dimensions	Voltage	Heaters
9012413.02	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	9 to 13 L	1kW	15 L/Min	5.08 psi	11.8 x 7 / 5.9 in	115V/60Hz	1kW @ 115V (2kW @ 230V)
9012413.13	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	9 to 13 L	2kW	15 L/Min	5.08 psi	11.8 x 7 / 5.9 in	230V/60Hz	1kW @ 115V (2kW @ 230V)
9012417.02	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	13 to 17 L	1kW	15 L/Min	5.08 psi	11.8 x 7 / 7.8 in	115V/60Hz	1kW @ 115V (2kW @ 230V)
9012417.13	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	13 to 17 L	2kW	15 L/Min	5.08 psi	11.8 x 7 / 7.8 in	230V/60Hz	1kW @ 115V (2kW @ 230V)
9012419.02	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	14 to 19 L	1kW	15 L/Min	5.08 psi	11.8 x 13.7 / 5.9 in	115V/60Hz	1kW @ 115V (2kW @ 230V)
9012419.13	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	14 to 19 L	2kW	15 L/Min	5.08 psi	11.8 x 13.7 / 5.9 in	230V/60Hz	1kW @ 115V (2kW @ 230V)
9012427.02	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	17 to 27 L	1kW	15 L/Min	5.08 psi	11.8 x 13.7 / 7.8 in	115V/60Hz	1kW @ 115V (2kW @ 230V)
9012427.13	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	17 to 27 L	2kW	15 L/Min	5.08 psi	11.8 x 13.7 / 7.8 in	230V/60Hz	1kW @ 115V (2kW @ 230V)
9012433.02	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	26 to 39 L	1kW	15 L/Min	5.08 psi	25.9 x 12.5 / 5.9 in	115V/60Hz	1kW @ 115V (2kW @ 230V)
9012433.13	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	26 to 39 L	2kW	15 L/Min	5.08 psi	25.9 x 12.5 / 5.9 in	230V/60Hz	1kW @ 115V (2kW @ 230V)
9012439.02	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	35 to 41 L	1kW	15 L/Min	5.08 psi	12.9 x 11.8 / 11.8 in	115V/60Hz	1kW @ 115V (2kW @ 230V)
9012439.13	20°C to 150°C (68°F to 302°F)	+/- 0.03 °C	35 to 41 L	2kW	15 L/Min	5.08 psi	12.9 x 11.8 / 11.8 in	230V/60Hz	1kW @ 115V (2kW @ 230V)

Additional Information

SKU	Shipping Weight	Shipping Dimensions	Controller	Resolution	Temperature Display	Other Dimensions
9012413.02	106 lb	26 x 26 x 26 in	PID temperature control	0.1 °C	LED	15
9012413.13	106 lb	26 x 26 x 26 in	PID temperature control	0.1 °C	LED	15
9012417.02	106 lb	26 x 26 x 26 in	PID temperature control	0.1 °C	LED	15
9012417.13	106 lb	26 x 26 x 26 in	PID temperature control	0.1 °C	LED	15
9012419.02	106 lb	26 x 26 x 26 in	PID temperature control	0.1 °C	LED	15x23x16.6 In
9012419.13	106 lb	26 x 26 x 26 in	PID temperature control	0.1 °C	LED	15x23x16.7 In
9012427.02	106 lb	26 x 26 x 26 in	PID temperature control	0.1 °C	LED	15x23x18.6 In
9012427.13	106 lb	26 x 26 x 26 in	PID temperature control	0.1 °C	LED	15x23x18.6 In
9012433.02	167 lb	24 x 48 x 24 in	PID temperature control	0.1 °C	LED	36
9012433.13	167 lb	24 x 48 x 24 in	PID temperature control	0.1 °C	LED	36
9012439.02	167 lb	24 x 48 x 24 in	PID temperature control	0.1 °C	LED	21.3
9012439.13	167 lb	24 x 48 x 24 in	PID temperature control	0.1 °C	LED	21.3
