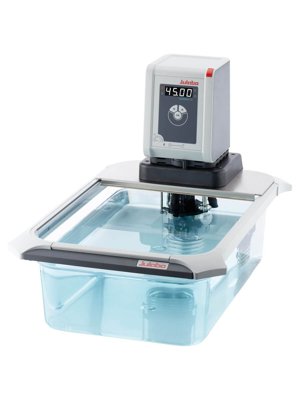

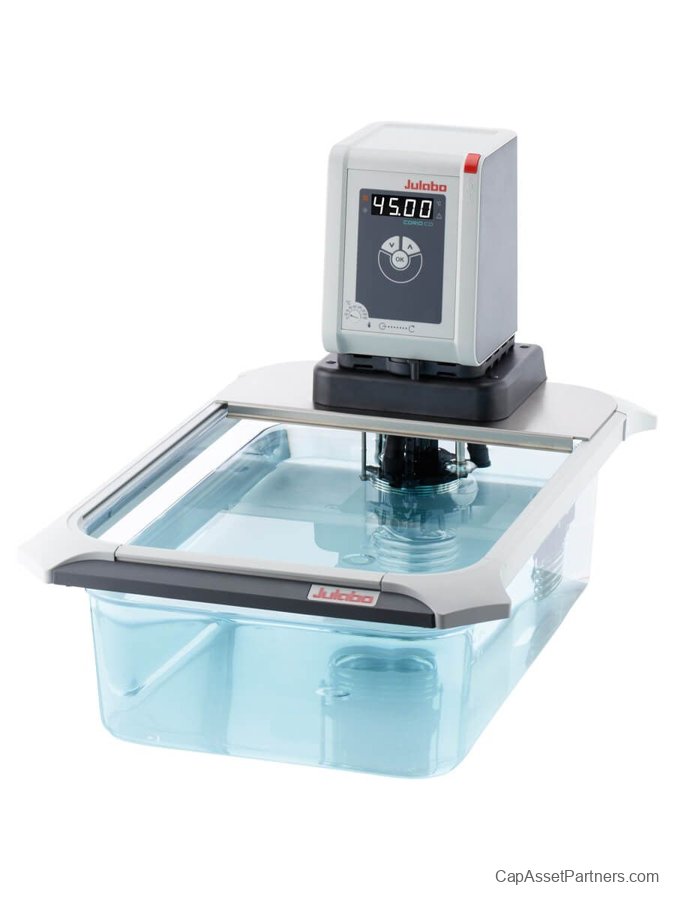

CD-BT Series Heating Circulators with Open Bath
In Stock!
Lead Times May Vary.
The innovative Open Heating Bath Circulators from the CD-BT Series are engineered for precision with top-tier transparent bath tanks and seamless pump connections, ideal for any laboratory environment.
Key Features
- Suitable for both internal and external applications, providing versatility.
- Bright, white display that is easy to read even from a distance.
- Operates very quietly, ensuring a conducive work environment.
- Simple pump change-over functionality between internal and external circulation.
- Equipped with USB connection for enhanced connectivity.
- Designed to meet Class III (FL) standards according to DIN 12876-1.
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Filling Volume |
Heating Capacity |
Flow Rate |
Flow Pressure |
Water Bath Dimensions |
Voltage |
Heaters |
| 9012305.02 |
20°C to 100°C (68°F to 212°F) |
± 0.03 °C |
3.5 to 5 L |
1kW |
15 L/Min |
5.08 psi |
5.9 x 5.9 / 5.9 in |
115V/60Hz |
1kW @ 115V (2kW @ 230V) |
| 9012305.13 |
20°C to 100°C (68°F to 212°F) |
± 0.03 °C |
3.5 to 5 L |
2kW |
15 L/Min |
5.08 psi |
5.9 x 5.9 / 5.9 in |
230V/60Hz |
1kW @ 115V (2kW @ 230V) |
| 9012319.02 |
20°C to 100°C (68°F to 212°F) |
± 0.03 °C |
14 to 19 L |
1kW |
15 L/Min |
5.08 psi |
11.8 x 13.7 / 5.9 in |
115V/60Hz |
1kW @ 115V (2kW @ 230V) |
| 9012319.13 |
20°C to 100°C (68°F to 212°F) |
± 0.03 °C |
14 to 19 L |
2kW |
15 L/Min |
5.08 psi |
11.8 x 13.7 / 5.9 in |
230V/60Hz |
1kW @ 115V (2kW @ 230V) |
| 9012327.02 |
20°C to 100°C (68°F to 212°F) |
± 0.03 °C |
20 to 27 L |
1kW |
15 L/Min |
5.08 psi |
11.8 x 13.7 / 7.8 in |
115V/60Hz |
1kW @ 115V (2kW @ 230V) |
| 9012327.13 |
20°C to 100°C (68°F to 212°F) |
± 0.03 °C |
20 to 27 L |
2kW |
15 L/Min |
5.08 psi |
11.8 x 13.7 / 7.8 in |
230V/60Hz |
1kW @ 115V (2kW @ 230V) |
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
Dimensions |
| 9012305.02 |
48 lb |
20 x 20 x 20 in |
PID temperature control |
0.1 °C |
LED |
9.1 x 15 x 15 in |
| 9012305.13 |
48 lb |
20 x 20 x 20 in |
PID temperature control |
0.1 °C |
LED |
9.1 x 15 x 15 in |
| 9012319.02 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9012319.13 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9012327.02 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9012327.13 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
