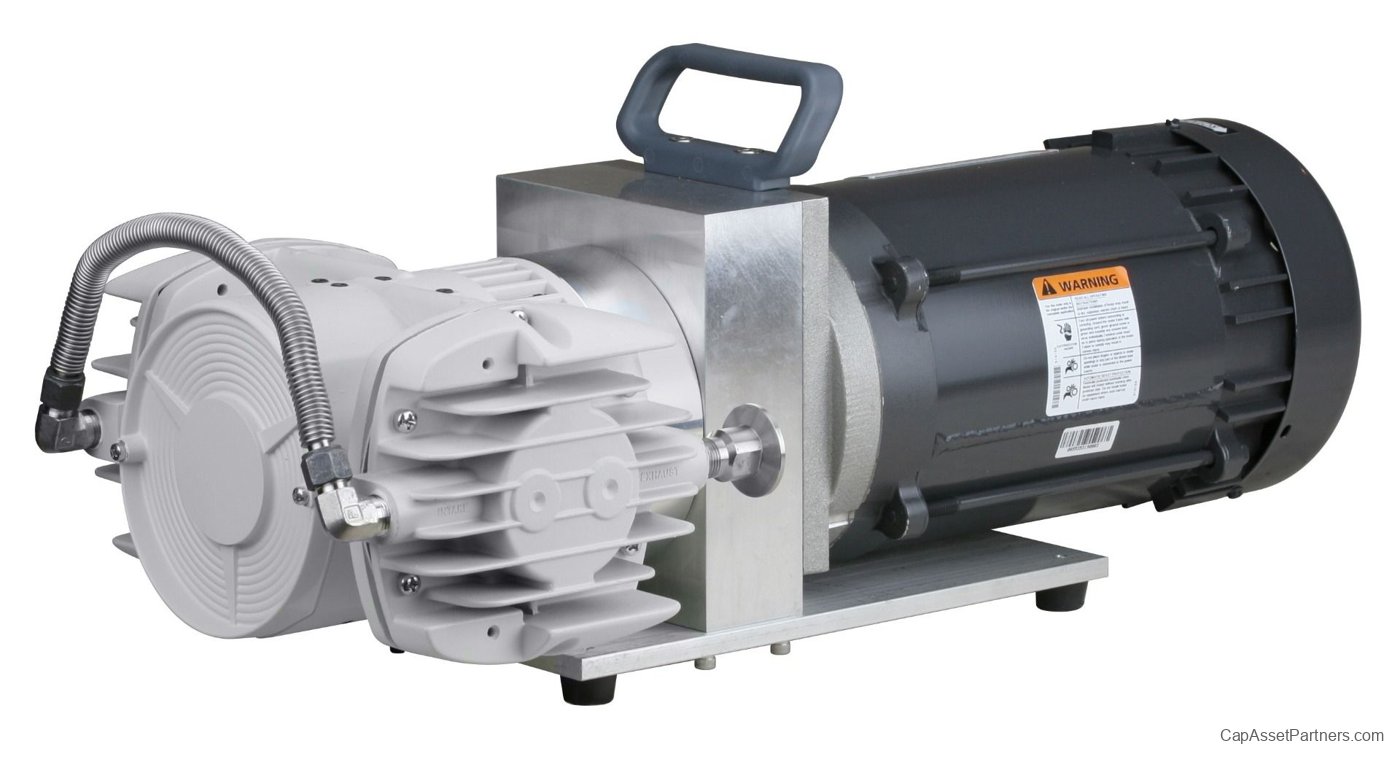

Chemical Duty Explosion Proof Motors Diaphragm Pumps
Designed for safe and efficient operation in hazardous environments, our Chemical Duty Explosion Proof Motors Diaphragm Pumps are the ideal solution for laboratory and industrial applications where chemical resistance is paramount. Built with a robust PTFE coating on the aluminum pump head and a PTFE liner over the diaphragm, these pumps effectively isolate the chemical media, delivering reliable performance even in the harshest conditions.
Key Features
- Corrosion-resistant: Constructed with materials designed to withstand aggressive chemicals.
- Flow Rate: Capable of delivering a flow from 4.5 to 6.9 cubic feet per minute (cfm).

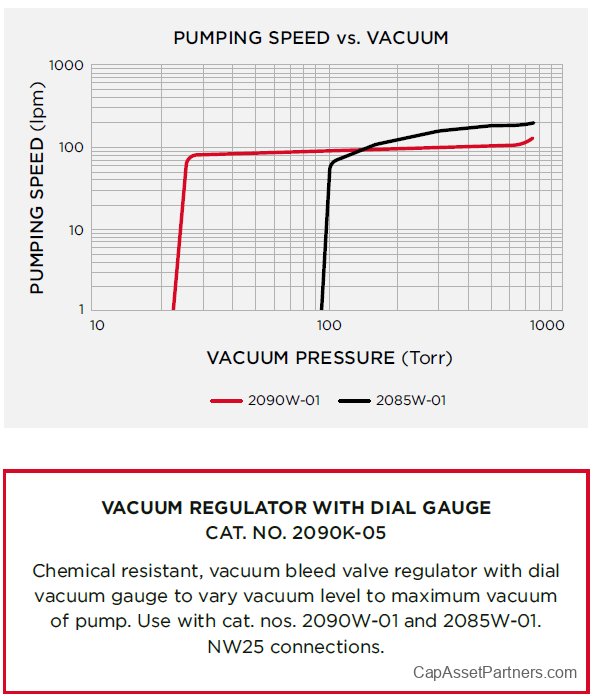

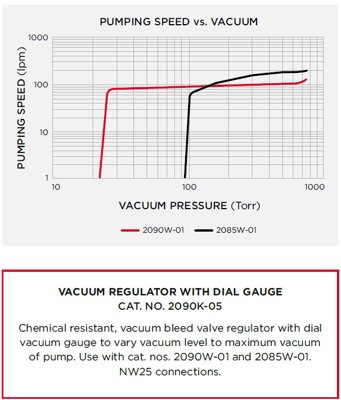

- Ultimate Vacuum: Achieves a maximum vacuum of 29 inches of mercury (25 Torr).
- Explosion-proof Motor: Fitted with Class I (Groups C&D) explosion-proof motors compliant with CSA/UL standards.
- Portable Design: Engineered for easy mobility, making it ideal for various applications.
Specifications
| SKU |
Ultimate Pressure |
Motor Type |
Pump Connections |
Ambient Temperature Range |
| 2090W-01 |
25 Torr |
Explosion Proof |
NW25 |
10°C - 40°C |
| 2085W-01 |
100 Torr |
Explosion Proof |
NW25 |
10°C - 40°C |
Additional Info
| SKU |
Dimensions |
Certification |
Power Requirement |
Plug Type |

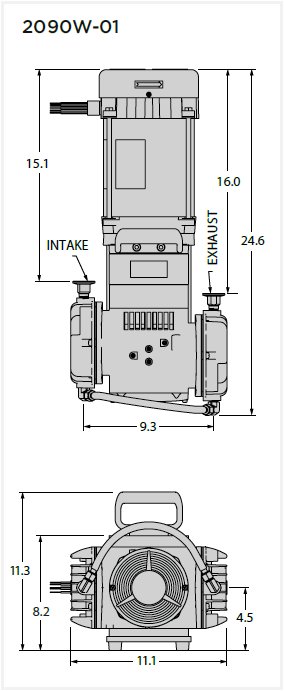

| 2090W-01 |
24.6 in x 11.1 in x 11.3 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |

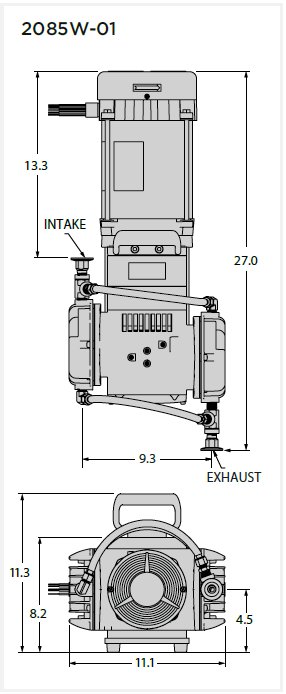

| 2085W-01 |
27 in x 11.3 in x 11.3 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
Important: Installation of these pumps must be performed by a certified electrician to ensure compliance with local municipal codes. Note that conduit wiring is required; the pumps do not come with an on/off switch, plug, or cord included.
