ChemStar Chemical Resistant Belt-Drive Vacuum Pumps
The ChemStar Chemical Resistant Belt-Drive Vacuum Pump is meticulously engineered to withstand the demanding conditions of harsh chemical environments. With its corrosion-resistant vital pump components, this vacuum pump is a reliable solution for various applications, ensuring optimal performance and longevity.
Featuring a large oil reservoir with PTFE surfaces, the ChemStar vacuum pump effectively dilutes chemical contamination, enhancing operational efficiency. Its low pump rotational speed minimizes friction, thereby reducing both the operating temperature and the impact of chemical exposure. Additionally, the integration of PTFE surfaces, fluorocarbon gaskets, and seals, combined with a nitrogen purge system for cooling and degassing oil, guarantees superior functionality.
Key Features:
- Low rotation speed promotes extended service life
- Vital components designed to resist corrosion
- Large oil reservoir to effectively dilute contaminants
Applications:
Specifications:
| SKU |
Max Vacuum |
Ultimate Pressure |
Motor Power |
Motor Speed |
Ambient Temperature Range |

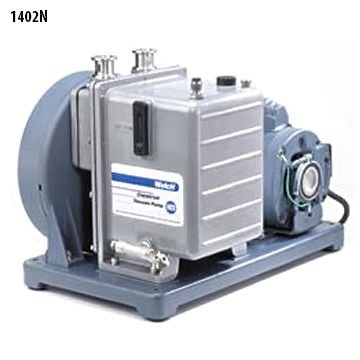

| 1402N-01 |
0.0001 Torr |
0.00013 Torr |
0.7 kW @ 50 Hz, 0.85 kW @ 60Hz |
525 rpm |
10°C - 40°C |
| 1376N-01 |
0.0001 Torr |
0.00013 Torr |
0.7 kW @ 50 Hz, 0.85 kW @ 60Hz |
525 rpm |
10°C - 40°C |
Additional Information:
| SKU |
Material |
Dimensions |
Certification |
Power Requirement |
Plug Type |
Tubing Needed |
Intake Thread NPT |
| 1402N-01 |
Teflon |
19.3 in x 14.1 in x 15.4 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
13/16 in (21 mm) |
NW25 |
| 1376N-01 |
Teflon |
19.3 in x 12.3 in x 15.6 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
13/16 in (21 mm) |
NW25 |
