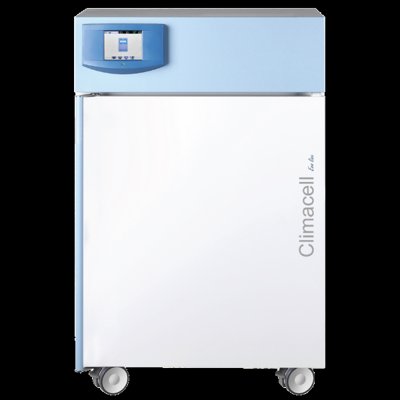

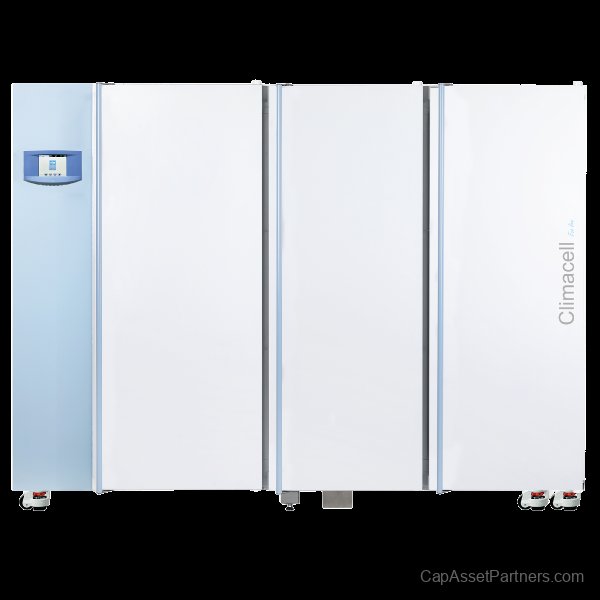

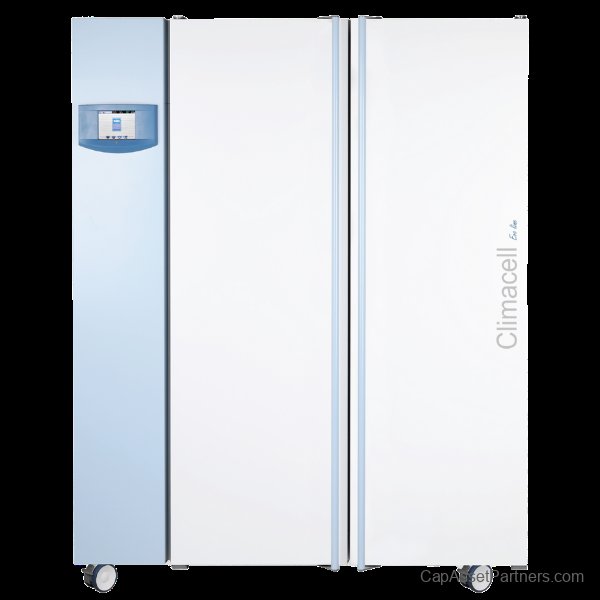

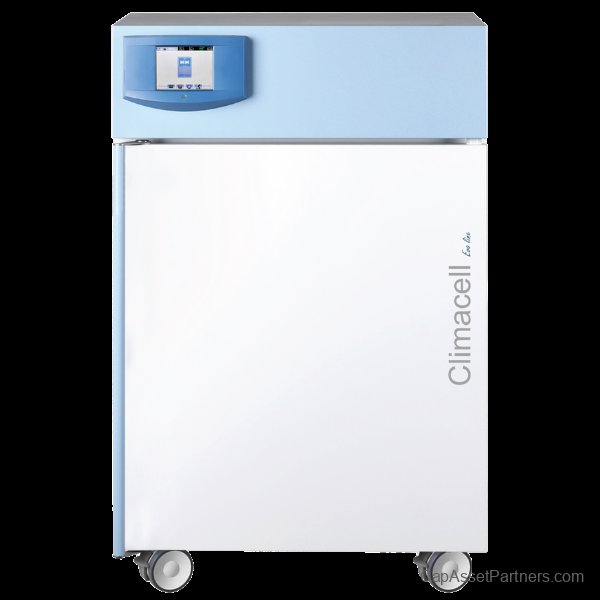

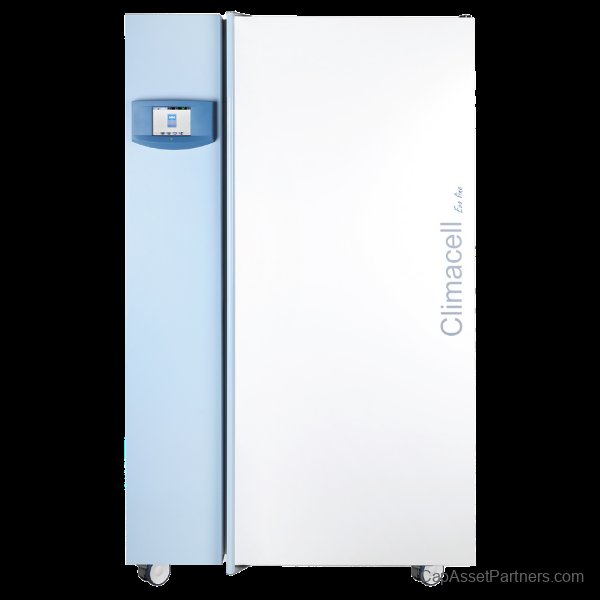

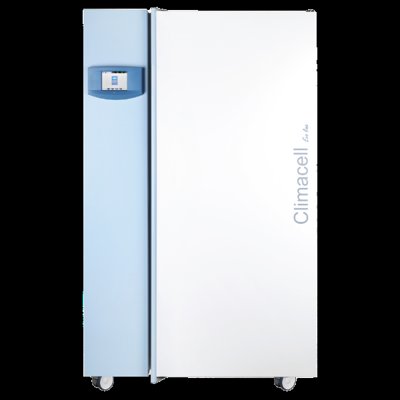

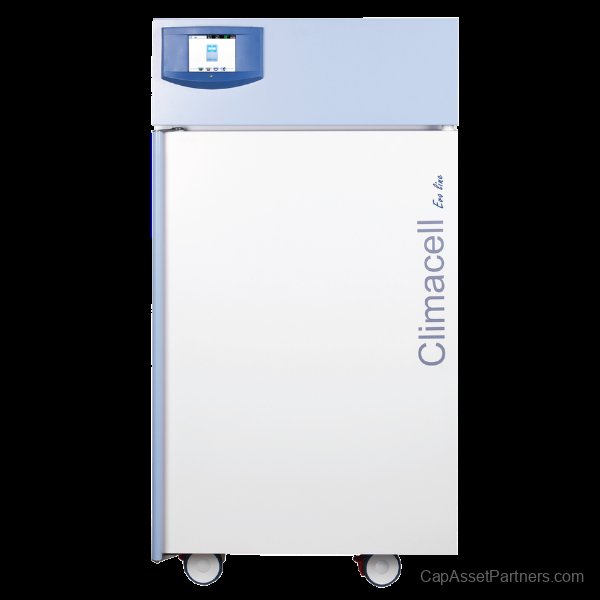

Climacell® EVO Temperature and Humidity Controlled Climate Chambers
Experience unparalleled environmental control with the Climacell® EVO Temperature and Humidity Controlled Climate Chambers. Precision-engineered to create reproducible simulations of environmental conditions, these advanced climate chambers are essential for stability testing of pharmaceuticals, cosmetics, shelf life evaluation of food and beverages, and material quality assessments. With the capability to simulate a range of conditions, they ensure that your critical research and development processes yield reliable data.
Key Features:
- EVO advanced microprocessor controller for superior control of temperature and humidity.
- 5.7-inch color touchscreen, glove-friendly operation enhances usability.
- Store up to 100 programs, each with 100 segments for maximum versatility.
- Real-time programming capabilities with versatile temperature ramping settings.
- High-resolution graphical display of cycle parameters for easy monitoring.
- Equipped with DIN 12880 digital safety thermostat for heightened safety.
- Delayed heating start and stop functions for added convenience.
- Audible and visual alarms for immediate error reporting.
- Secure keypad lock to prevent unauthorized access.
- RS 232 port for easy data transfer and remote monitoring.
- High-quality pharmaceutical grade AISI 304 stainless steel chamber ensures durability.
- Removable inner chamber allows for easy cleaning and maintenance.
- Integrated molded brackets within the inner chamber walls facilitate proper shelf placement.
- Innovative double wall construction with five layers of insulation provides uniform internal conditions.
- Rounded corner design allows for easy cleaning and maximizes space efficiency.
- Patented 4-point closing system ensures an airtight seal for reliable experiments.

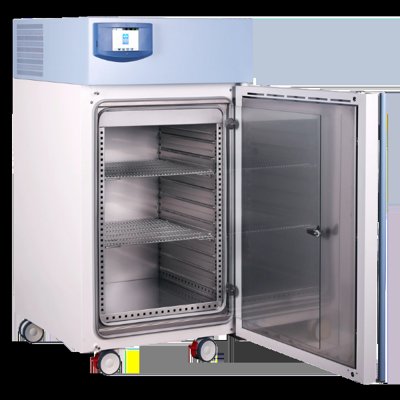

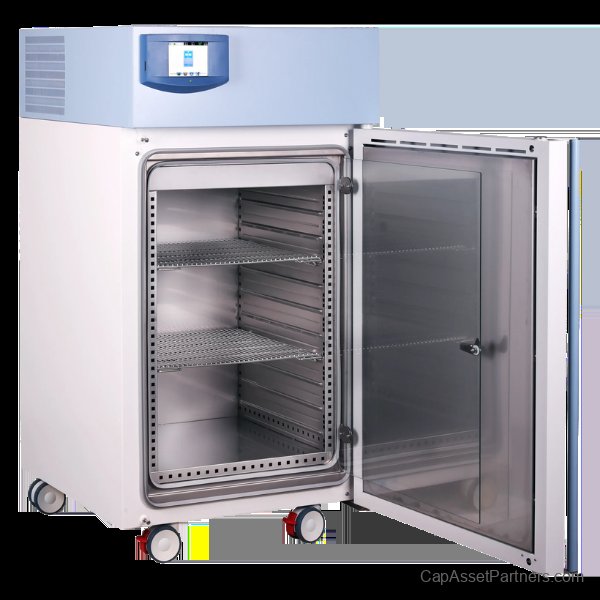

- Inner glass door allows for continuous observation without compromising internal conditions.
- 50 mm stainless steel port for easy access and sampling.
Certifications:
- CE, UL, and CSA certified for quality assurance.
- Compliant with FDA CFR 21 Part 11 for integrated data logging and remote access.
Specifications:
| Model |
Max Consumption |
Electrical Information |
| Climacell EVO 111 |
50/60Hz |
0°C: 230V, 8.9A, 2025W
-20°C: 230V, 1780W |
| Climacell EVO 222 |
50/60Hz |
0°C: 230V, 9.6A, 2200W
-20°C: 230V, 1780W |
| Climacell EVO 404 |
50/60Hz |
0°C: 230V, 13.7A, 3150W
-20°C: 230V, 2115W |
| Climacell EVO 707 |
50/60Hz |
0°C: 230V, 14.8A, 3400W
-20°C: 230V, 2640W |
| Climacell EVO 1212 |
50/60Hz |
0°C: 230V, 15.2A, 3500W
-20°C: 230V, 3215W |
*Capable of maintaining temperatures from 10°C to 90°C with humidity control.
Detailed Specifications:
| SKU |
Model # |
Heat-Up Time |
Door Recovery Time |
Humidity Accuracy |
CO2 Range |
Control |
| MC 001663 |
Climacell EVO 111 |
<13 min to 37°C |
<4 min to 37°C
<5 min to 50°C |
2 % RH (≥21°C) |
0.1 - 20 % |
N2/O2 0.1 - 20 % |
| MC 001665 |
Climacell EVO 222 |
<13 min to 37°C |
<3 min to 37°C
<6 min to 50°C |
2 % RH (≥21°C) |
0.1 - 20 % |
N2/O2 0.1 - 20 % |
| MC 001667 |
Climacell EVO 404 |
<13 min to 37°C |
<3 min to 37°C
<7 min to 50°C |
2 % RH (≥21°C) |
0.1 - 20 % |
N2/O2 0.1 - 20 % |
| MC 001669 |
Climacell EVO 707 |
<13 min to 37°C |
<6 min to 37°C
<6 min to 50°C |
2 % RH (≥21°C) |
|
N2/O2 0.1 - 20 % |
| MC 001657 |
Climacell EVO 1212 |
<13 min to 37°C |
<10 min to 37°C
<10 min to 50°C |
2 % RH (≥21°C) |
|
N2/O2 0.1 - 20 % |
Additional Information:
| SKU |
Max. # of Shelves |
Shelf Capacity |
Dimensions |
Internal Dimensions |
Display |
Shelf Type |
Interior Material |
Hinge |
Door Type |
| MC 001663 |
4 Shelves |
44.1 lbs |
30.7 in x 29.7 in x 47.8 in |
21.3 in x 15.0 in x 21.0 in |
Touch Screen |
Adjustable |
AISI 304 Stainless Steel |
Right |
Solid Swing Door |
| MC 001665 |
7 Shelves |
44.1 lbs |
30.7 in x 34.8 in x 57.1 in |
21.3 in x 20.9 in x 30.1 in |
Touch Screen |
Adjustable |
AISI 304 Stainless Steel |
Right |
Solid Swing Door |
| MC 001667 |
10 Shelves |
66.1 lbs |
43.1 in x 34.8 in x 74.4 in |
21.3 in x 20.9 in x 55.7 in |
Touch Screen |
Adjustable |
AISI 304 Stainless Steel |
Right |
Solid Swing Door |
| MC 001669 |
19 Shelves |
66.1 lbs |
59.2 in x 34.8 in x 74.4 in |
37 in x 20.9 in x 55.7 in |
Touch Screen |
Adjustable |
AISI 304 Stainless Steel |
Right |
Solid Swing Door |
| MC 001657 |
19 Shelves |
110.2 lbs |
99.6 in x 35.4 in x 75.6 in |
21.3 in (x3) x 20.9 in x 55.7 in |
Touch Screen |
Adjustable |
AISI 304 Stainless Steel |
Left and Right |
Dual Solid Swing Door |
