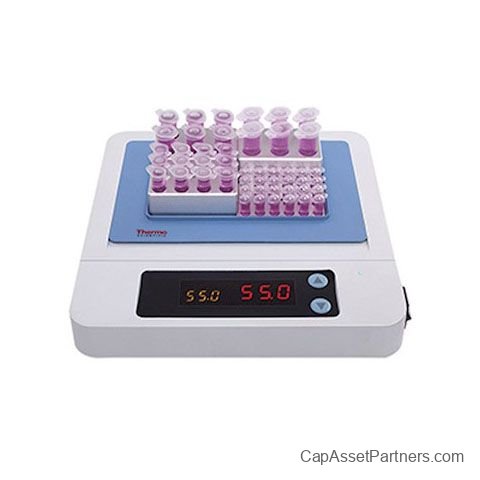

Compact Digital Dry Bath/Block Heater
Availability: In Stock! Lead times may vary.
Optimize your laboratory workspace with the Compact Digital Dry Bath/Block Heater, expertly engineered to deliver exceptional performance and versatility for your experimental procedures. This innovative dry bath is designed for precision, ensuring efficient temperature control across various applications.
Key Features:
- Superior built-in temperature-sensing probe for outstanding accuracy and control.
- Fast heating capabilities with an average heating time of 16 minutes for the single model and 20 minutes for the double model (from 30°C to 100°C).
- Multiple block combinations accommodate a wide range of tube sizes, ensuring maximum versatility.
- 12V low voltage power input for enhanced safety.
- Available in two models to suit different application volume demands: a single model (S) and a double model (D).
- Convenient, easy-to-read digital display for seamless operation.
- Compact footprint and lightweight design make it perfect for crowded benchtops.
Applications:
- Enzyme-substrate reactions
Specifications:
| Feature |
Compact Dry Bath S |
Compact Dry Bath D |
| Temperature Range (Metric) |
Ambient +2° to 100°C (Ambient at 25°C) |
Ambient +2° to 100°C (Ambient at 25°C) |
| Temperature Uniformity |
≤ ± 0.5°C |
≤ ± 0.5°C |
| Temperature Accuracy |
≤ ± 0.5°C |
≤ ± 0.5°C |
| Heating Rate |
16 min. average (30° to 100°C with one 0.2mL block) |
20 min. average (30° to 100°C with one 0.2mL block) |
| Voltage |
100-240V |
100-240V |
| Dimensions (L x W x H) |
185 x 185 x 25mm (7.3 x 7.3 x 1 in.) |
200 x 200 x 25mm (7.9 x 7.9 x 1 in.) |
| Weight |
2.2 lb. (<1kg) |
3.3 lb. (<1.5kg) |
| Plug Type |
US style |
US style |
| No. of Blocks |
Full block, 2 half blocks, 4 quarter blocks, or 1 half and 2 quarter blocks |
2 full blocks, 4 half blocks, 8 quarter blocks, or a combination of full/half and quarter blocks |
| Controller Type |
Digital |
Digital |
