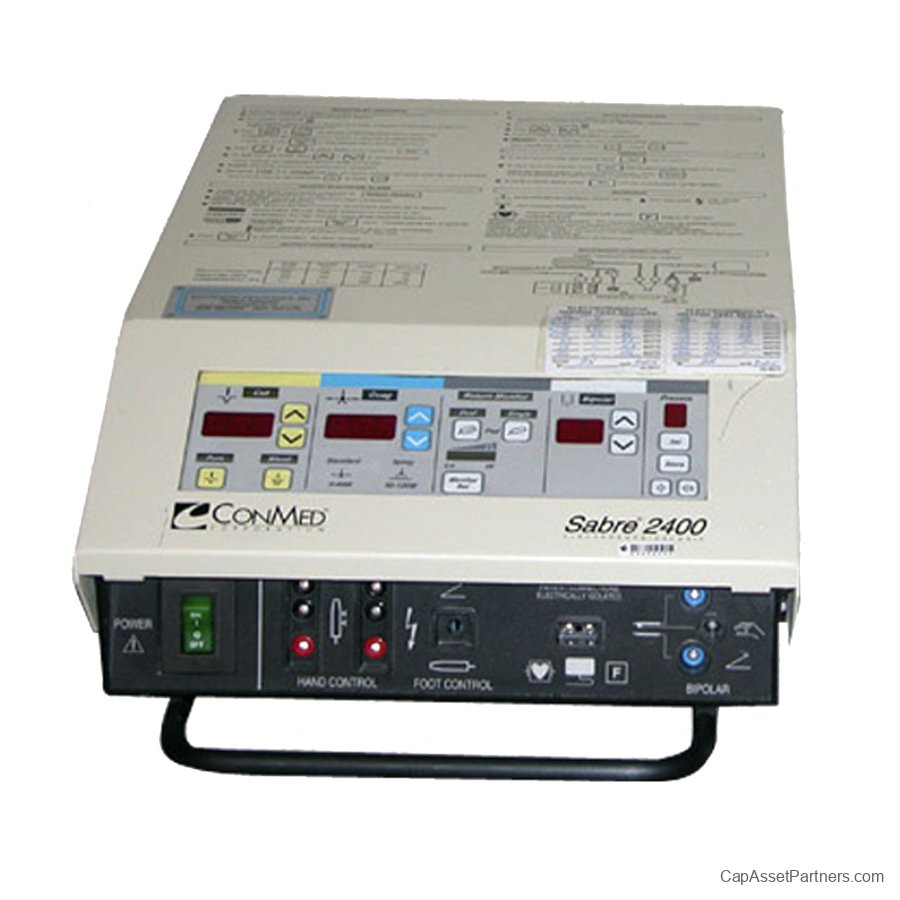

Conmed Sabre 2400 Electrosurgical Generator
The Conmed Sabre 2400 is engineered to provide exceptional power and performance, catering to the rigorous demands of today’s surgical professionals. This advanced electrosurgical device is equipped with innovative features that enhance surgical precision and efficiency.
With its patented controlled output voltage in the cut mode, the Sabre 2400 ensures thermal damage-free cutting, expertly adjusting as the electrosurgical electrode moves through varying tissue types. This adaptability guarantees outstanding cutting performance, making it ideal for highly demanding surgical applications.
Surgeons can also take advantage of the Blend mode, designed to achieve superior hemostasis while cutting, significantly improving patient outcomes. Additionally, the auto spray feature allows for effective coagulation at power settings above 50 watts, optimizing the surgical process further.
The enhanced bipolar mode of the Sabre 2400 allows for seamless hand and foot-switching bipolar coagulation, minimizing tissue sticking and ensuring precision in every operation. Trust the Conmed Sabre 2400 for your surgical needs, where power meets control for optimal surgical performance.
Conmed Sabre 2400 Specifications:
General:
- Dispersive Electrode Monitor:
- Dual foil dispersive electrode: alarms above 150 ohms; 20% increase in resistance above set point.
- Single foil dispersive electrode: two-wire continuity detector alarms at 10 ohms and above.
- Coagulation Mode: Superior spray coagulation at power settings above 50 watts.
- Pulse Repetition Frequency:
- Bipolar: 20.0 kHz ± 0.01%
- Input Voltage: 104-127 VRMS, 50-60 Hz, calibrated at 120V
- Input Current: Pure cut at 300: 7.0A max
- Line Frequency Leakage: Patient connections to neutral
- RF Leakage Current: Less than 100 mA (200 ohms to ground)
- Power Decrease: 1% is typical; pure cut set to 150 watts for 20 seconds
- Dimensions: 6.75 in (H) × 14.25 in (W) × 21.5 in (D) (17.1 cm × 36.2 cm × 54.6 cm)
