Constant Temperature Oil Baths, 4-7L

Introducing the exceptional Constant Temperature Oil Baths, ideal for laboratory settings where precision in temperature control is paramount. Designed to cater to a variety of applications, these oil baths provide reliable temperature maintenance with an emphasis on user-friendliness and safety.

Key Features & Specifications

General Specifications

• Capacity: Available in models with capacities ranging from 4L to 7L.
• Operating Temperature Range: Room temperature +5°C to 199°C, depending on the model.
• Temperature Accuracy: Up to ±0.5°C, ensuring precise thermal regulation.

Model Highlights

BO302A/312A

• White LED digital display with easy key entry; minimum digit set to 1°C.
• Flat-shaped bath design enables effortless cleaning with no internal heater or sensor obstructing access.
• Comprehensive safety functions for user protection.
• PID control temperature control system ensures consistent performance.
• Please Note: 220-230V models include a Rounded Terminal for M4 and do not come with a power plug.

BO410

• Convenient digital temperature setting using ▲/▼ keys.
• Removable oil tank allows for easy cleaning and oil changes.
• Heating components located outside the water tank to enhance safety.
• Exclusive function connection for operation with rotary evaporators.
• Microprocessor-controlled PID system for optimal temperature management.
• Please Note: 220-240V models include a Rounded Terminal for M4 and do not come with a power plug.

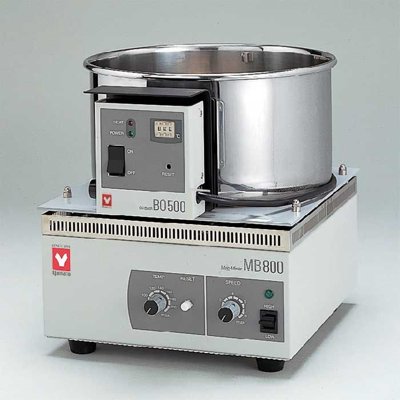

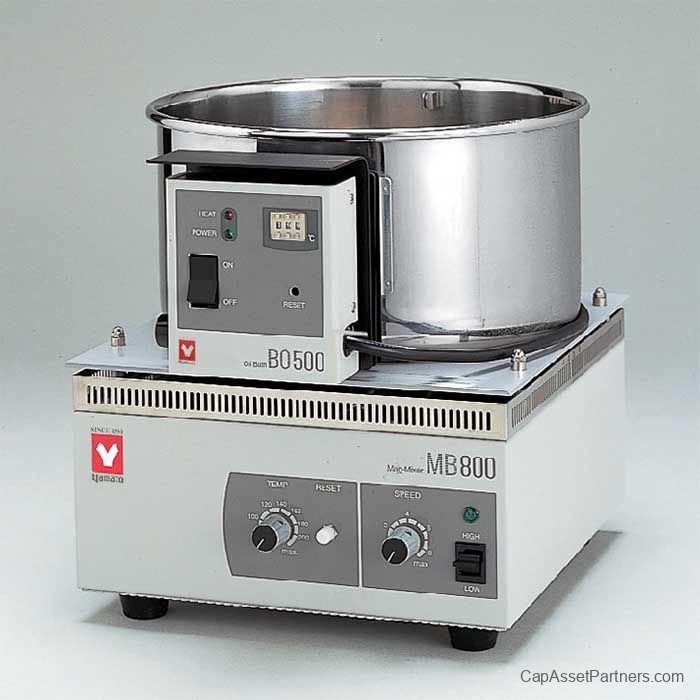

BO500

• Constructed from stainless steel for enhanced durability.
• Includes a bath protection sheet to prevent operator injuries.
• Compatible with MB800 magnetic stirrer for improved mixing performance.
• Proportional control system for accurate temperature regulation.
• Please Note: 220V models include a Rounded Terminal for M4 and do not come with a power plug.

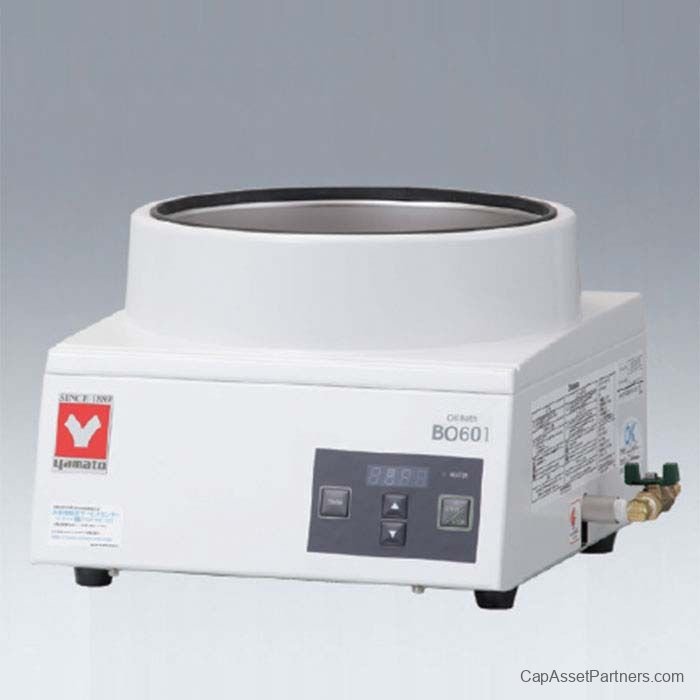

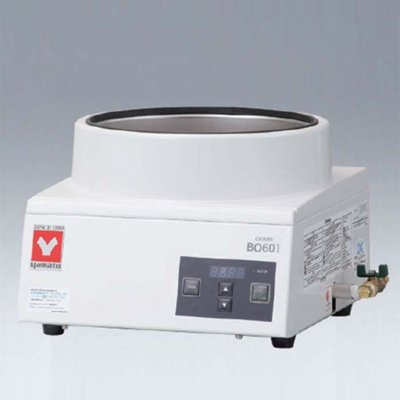

BO601

• Features digital temperature settings using ▲/▼ keys for easy adjustments.
• Oil tank design protects against burns from accidental contact.
• Equipped with a drain for easy maintenance.
• Microprocessor PID control for consistent and reliable temperature management.

Specifications Table

SKU	Includes	Operating Temperature Range	Capacity	Temperature Accuracy
BO-500A-220V	MB800 Magnetic Stirrer Set	Room temperature +5~199°C	5.2 L	± 0.5°C
BO-312-A	-	Room temperature +10~180°C	5 L	± 2.0°C
BO-601-115V	-	Room temperature +5~180°C	7 L	± 2.0°C (at 100°C)
BO-500A-115V	MB800 Magnetic Stirrer Set	Room temperature +5~199°C	5.2 L	± 0.5°C
BO-302-A	-	Room temperature +10~180°C	5 L	± 2.0°C
BO-410	-	Room temperature +10~180°C	4 L	± 2.0°C (at agitation)

Additional Internal and External Dimensions

SKU	Internal Dimensions	External Dimensions
BO-500A-220V	Diameter 240 x H130mm	250 x 270 x 150mm
BO-312-A	Diameter 262 x H240mm	340 x 349 x 231mm
BO-601-115V	Diameter 250 x H150mm	310 x 360 x 230mm
BO-500A-115V	Diameter 240 x H130mm	250 x 270 x 150mm
BO-302-A	Diameter 262 x H240mm	340 x 349 x 231mm
BO-410	Diameter 240 x bottom 165 x H122mm	340 x 349 x 231mm
