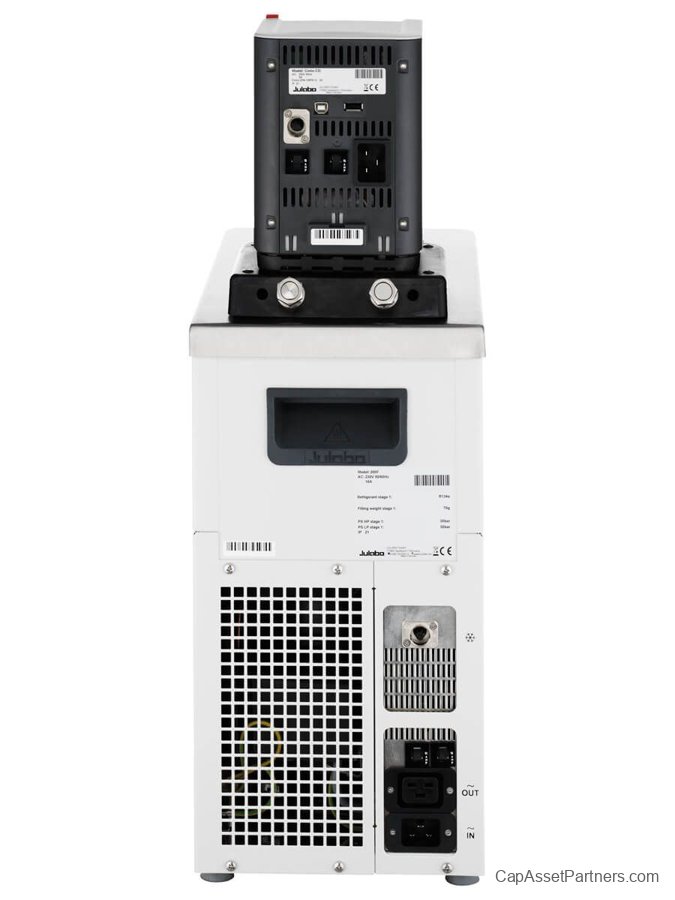

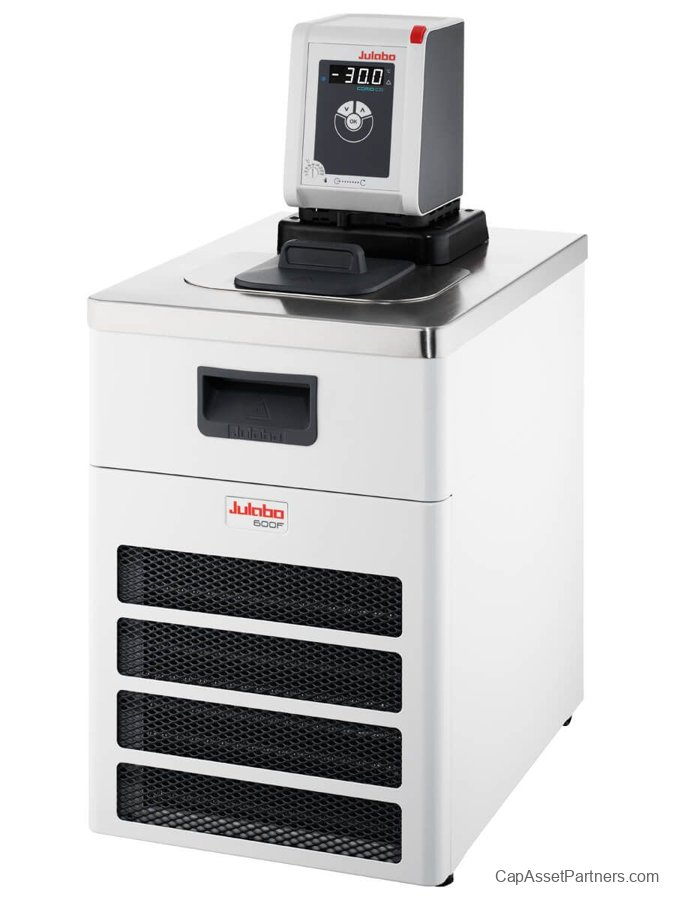

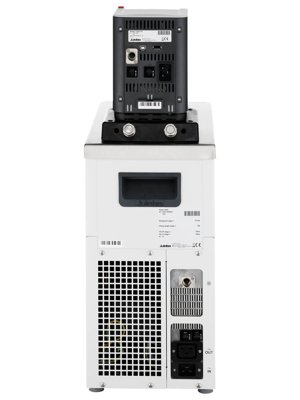

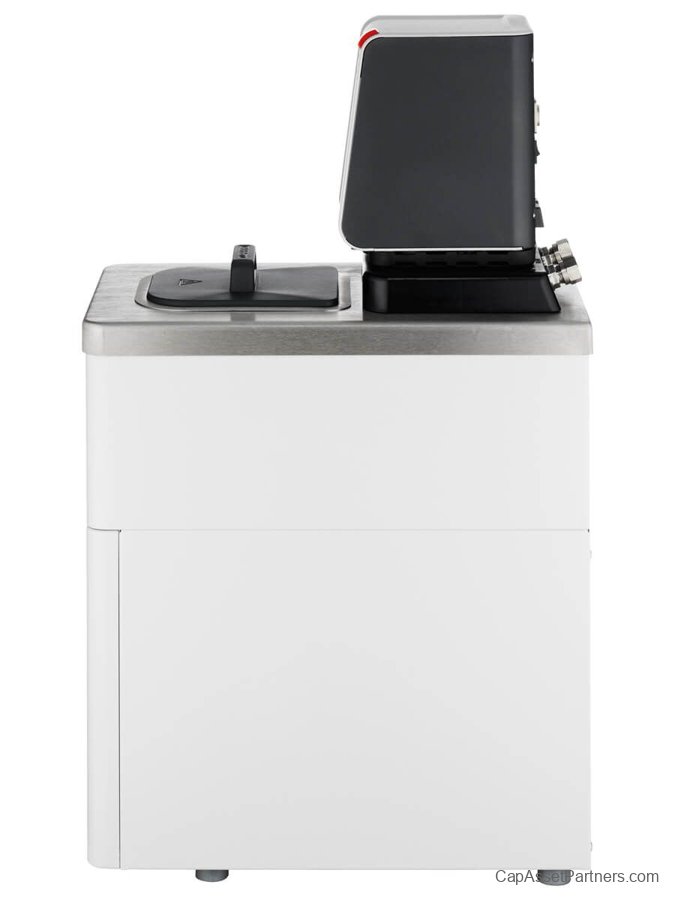

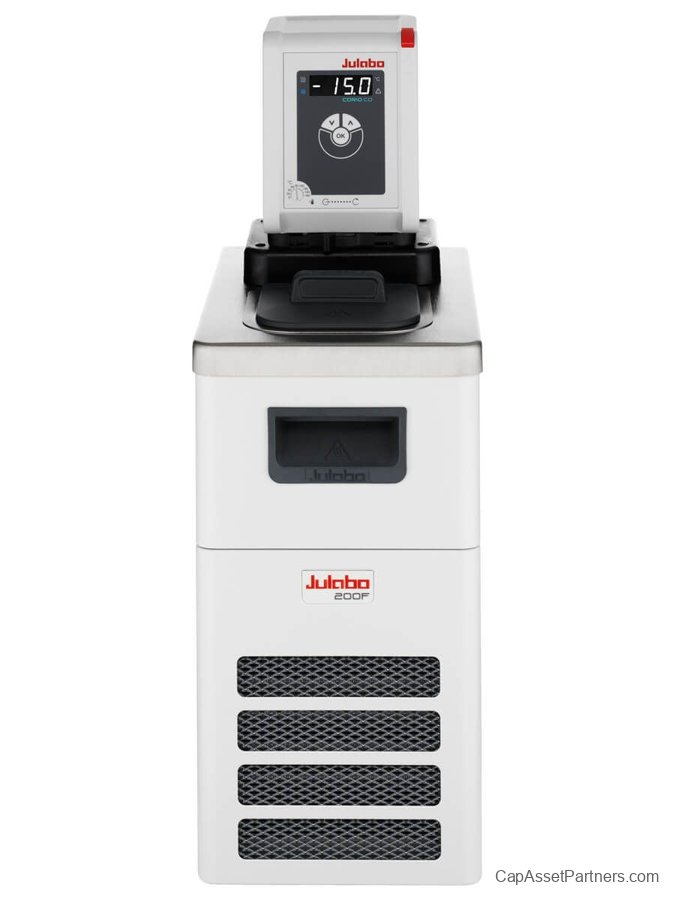

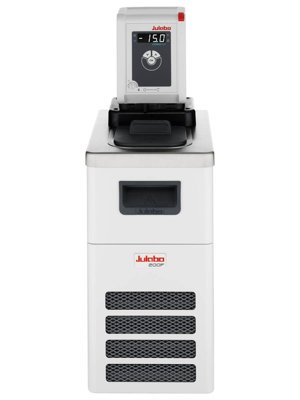

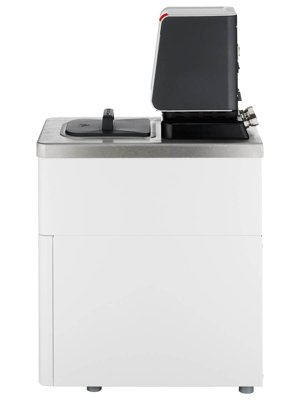

CORIO™ CD Series Refrigerated/Heating Circulators
Introducing the CORIO™ CD Series Refrigerated/Heating Circulators, a high-performance solution crafted for routine laboratory tasks and industrial applications. These circulators offer exceptional value with a combination of reliability, functionality, and innovative design, setting a new standard in temperature control technology.
Key Features
- Versatile models designed for both internal and external applications.
- Bright, white display that ensures easy readability for efficient operation.
- Quiet operation minimizes noise in laboratory environments.
- Simple pump change-over allows effortless switching between internal and external circulation.
- External pump connections (M16x1) for enhanced compatibility.
- USB connectivity for easy data transfer and management.
- Space-efficient cooling coil design increases usable space within the bath tank.
- Includes accessory items such as a bath lid and drain tap for added convenience.
- Removable ventilation grid facilitates maintenance and upkeep.
- Designed without side vents for improved preformance and aesthetics.
- Class III (FL) compliant according to DIN 12876-1 standards.
Specifications
| SKU |
Flow Rate |
Cooling Capacity |
Heating Capacity |
Heaters |
Flow Pressure |
Filling Volume |
| 9012701.02 |
15 L/Min |
220W at 20°C |
1kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
3 to 4 L |
| 9012702.02 |
15 L/Min |
220W at 20°C |
1kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
3 to 4 L |
| 9012703.02 |
15 L/Min |
310W at 20°C |
1kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
3 to 4 L |
| 9012703.13 |
15 L/Min |
310W at 20°C |
2kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
3 to 4 L |
| 9012704.02 |
15 L/Min |
600W at 20°C |
1kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
5 to 7.5 L |
| 9012704.13 |
15 L/Min |
600W at 20°C |
2kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
5 to 7.5 L |
| 9012705.02 |
15 L/Min |
600W at 20°C |
1kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
8 to 10 L |
| 9012705.13 |
15 L/Min |
600W at 20°C |
2kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
8 to 10 L |
| 9012707.02 |
15 L/Min |
1 kW |
1kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
5 to 7.5 L |
| 9012707.13 |
15 L/Min |
1 kW |
2kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
5 to 7.5 L |
| 9012708.13 |
15 L/Min |
1 kW |
2kW |
1kW @ 115V (2kW @ 230V) |
5.08 psi |
46 to 56 L |
Additional Information
| SKU |
Controller |
Temperature Resolution |
Temperature Stability |
Voltage |
Temperature Display |
| 9012701.02 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
115V/60Hz |
LED |
| 9012702.02 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
115V/60Hz |
LED |
| 9012703.02 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
115V/60Hz |
LED |
| 9012703.13 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
230V/60Hz |
LED |
| 9012704.02 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
115V/60Hz |
LED |
| 9012704.13 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
230V/60Hz |
LED |
| 9012705.02 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
115V/60Hz |
LED |
| 9012705.13 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
230V/60Hz |
LED |
| 9012707.02 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
115V/60Hz |
LED |
| 9012707.13 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
230V/60Hz |
LED |
| 9012708.13 |
PID temperature control |
0.1 °C |
+/- 0.03 °C |
230V/60Hz |
LED |
