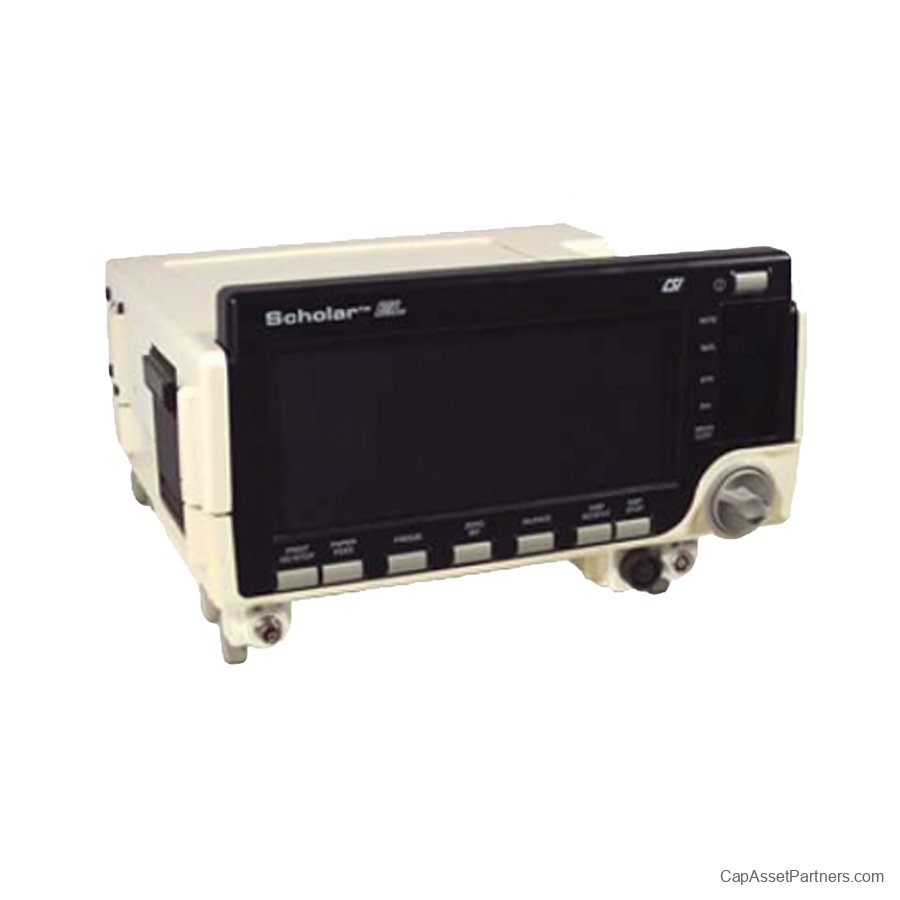

Criticare Scholar EL Multi-Parameter Monitor

Criticare Scholar EL Multi-Parameter Monitor

• Advanced Patient Monitoring Solution

The Criticare Scholar EL Multi-Parameter Monitor is an essential tool for healthcare professionals, providing reliable and comprehensive monitoring of vital signs in various medical settings. This innovative system allows for the simultaneous tracking of up to ten vital parameters, all with the convenience of a central station capability.
Key Features:

• Comprehensive Monitoring: Capable of monitoring up to ten vital parameters in one integrated system, ensuring thorough oversight of patient health.

• Battery Backup: Stay prepared for any situation with built-in battery backup, allowing continuous monitoring even during power outages.

• User-Friendly Interface: The interactive data card technology offers an intuitive and accessible way to manage patient information.

• Robust Protection Measures: Equipped with ESI suppression, pacer rejection, and defibrillator protection for enhanced safety and reliability in critical environments.

Experience the reliability and versatility of the Criticare Scholar EL Multi-Parameter Monitor, designed to meet the demands of modern healthcare. Optimize your monitoring capabilities with this advanced solution to ensure the utmost care for your patients.

Criticare Scholar EL Multi-Parameter Monitor Specifications

Physical Weight & Dimensions

• Height: 16.5 cm (6.5 in)

• Width: 34.3 cm (13.5 in)

• Depth: 30.5 cm (12 in)

• Weight: 5.5 Kg (12 lbs) typical

ECG

• Number of Leads: 3 or 5 lead wire cables

• Lead Selection: I, II, III, a VR, aVL, aVF, V (5 wire cable)

• Gain Selection: 0.5 mV, 1 mV, 2 mV, 4 mV, 8 mV full scale (all ± 2%)

• Frequency Response: Diagnostic: 0.05-100 Hz (-3dB); Monitor: 0.5-40 Hz (-3 dB)

• Sweep Speed: 6.25, 12.5, 25, 50 mm/sec

Heart Rate Display Alarms

• User Selectable Choices: Primary: ECG; Choices: ECG, Pleth, ART, PA, PW

• Range: 20-300 BPM

• Update Time: Every beat

• Accuracy: ± BPM

• Alarm Limit Range: 80-300 BPM (high); 20-150 BPM (low)

Non-Invasive Blood Pressure

• Technique: Oscillometric during inflation

• Max Inflation Pressure: Adult 300 mmHg; Neonate: 150 mmHg

• Measurement Cycle: <40 second average (0-300 mmHg: adult cuff)

• Automatic Measurement Cycles: 1, 3, 5, 15, 30, 60 minutes

Invasive Blood Pressure (Optional)

• Number of Channels: 4

• User Selectable Labels: ART, PA, ICP, CVP, PW

• Isolation: 4 kV RMS, 5.5 kV peak from ground related currents

• Pressure Range: -10 mmHg to 300 mmHg

• Zero Offset: ±150 mmHg

• Probe Impedance: 300-2500 input ohms

• Frequency Response: 0-20 Hz

• Input Impedance: 820K @ 20 Hz; >100M @ DC

• Transducer Sensitivity: 5 µV/V/mmHg

• Zero: Auto push button

• Drift: ±1 mmHg

• Accuracy: ±1 mmHg

• Scale Range: -10 to 10, 0 to 20, 0 to 40, 0 to 60, 0 to 100, 0 to 150, 0 to 200, 0 to 300

• Display: Systolic, diastolic, mean pressure

Impedance Respiration

• Rate: 0-150 breaths/minute

• Resolution: 1 breath/minute

• Accuracy: > ±1% or ±1 breath/minute

Alarms

• Alarm Indication: Audible, visual

• Alarm Silence: Yes (2 minutes, or permanent)

Temperature (Optional)

• Number of Channels: 2

• Range: 20-45°C (68-113°F); ±0.5°C (20-34°C); ±0.2°C (34-41°C); ±0.5°C (41-45°C)

• Display Resolution: 0.1°C or 0.1°F

Oxygen Saturation

• Averaging Time: Selectable 3-21 seconds

• Search Time: Selectable, 1-40 seconds

• Waveform: User selectable

• Gain: User selectable

• Audio: Beep with each detected pulse, pitch varies with oxygen saturation

• Range: 1-99%

• Resolution: 1%

• Accuracy: ±2% (70-99%); ±3% (50-70%)

• High Saturation Alarm: Range: off, 70-99%

• Low Saturation Alarm: Range: off, 1-99%
