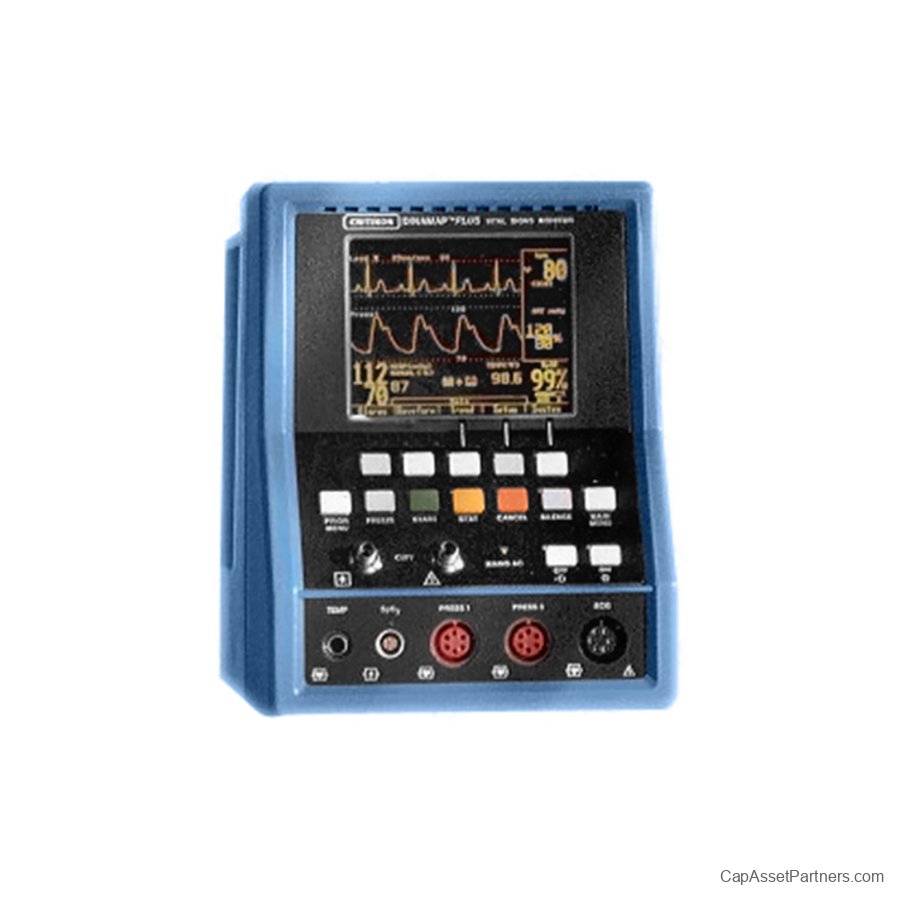

Critikon 8720 Multi-Parameter Monitor

Critikon 8720 Multi-Parameter Monitor: Your Reliable Partner in Patient Care
The Critikon 8720 Multi-Parameter Monitor is an advanced solution designed to meet the diverse needs of medical professionals. This monitor is available in four distinct configurations, allowing you to select the technology that best fits your clinical requirements.
Equipped with the renowned DINAMAP® Technology, known as the "Gold Standard" in blood pressure accuracy, the Critikon 8720 ensures precision in monitoring vital signs. The device is suitable for use with adults, pediatrics, and neonates, making it an indispensable tool in various healthcare settings.
Key features include:

• Accurate Monitoring: Maintains accuracy even when patients move, ensuring reliable readings.

• One-Button Operation: Effortlessly take connected vital signs with the press of a single button, enhancing workflow efficiency.

• STAT Mode: Quickly obtain blood pressure readings in emergency situations for timely decision-making.

• Flexible Monitoring Options: Choose between single determinations or automatic blood pressure monitoring for optimal patient care.

• Customizable Pressure Settings: User-adjustable target inflation pressure for tailored assessments.

• Temperature Measurement: Includes predictive oral and rectal temperature capabilities for comprehensive monitoring.

• Integrated Printing: Optional built-in printer available for immediate documentation of vital signs.

With its user-friendly design and robust functionality, the Critikon 8720 Multi-Parameter Monitor is an essential device that enhances patient care and streamlines clinical operations. Experience the most trusted technology in patient monitoring today.

Critikon 8720 Multi-Parameter Monitor Specifications:

Noninvasive Blood Pressure:

• Heart Rate Range: 10-250 bpm

• Connector: AAMI recommended, ECGC; MS3102A-14S-6S

• Leads: Selectable, I, II, III Lead off detection

• Band Width: 0.5-40 Hz

• Sweep Speed: 12.5, 25, and 50 mm/sec

• Gain: 1 mV to 8 mV full scale, selectable in 5 steps

• QRS Detection Tone: Volume selectable from 0 (off) to 15

• Alarm Limits: Heart rate - high, 80-250 bpm; low, 10-140 bpm

ECG:

• Heart Rate Range: 10-250 bpm

• Connector: AAMI recommended, ECGC; MS3102A-14S-6S

• Leads: Selectable, I, II, III Lead off detection

• Band Width: 0.5-40 Hz

• Sweep Speed: 12.5, 25, and 50 mm/sec

• Gain: 1 mV to 8 mV full scale, selectable in 5 steps

• QRS Detection Tone: Volume selectable from 0 (off) to 15

• Alarm Limits: Heart rate - high, 80-250 bpm; low, 10-140 bpm

Oxygen Saturation:

• Accuracy: ±2% at 90-99%; ±3% at 75-89%; unspecified under 75%

• Saturation Range: 40-99%

• Pulse Rate: From 30-250 bpm

- Pulse Averaging: User selectable for 0 to 30 sec. in increments of

• Preset at 6 seconds at power turn on.

• Saturation Pitch Indicator: Pitch changes with saturation. Volume selectable from 0 (off) to 15.

• Alarm Limits: Saturation - high, 90-99%; low, 40-95%

Alarm Functions:

• System: Internal system test performed at power-up and during operation

• Volume: Adjustable from 1 to 15 on all parameters

• NIBP: Procedural alarm for overpressure, excess determination time, excess pump-up time, no determination

• SpO2: Procedural alarms for low signal, probe disconnect, probe failure

Mechanical:

• Weight: 9.8 lbs (4.4 kg)

• Dimensions: 9.25 in (23.5 cm) (H) × 28.3 cm (11.1 in) (W) × 21.6 cm (8.5 in) (D)

• Display: Electroluminescent, 320 × 256 pixels; viewing area, 3.0 in (7.6 cm) (H) × 3.8 in (9.7 cm) (W)

• Power Requirements: 88-268 VAC; 47-63 Hz

• Fuse Requirements: 2.0 amps

• Leakage Current: <100 µA
