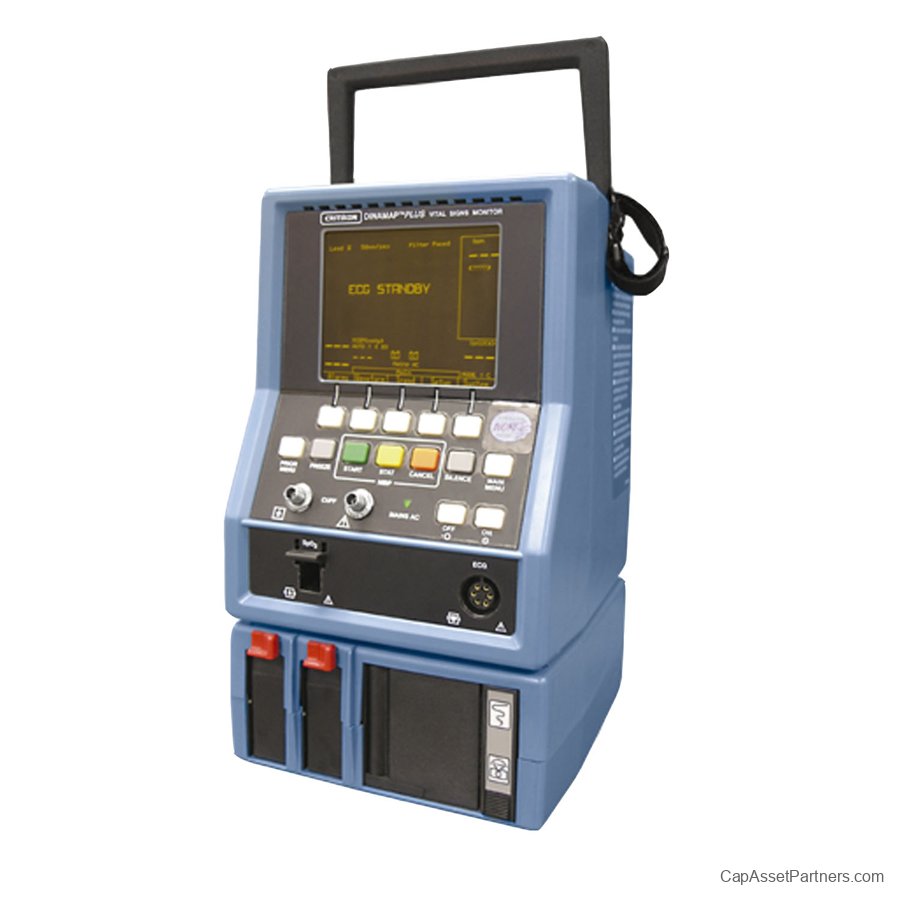

Critikon Dinamap Plus Monitor

• 9700 Series: Advanced Patient Monitoring Solution

The Critikon Dinamap Plus Monitor

• 9700 Series is an essential tool for non-invasive and invasive patient monitoring across various clinical environments. Designed for versatility, this monitor seamlessly transitions with patients throughout hospital departments, including emergency, radiology, recovery, and cardiac step-down. It’s also suitable for specialized procedures in satellite areas and during surgeries in physician offices or ambulatory surgery centers.

One of the standout features of the Dinamap Plus Monitor is its ability to operate on both battery power—when equipped with an optional battery or printer module—and AC power using a standard power cord. This flexibility ensures continuous patient monitoring, regardless of the setting.
Product Configuration:

• 9700 Model Series - NIBP / SpO2 (Optional battery & printer available upon request)

Key Features:

• Lightweight and Portable: The monitor is easy to transport, making it ideal for dynamic clinical environments.

• High Visibility Display: Enhanced clarity in various lighting conditions with excellent angled views for optimal data readability.

• Active Parameter Display: Data and waveforms are shown only when the monitored parameter is active, streamlining the information presented.

• User-Friendly Navigation: Prior Menu and Main Menu keys facilitate quick and intuitive navigation through settings.

• Convenience at Your Fingertips: Equipped with five menu-driven keys for easy display changes to cater to specific monitoring needs.

• Alert System: Features audible and visible indicators for parameters exceeding user-defined limits, ensuring timely responses to abnormal conditions or hardware issues.

• Adjustable Audio Alerts: Volume control for alarms and pulse signals guarantees alerts are always audible, enhancing patient safety.

Enhance your clinical monitoring capabilities with the Critikon Dinamap Plus Monitor

• 9700 Series, a reliable partner in delivering top-notch patient care.

Critikon Dinamap Plus Monitor

• 9700 Series Specifications

General:

• Monitor: 9.8 lb / 4.45 kg - (9.25 h × 7.2 w × 8.5 d inches) / (23.5 h × 18.3 w × 21.6 d cm)

• Battery Module: 3.85 lb / 1.75 kg - (1.5 h × 7.2 w × 8 d inches) / (3.8 h × 18.3 w × 20.3 d cm)

• Printer Module: 6 lb / 2.7 kg - (3.32 h × 7.12 w × 8.13 d inches) / (8.4 h × 18.1 w × 20.6 d cm)

• AC Input: 88-268 VAC; 47-63 Hz

• AC Input Power: 20-35 watts typical, including battery charger; 70 watts maximum

• AC Line Fuses: 2.0 A (F2A, fast blow), 250V, 3AG

• DC Input Voltage: 12 to 32 VDC

• DC Input Power: 15-21 watts typical; 42 watts maximum

• Storage Battery Fuses: 5.0 A (F5A, fast blow), 125V, 2AG

• Leakage Current: <100 µA

• Power Cable:

• Domestic: 10 ft, detachable, blue jacketed, 16 gauge terminated with 3-prong hospital grade plug.

• International: 10 ft, detachable, blue jacketed, 16 gauge unterminated.

• Battery of Printer Module Storage Battery Operation: Two batteries; sequential operation, one hour per battery. Standard 10-hour rating is 2.3 Amperes per hour.
