CVO-10 Vacuum Oven & Packages

Unmatched Performance and Advanced Features

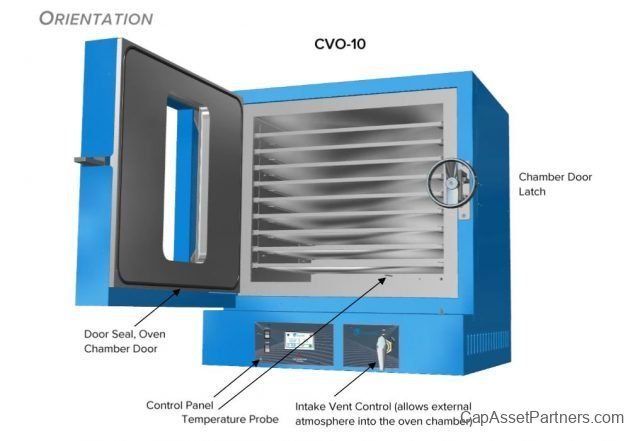

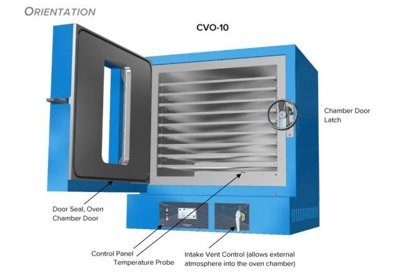

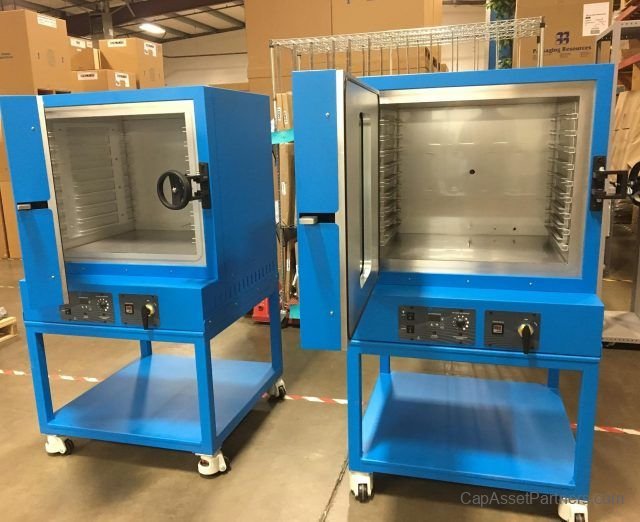

The CVO-10 Vacuum Oven elevates your laboratory experience with its superior design and functionality tailored for precision and efficiency. This NRTL certified device features adjustable aluminum shelves, allowing for optimal space utilization. The walls are lined with heat-conductive copper, ensuring improved temperature transfer and uniformity throughout the chamber.

Key Features:

• Stable Temperature Control: Enjoy consistent results with stable temperature control, ensuring accuracy during your experiments.
• Visibility: Equipped with bright LED lights, the oven window offers enhanced visibility of sensitive materials without interrupting operation.
• Digital Vacuum Gauge: Features a user-friendly digital vacuum gauge that provides readings in both inches of mercury and torr.

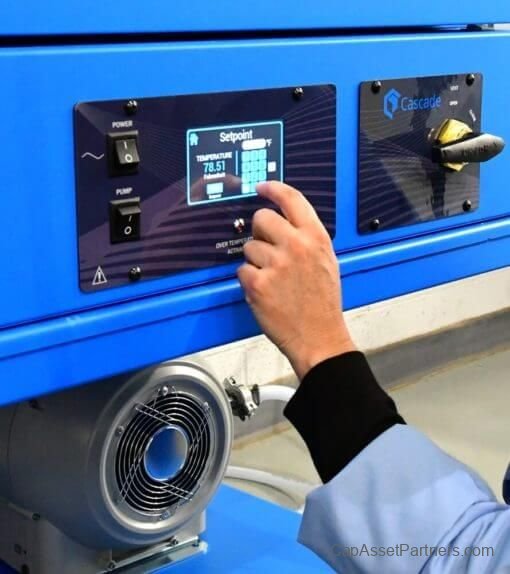

• Touch Panel Control: The intuitive LED touch panel allows easy operation, including setting adjustments and pump control.
• Robust Capacity: Each aluminum shelf supports up to 50 lbs, ensuring you can work with a variety of materials.
• Efficient Venting: Designed with a large 1/2-inch diameter vent line for faster venting, optimizing your workflow.

Technical Specifications:

Oven Requirements:

The CVO-10 is specifically designed for indoor use within a temperature range of 15°C to 40°C, maintaining a relative humidity of no more than 80%. Avoid placing the oven near heat sources, air vents, fast-moving air currents, or direct sunlight, as these factors can adversely affect temperature accuracy.

Included Packages:

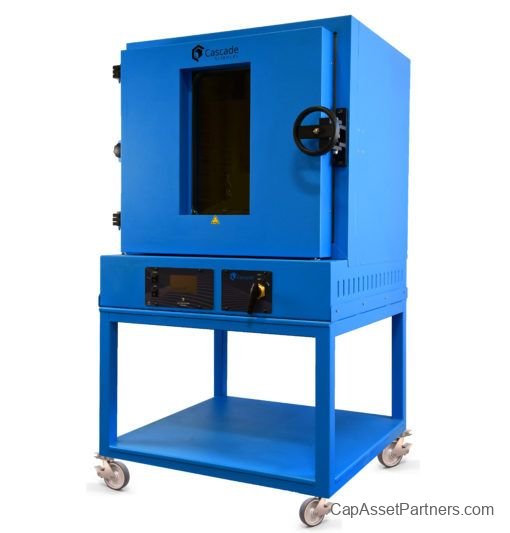

Standard CVO-10 Package:

• CVO-10 vacuum oven
• Heavy-duty industrial mobile cart
• 9 shelves
• Power cord
• Vacuum connection kit

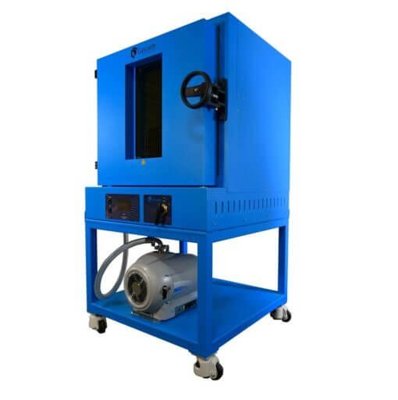

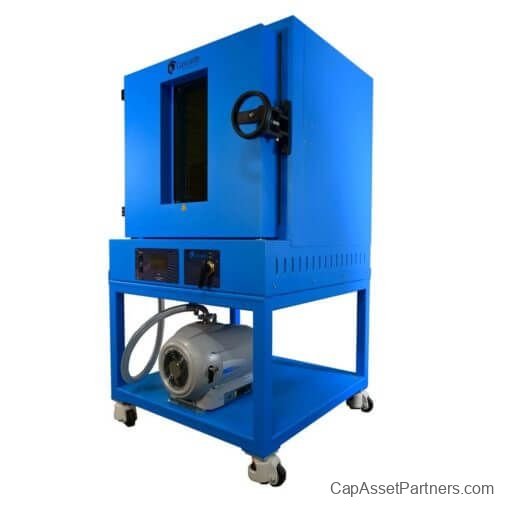

CVO-10 Pro Package:

• CVO-10 vacuum oven
• Heavy-duty industrial mobile cart
• 9 shelves
• MAXEVAP Connection Kit
• Power cord
• Agilent IDP15 oil-free vacuum pump

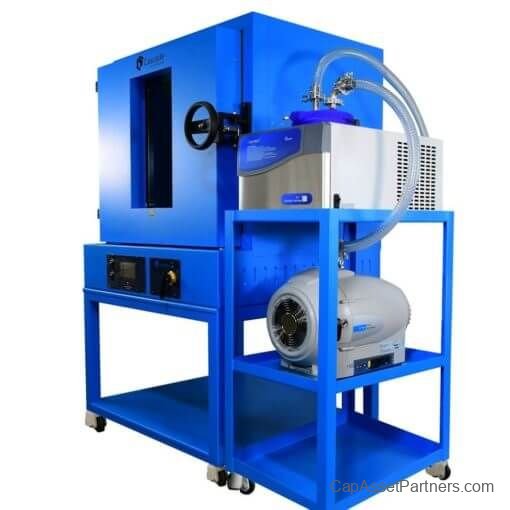

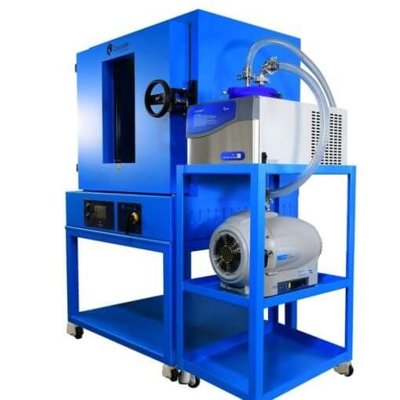

CVO-10 Pro Package with MAXTRAP50:

• CVO-10 vacuum oven
• Heavy-duty industrial mobile cart
• 9 shelves
• MAXEVAP connection kit
• Power cord
• MAXTRAP50 vacuum cold trap to -50°C
• Agilent IDP15 oil-free vacuum pump

CVO-10 Pro Package with MAXTRAP150:

• CVO-10 vacuum oven
• Heavy-duty industrial mobile cart
• 9 shelves
• MAXEVAP connection kit
• Power cord
• MAXTRAP150 vacuum cold trap to -150°C
• Agilent IDP15 oil-free vacuum pump
• All connections and hoses

Agilent IDP15 Specifications:

• Oil-free, scroll technology
• 9 CFM capacity
• Ultimate pressure of 0.01 Torr
• Hour meter tracks service intervals
• Two gas ballast ports
• 1-year warranty

MAXTRAP Cold Trap Features:

• 304 stainless steel construction
• Viton gasket for superior sealing
• Available with -105°C refrigerated base or -50°C mechanical base
• Eco-friendly refrigerants (CFC/HFC free)

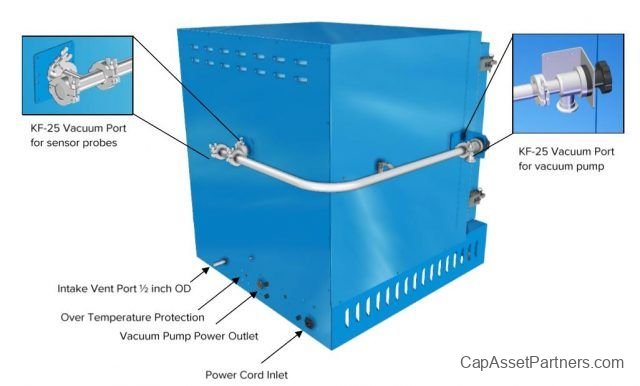

• KF-25 inlet/outlet with connection line and hardware
• Power cord included
• 3mm neoprene insulator cap

Maintenance Guidelines:

Periodic cleaning is necessary to maintain optimal performance. Avoid spray-on cleaners, solvents, or any chemical agents that may damage paint or stainless steel surfaces. Specifically, do not use chlorine-based bleaches or abrasive cleaners.
