CX Series Touchscreen Solid Door Laboratory Refrigerators
The CX Series Touchscreen Solid Door Laboratory Refrigerators are meticulously engineered to cater to the stringent demands of modern laboratory environments. Incorporating advanced variable speed compressors (VSCs), these refrigerators not only deliver enhanced cooling performance but also operate almost silently, proving to be a reliable asset in your workspace while significantly reducing energy consumption.
These state-of-the-art models are equipped with a sophisticated PID microprocessor temperature control system, ensuring precise temperature management crucial for laboratory integrity. The intuitive LCD touchscreen interface allows for easy operation and monitoring, while robust alarm systems provide timely notifications for temperature and power anomalies.
Key Features:
- PID microprocessor controller for accurate temperature regulation.
- Hermetic variable speed compressor operating between 2000-4500 rpm for optimal efficiency.
- Fin and tube evaporator design complemented by a high-efficiency fan.
- Innovative anti-fouling design on the condenser with ultra-quiet multi-speed fan functionality.
- Large LCD touchscreen display for seamless user interaction.
- 12V high capacity backup battery enabling continuous alarm and temperature monitoring.
- USB port for easy temperature and alarm log downloads.
- Audible and visual alarms for temperature deviations and power interruptions.
- Multi-level password protection to secure user access.
- Front locking casters for enhanced mobility and stability.
- Durable white powder coated steel exterior.
- Keyed door lock ensuring the safety of stored materials.
- Convenient rear wall port for easy access to internal components.
- Balanced spectrum shielded LED lighting offering clear visibility within the unit.
Certifications:
- Certified to UL471 standards.
Available Models & Specifications:
SKU |
Door Type |
Operating Temperature Range |
Warranty |
Hinge |

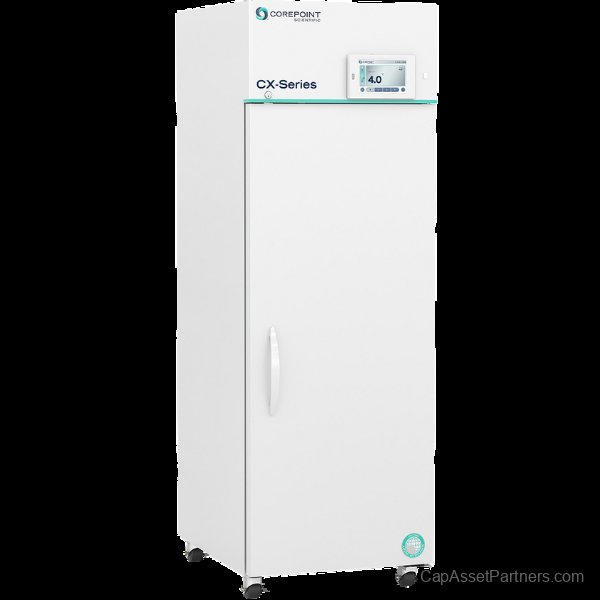

CPS-HC-SPLD-23-TS |
Solid Swing Door |
1°C to 10°C |
2 Year Parts and Labor, 7 Year Compressor |
Right |

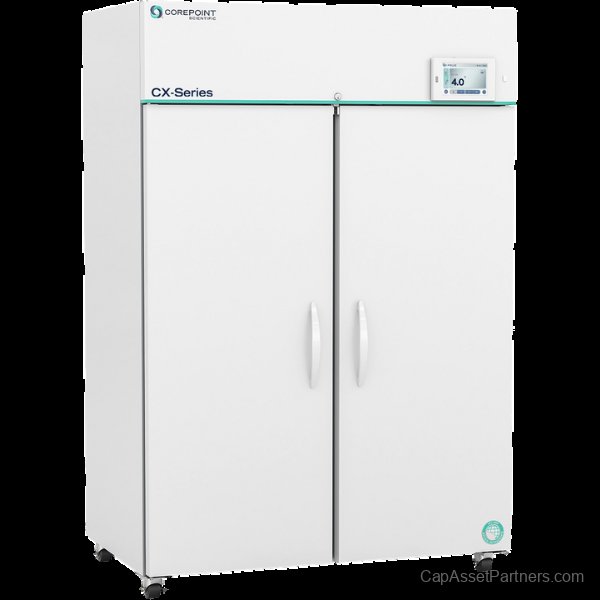

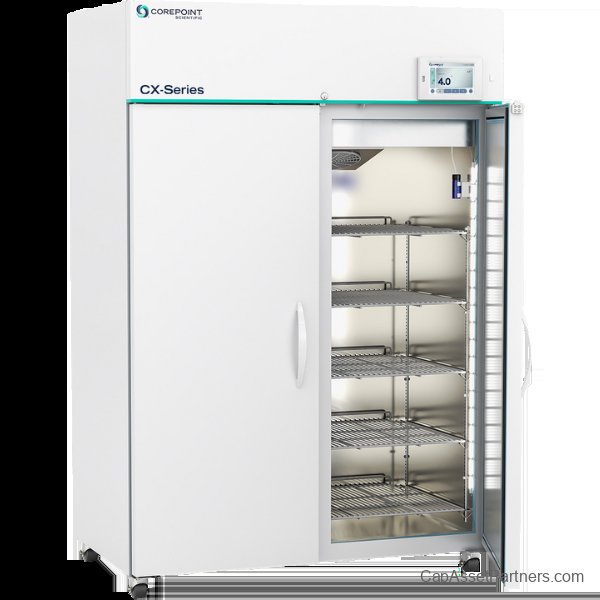

CPS-HC-SPLD-49-TS |
Dual Solid Swing Door |
1°C to 10°C |
2 Year Parts and Labor, 7 Year Compressor |
Left and Right |

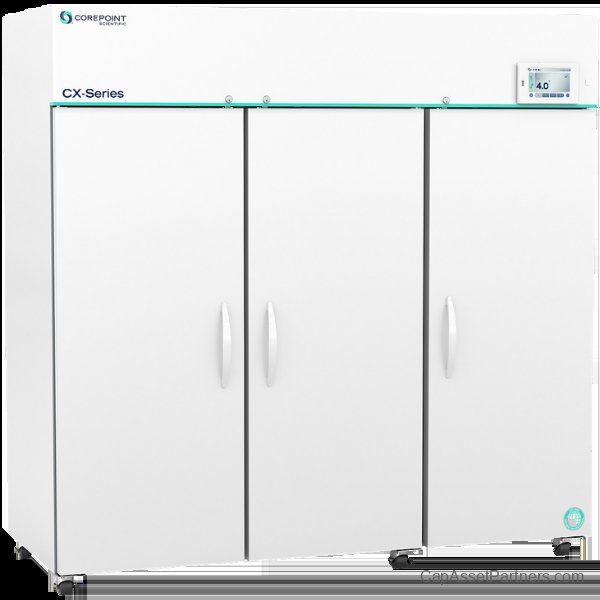

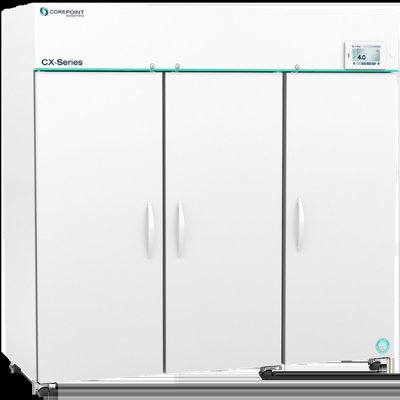

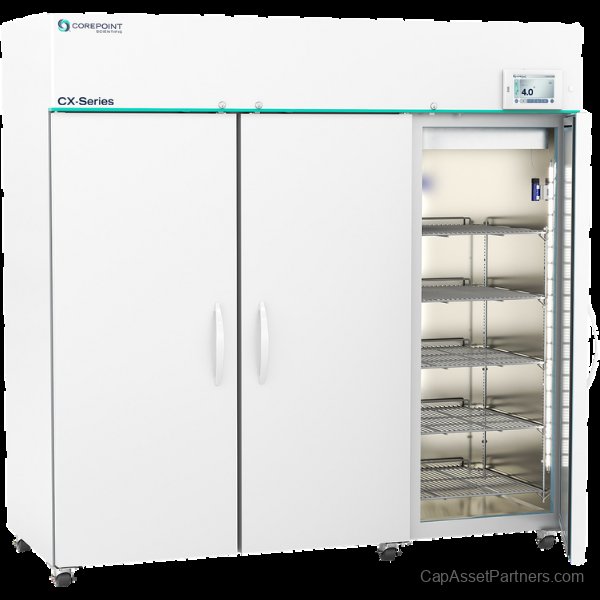

CPS-HC-SPLD-72-TS |
Triple Solid Swing Door |
1°C to 10°C |
2 Year Parts and Labor, 7 Year Compressor |
Left and Right |
Additional Information:
SKU |
Dimensions |
Electrical Information |
Refrigerant |
Controller |
Plug Type |
Lighting |
CPS-HC-SPLD-23-TS |
26.875 in x 36.375 in x 81.5 in |
110-120 VAC, 15A |
R600a |
PID Microprocessor |
NEMA 5-15 |
LED |
CPS-HC-SPLD-49-TS |
54.0 in x 36.375 in x 81.5 in |
110-120 VAC, 15A |
R600a |
PID Microprocessor |
NEMA 5-15 |
LED |
CPS-HC-SPLD-72-TS |
81.0 in x 36.25 in x 81.5 in |
110-120 VAC, 15A |
R600a |
PID Microprocessor |
NEMA 5-15 |
LED |
