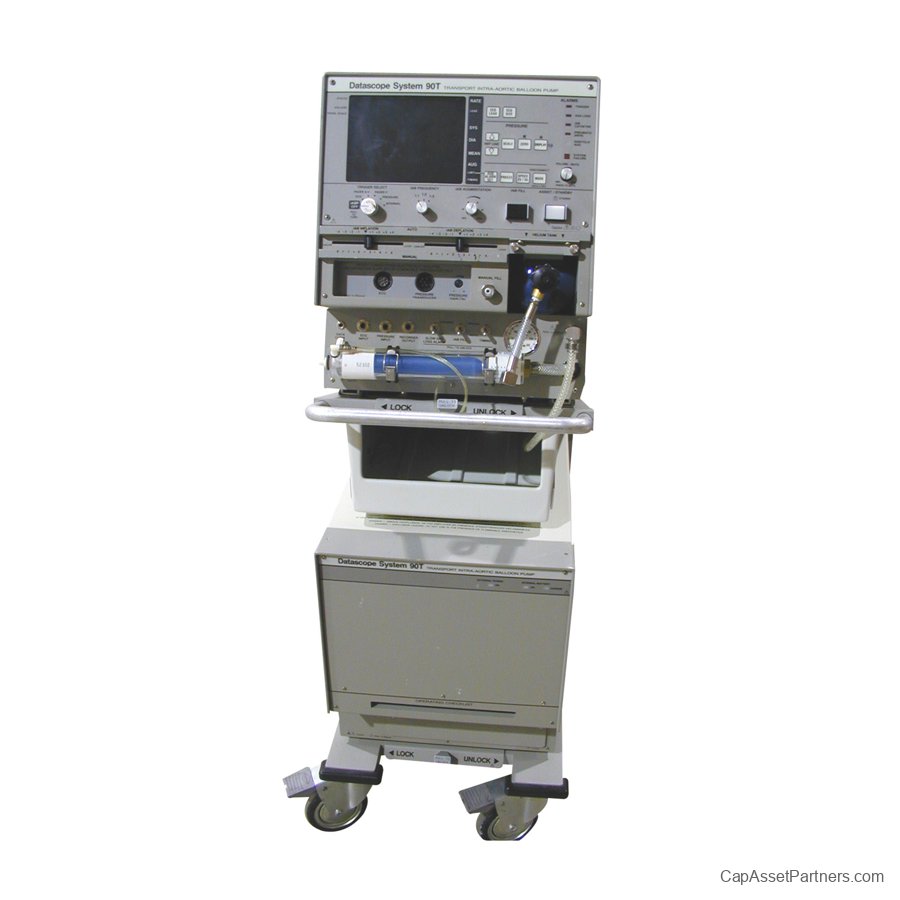

Datascope 90T Intra-Aortic Balloon Pump

Introducing the Datascope 90T Intra-Aortic Balloon Pump, a sophisticated and reliable solution designed to enhance cardiac care. Recognized for its user-friendly interface and advanced monitoring capabilities, this device plays a crucial role in hemodynamic support during acute cardiac events. The 90T model features responsive inflation and deflation algorithms that optimize coronary and systemic perfusion.
Ideal for both hospital and clinical settings, the Datascope 90T has become a trusted choice for medical professionals looking to improve patient outcomes during critical situations. Its robust functionality, including a durable design and clear display, ensures seamless operation and accurate monitoring of patients' conditions. Optimizing the management of cardiogenic shock, this intra-aortic balloon pump significantly aids in stabilizing patients when it matters most.
With the Datascope 90T, you can count on an effective, high-performance medical device that meets the demands of modern healthcare environments. Elevate your practice with a device that supports your commitment to providing exceptional patient care.

Datascope 90T Intra-Aortic Balloon Pump Specifications:

• Dimensions:

• Height: 37.6 in (95.6 cm)

• Width: 19.2 in (48.8 cm)

• Depth: 24.1 in (61.1 cm)

• Weight:

• Approximately 154 lbs (70 kg)

• Power Requirements:

• Input Voltage: 100-240 V AC

• Frequency: 50/60 Hz

• Battery:

• Type: Rechargeable lead-acid battery

• Voltage: 12 V

• Duration: Approx. 2 - 4 hours (depends on usage)

• Inflation/Deflation Rate:

• Inflation: 1 to 3.5 sec

• Deflation: 0.5 to 1.5 sec

• Balloon Sizes Supported:

• Standard Sizes: 30 mL to 50 mL

• Pressure Range:

• Maximum Inflation Pressure: 300 mmHg (40 kPa)

• Monitoring Parameters:

• Heart Rate: Display range up to 300 bpm

• Pressure Monitoring: Intra-aortic and systemic arterial pressure

• Display:

• Type: Touchscreen

• Size: 10.4 in (26.4 cm)

• Connectivity:

• Ethernet

• USB ports

• Serial Communication

• Operating Environment:

• Temperature: 50°F to 104°F (10°C to 40°C)

• Humidity: 30% to 75% non-condensing

• Regulatory Compliance:

• CE marked

• FDA cleared

Please verify these specifications as they may vary by specific model configurations or updates.
