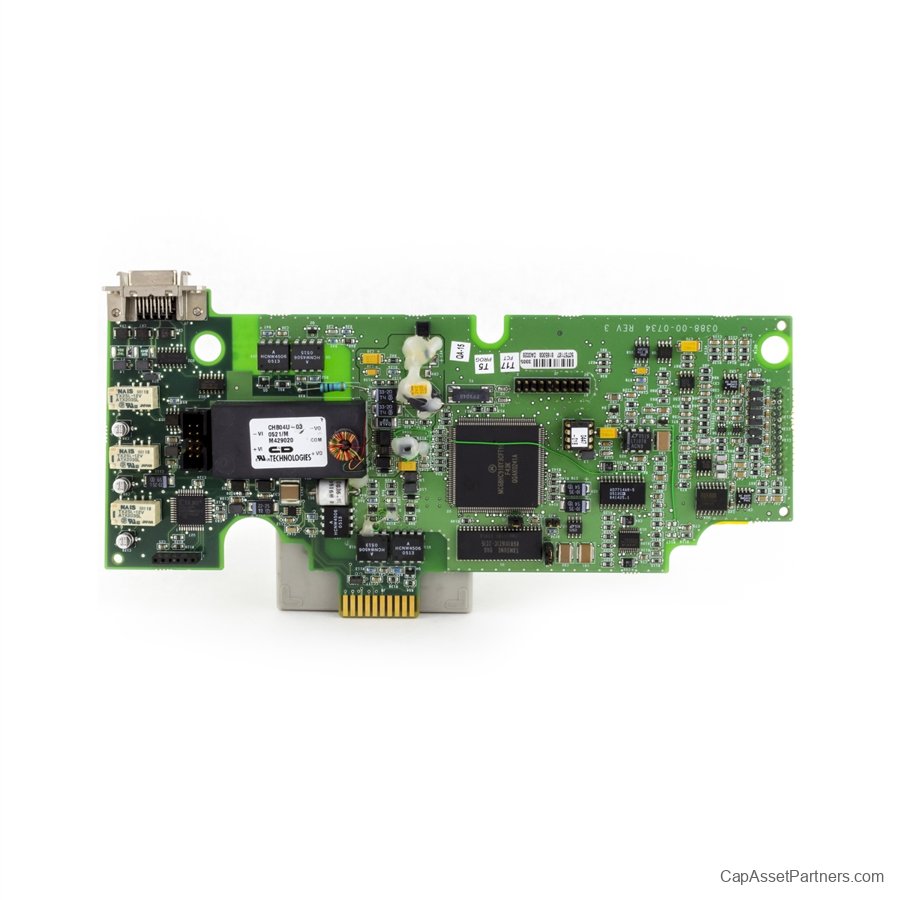

Datascope / Mindray Spectrum External Module Main PCB Circuit Board Assembly

Discover the high-quality Datascope / Mindray Spectrum External Module Main PCB Circuit Board Assembly, expertly designed for optimal performance in your medical equipment. This main circuit board assembly has been meticulously tested and cleaned by our dedicated biomedical technology team, ensuring it meets strict manufacturer specifications for reliability and functionality.
Ideal for your Datascope / Mindray Spectrum External Module, this assembly is a crucial component for maintaining the integrity and efficiency of your medical devices. As an OEM part, it carries the part number 0670-00-0734-01, ensuring compatibility with your existing system.
Upgrade your medical equipment with the Datascope / Mindray Spectrum External Module Main PCB Circuit Board Assembly, where quality and precision meet to provide superior operational performance.

Datascope / Mindray Spectrum External Module Main PCB Circuit Board Assembly Specifications

• Dimensions:

• Length: 10.5 inches (267 mm)

• Width: 8.0 inches (203 mm)

• Height: 0.75 inches (19 mm)

• Weight:

• Approximately 1.5 lbs (680 g)

• Power Supply:

• Input Voltage: 100-240 VAC (50/60 Hz)

• Power Rating: 20 W

• Circuitry:

• Layers: 4-layer PCB

• Material: FR-4, 1.6 mm thickness

• Connectors:

• Types: Various headers and sockets, including USB, RJ45, and power connectors

• Plating: Gold-plated contacts

• Microprocessor:

• Type: ARM Cortex-based processor

• Speed: 120 MHz

• Memory:

• RAM: 512 MB DDR3

• Flash Storage: 4 GB

• Communication Interfaces:

• Ethernet: 10/100/1000 Mbps

• Wireless: Wi-Fi 802.11 b/g/n

• Serial: RS-232 and RS-485 ports

• Operating Temperature:

• Range: 5°C to 40°C (41°F to 104°F)

• Storage Conditions:

• Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity: 10% to 90% non-condensing

• Compliance:

• Standards: CE, UL, FDA clearance

• Mounting:

• Type: Standard rack mountable

• Screw Size: M3 and #6 screws

• Other Features:

• Status Indicators: LED indicators for power and status

• Diagnostic Ports: Access for debugging and testing

Please verify and cross-reference the information with official Datascope / Mindray documentation for accuracy.
