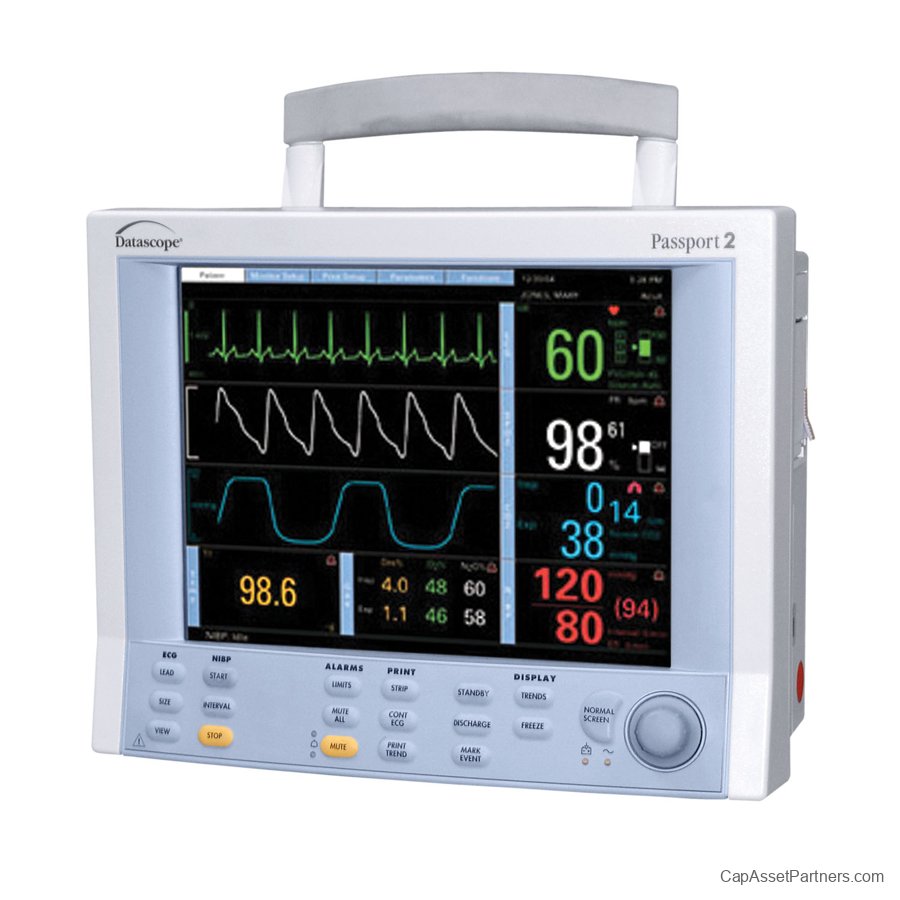

Datascope Passport 2 Patient Monitor

Datascope Passport 2 Patient Monitor: Simplifying Patient Monitoring
The Datascope Passport 2 Patient Monitor is designed to enhance patient care with its intuitive features and advanced monitoring capabilities. With a user-friendly navigator knob and dedicated function keys, this monitor makes it easy for healthcare professionals to access essential patient data swiftly.
Key Features:

• Vibrant 10.4" Color TFT Display: Offers maximum visibility with large numerics, ensuring that critical information is easily readable at a glance.

• Automatic Waveform Display Configuration: Featuring six waveforms, the monitor automatically adjusts for optimal display, allowing clinicians to focus on essential parameters.

• Comprehensive Monitoring Options: Supports configurations of 3 or 5-lead ECG with ESU noise rejection, lead-selectable respiration, non-invasive blood pressure (NIBP), Masimo SET® motion-tolerant SpO2, and temperature sensing.

• Optional Advanced Features: Enhance patient monitoring with arrhythmia analysis, Microstream® ETCO2, dual invasive pressures, ST analysis, and a dual trace recorder for detailed insights.

• Extensive Data Storage: Store up to 120 patient time measurements with the ability to expand to 500 entries, allowing for robust trend analysis through both list and graph formats.

Ideal for a variety of clinical settings, the Datascope Passport 2 Patient Monitor combines simplicity, functionality, and advanced diagnostic capabilities, making it an invaluable tool for any medical environment. Tailored for neonatal and pediatric applications, it even features a six-minute OXY-CRG trend for specialized care.
Elevate your patient monitoring experience with the Datascope Passport 2, ensuring that you have the necessary information at your fingertips to provide exceptional patient care.

Datascope Passport 2 Patient Monitor Specifications

• Display:

• Size: 8.4 inches (21.3 cm)

• Type: Color LCD

• Dimensions:

• Height: 9.5 inches (24.1 cm)

• Width: 11.5 inches (29.2 cm)

• Depth: 6.5 inches (16.5 cm)

• Weight:

• 6.5 lbs (2.95 kg)

• Battery:

• Type: Rechargeable Lithium-ion

• Duration: Approximately 6 hours (varies with usage)

• Parameters Monitored:

• Heart Rate (HR): Range 25 - 250 bpm (beats per minute)

• Non-invasive Blood Pressure (NIBP):

• Range: Adult: 40 - 280 mmHg; Pediatric: 40 - 200 mmHg; Neonatal: 20 - 135 mmHg

• Accuracy: ±5 mmHg

• Respiratory Rate (RR):

• Range: 0 - 120 breaths/min

• Accuracy: ±1 breath/min

• Temperature:

• Range: 32°C - 42°C (89.6°F - 107.6°F)

• Accuracy: ±0.1°C

• Oxygen Saturation (SpO2):

• Range: 0% - 100%

• Accuracy: ±2% (70% - 100%)

• Connectivity:

• Serial Port: RS-232

• Networking: Ethernet port

• Alarm System:

• Adjustable for all monitored parameters

• Visual and audible alarms

• Input Power:

• AC Power: 100-240 V, 50/60 Hz

• Operating Environment:

• Temperature: 0°C - 40°C (32°F - 104°F)

• Humidity: 10% - 95% non-condensing

• Storage Conditions:

• Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity: 10% - 95% non-condensing

• Certifications:

• CE Marking

• FDA Approved

Note:

These specifications are for the Datascope Passport 2 Patient Monitor, an older model. Always refer to the latest technical documentation for the most current information.
