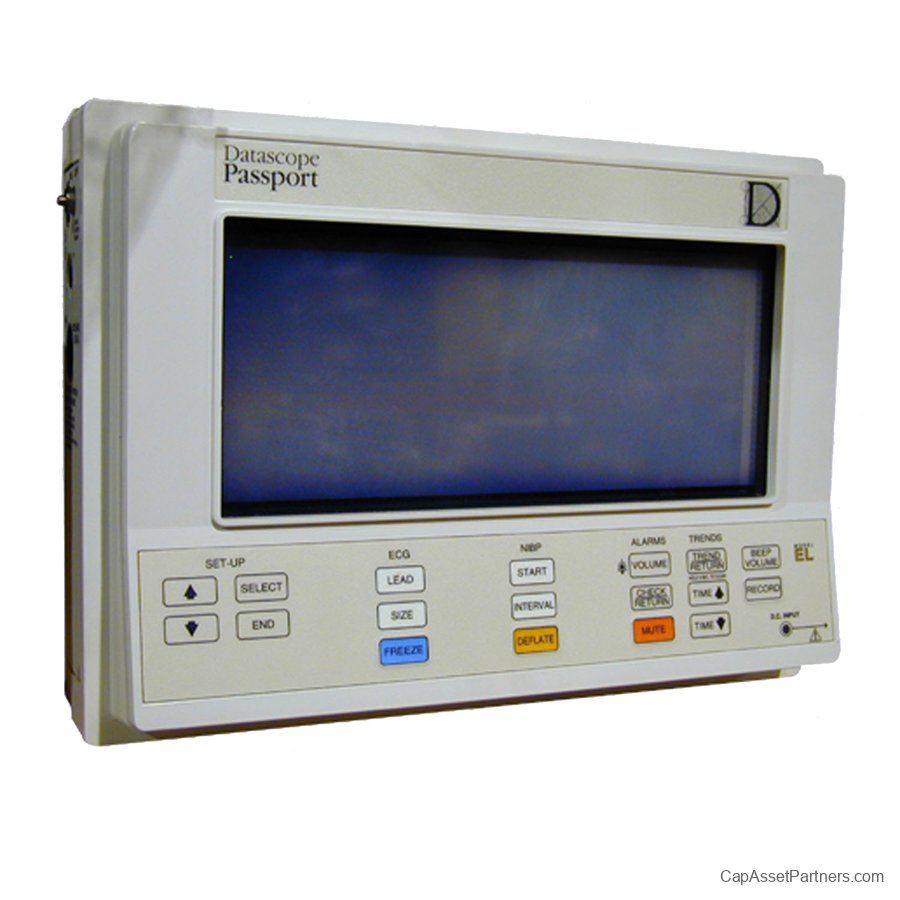

Datascope Passport EL Multi-Parameter Patient Monitor

Introducing the Datascope Passport EL Multi-Parameter Patient Monitor, an essential tool for healthcare professionals seeking reliable, accurate, and comprehensive monitoring solutions. This advanced monitor seamlessly measures vital signs, including ECG, respiration, non-invasive blood pressure (NIBP), SpO2, and temperature, making it ideal for a variety of clinical settings.
Designed with user-friendliness in mind, the Datascope Passport features a large electroluminescent screen that ensures clear and easy viewing from any angle, allowing healthcare providers to make quick assessments. Its intuitive single function keys enable efficient operation, ensuring that vital information is readily accessible when it matters most.
The Datascope Passport EL is engineered for performance, helping medical professionals deliver the highest standard of patient care. Explore the capabilities of this multi-parameter patient monitor and elevate your clinical monitoring experience today.

Datascope Passport EL Multi-Parameter Patient Monitor Specifications

General

• Height: 9.5 inches (24.1 cm)

• Width: 13 inches (33.0 cm)

• Depth: 8 inches (20.3 cm)

• Weight: 13 lbs. (5.9 kg) maximum without batteries

• Power Consumption: 15 watts typical

• Voltage Input: 100, 120, 220, 240 VAC ± 10%

• Mains Frequency: 47 to 65 Hz

ECG

• Leads: I, II, III

• Display Sensitivity: 0.25, 0.5, 1.0, 2.0, 3.0, 4.0 cm/mV ± 10%

• Frequency Response:

• ESU Filter Out: 0.5 to 40 Hz, -3 dB max at 1 mVpp input

• ESU Filter In: 0.5 to 20 Hz, -3 dB max at 1 mVpp input

Heart Rate Meter

• Range: 30-300 bpm (adult/child), 30-350 bpm (neonatal)

• Accuracy: 30-250 bpm ± 3 bpm or 3%, whichever is greater

• Pacer Rejection: Rejection criteria defined for pulse amplitude and duration

• Display Update: 2 seconds ± 0.1 sec

NIBP (Non-Invasive Blood Pressure)

• Technique: Oscillometric

• Systolic Range:

• Adult/Ped Mode: 40-250 mmHg (5.33-33.33 kPa)

• Neonate Mode: 15-150 mmHg (2.0-20.0 kPa)

• Diastolic Range:

• Adult/Ped Mode: 30-200 mmHg (4.00-26.67 kPa)

• Neonate Mode: 10-150 mmHg (1.33-20.0 kPa)

• Systolic Accuracy:

• Adult/Pediatric: Mean error < 7 mmHg, Std. dev. < 8 mmHg

• Neonatal: Mean error < 3 mmHg, Std. dev. < 13 mmHg

• Diastolic Accuracy:

• Adult/Pediatric: Mean error < 7 mmHg, Std. dev. < 8 mmHg

• Neonatal: Mean error < 4 mmHg, Std. dev. < 7 mmHg

• Heart Rate Meter Range: 30-250 bpm

• Heart Rate Meter Accuracy: ±3 bpm or ±3%, whichever is greater

Pulse Oximetry

• Accuracy (Standard Deviation):

• 70-100%: ±2%;

• 60-69%: ±4%;

• 0-59%: Unspecified

• Response Time: 13 seconds to 95% of final SpO2 value change (from 60-95% at 72 bpm)

Recorder (Optional)

• Speed: 50, 25, 12.5, 6.25, 3.125 mm/sec ± 5%

• Note: 6.25 and 3.125 mm/sec are for respiration only

• Chart Size: 50 mm ± 2 mm

Battery Requirements

• Type: 2 sealed lead batteries

• Voltage: 12 VDC

• Capacity: 2.3 AH each

• Run Time: 2 hours on fully charged battery

• Recharge Time: 16 hours maximum

• Low Battery Warning: 11.6 ± 3.5%

• Low Battery Cut Off: 11.0 ± 2.8%
