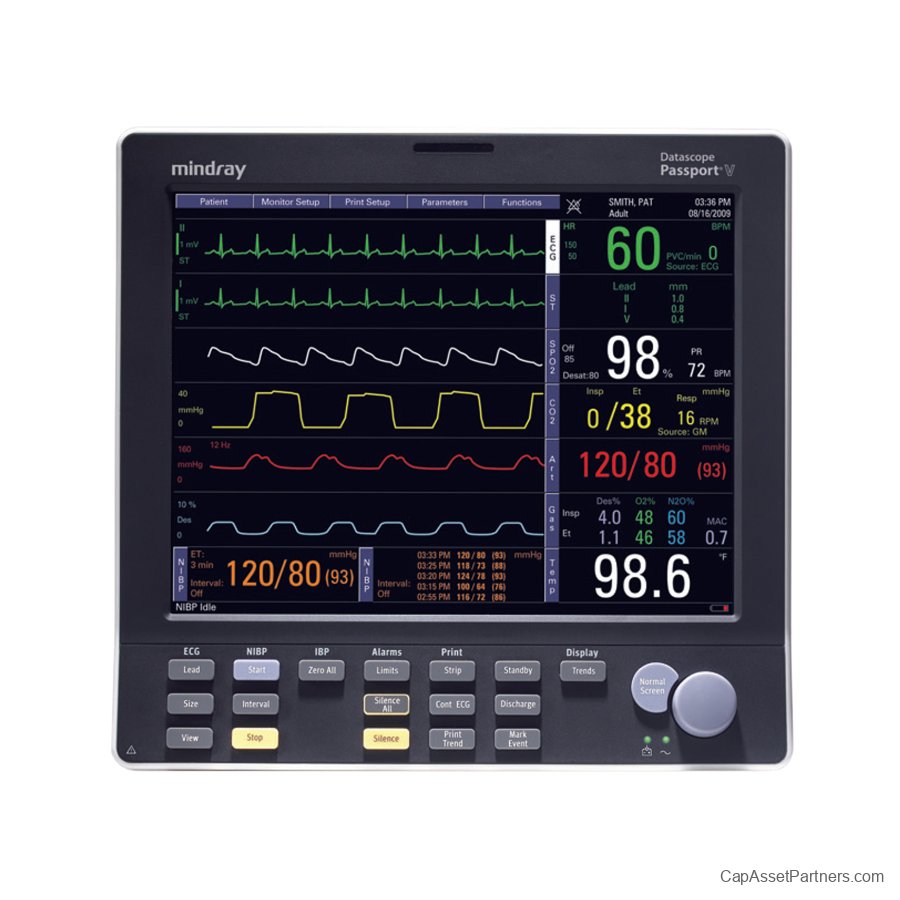

Datascope Passport V Monitor – Versatile Patient Monitoring Solution
The Datascope Passport V is designed to meet the diverse needs of hospital departments, offering a comprehensive suite of features for optimal patient care. With advanced options such as CO2 and SpO2 technologies, along with capabilities for monitoring multiple invasive pressures, this device is an invaluable tool for healthcare professionals managing critically ill patients.
Experience a smooth and intuitive interface that simplifies the process of monitoring patient information. The Passport V boasts a large, vibrant display that provides clear, color-coded data, allowing for quick and accurate assessments. Its single-touch quick action keys and Navigator Knob enable seamless navigation through menus, enhancing usability in fast-paced environments.
The monitor is equipped with an automatic expansion feature, ensuring that the display adjusts as patient cables are added or removed. This adaptability makes the Passport V a perfect match for the operating room, particularly in peri-anesthesia situations. When combined with the renowned Gas Module 3, it excels in delivering critical insights during surgical procedures, while advanced cardiac surveillance options extend monitoring capabilities into postoperative care.
Additionally, the Passport V simplifies patient transport with its user-friendly one-touch mechanism, allowing for easy disengagement from wall mounts or rolling stands, complete with patient cables for added convenience. Optimize patient monitoring with the flexibility and performance of the Datascope Passport V.

Datascope Passport V Specifications

• Weight: 5.5 lbs (2.5 kg)

• Dimensions: 10.5 x 7.5 x 6 in (26.7 x 19.1 x 15.2 cm)

• Display: 8.4 in color TFT LCD

• Battery Life: Up to 10 hours

• Monitoring Parameters:

• ECG: 3/5 lead

• Heart Rate (HR)

• Non-invasive Blood Pressure (NIBP)

• Invasive Blood Pressure (IBP)

• Temperature: 2 channels

• Oxygen Saturation (SpO2)

• Cardiac Output (optional)

• Data Storage: Up to 240 hours of patient data

• Communication Ports: Ethernet, USB, serial port

• Alarm Systems: Visual and audible alarms for critical parameters

• Power Supply: AC 100-240 V, 50/60 Hz

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Operating Humidity: 10% to 95% non-condensing

This specification provides a comprehensive overview of the Datascope Passport V monitor's capabilities and technical details.
