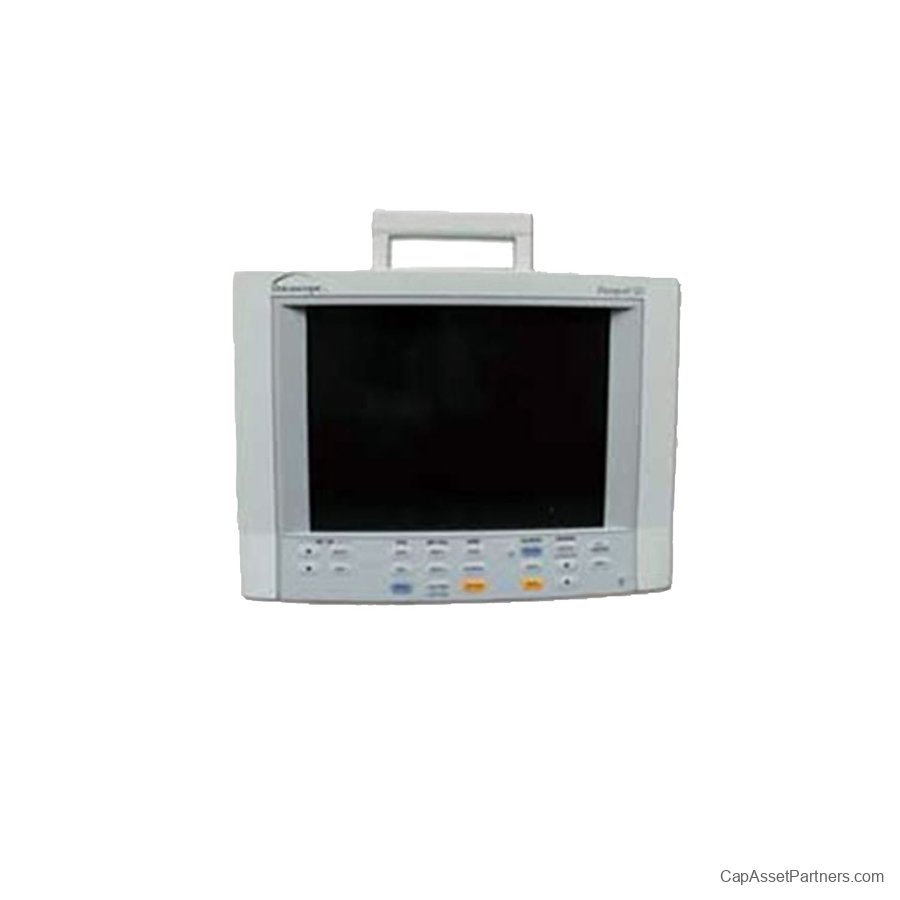

Datascope Passport XG Multi-Parameter Monitor

Datascope Passport XG Multi-Parameter Monitor: Elevate Patient Care
The Datascope Passport XG Multi-Parameter Monitor sets the standard for both portable and bedside vital signs monitoring, making it an essential tool for healthcare professionals. Featuring an impressive 52-square-inch display, users can choose between the vibrant Active Matrix Color TFT screen or a bright, high-contrast monochrome electroluminescent screen. This monitor is designed for superior readability, with larger NIBP numbers and an Automatic Waveform Display that simplifies patient data interpretation.
Key Features:

• 3/5 Lead ECG: Flexible monitoring options to suit various patient needs.

• Built-in Printer: Conveniently print reports and data at the point of care.

• Non-Invasive Blood Pressure (NIBP): Accurate and reliable blood pressure measurements.

• Pulse Oximetry: Monitor oxygen saturation levels with ease and precision.

• Battery Backup for Transport: Ensures continuous monitoring during patient transfers.

Upgrade your medical facility with the Datascope Passport XG Multi-Parameter Monitor, where innovative technology meets user-friendly design.

Datascope Passport XG Multi-Parameter Monitor Specifications

Display:

• 21.1 cm × 15.8 cm (8.3 in × 6.2 in)

ECG:

• Leads: I, II, III, aVR, aVL, aVF, V

• Defibrillator Overload Protection: Withstand Lown and trapezoidal or Edmark waveform up to 400 joules applied to 100 ohms load at 20-second intervals

• Recovery Time: 3 seconds maximum

IBP:

• Digital Display Range: Systolic/Diastolic Mean -20 to +300 mmHg (?0.27 to +39.9 kPa)

• Accuracy: ±2 mmHg or ±2%, whichever is greater

• Zero Range: ±120 mmHg minimum at nominal gain

Heart Rate:

• Range: 30–300 bpm for adult/child, 30–350 bpm for neonatal

• Accuracy: 30–250 bpm ±3 bpm or ±3%, whichever is greater

NIBP:

• Technique: Oscillometric

• Systolic Range: 50 to 250 mmHg (6.7 to 33.3 kPa) for adult/ped; 15 to 150 mmHg (2.0 to 20.0 kPa) for neonatal

• Diastolic Range: 30 to 200 mmHg (4.0 to 26.7 kPa) for adult/ped; 10 to 150 mmHg (1.3 to 20.0 kPa) for neonatal

• Systolic Accuracy: Mean error < 7 mmHg, Standard deviation < 8 mmHg (adult/ped); Mean error < 4 mmHg, Standard deviation < 13 mmHg (neonatal)

• Diastolic Accuracy: Mean error < 7 mmHg, Standard deviation < 8 mmHg (adult/ped); Mean error < 4 mmHg, Standard deviation < 7 mmHg (neonatal)

• Heart Rate Meter Range: 30–250 bpm

• Heart Rate Meter Accuracy: ±3 bpm or ±3%, whichever is greater

Temperature:

• Scale: Selectable °C or °F

• Range: 15°C to 45°C (59°F to 113°F)

• Accuracy: ±0.1°C to 45°C or ±0.2°F (59 to 113°F)

Respiration (ECG):

• Range: 4–200 pm

• Accuracy: ±2% or ±bpm, whichever is greater

Recorder:

• Speed: 50, 25, 12, 6.25, 3.125 mm/sec ±5%

CO2:

• Range: 0–14.8 vol%, 0–14.8 kPa, 0–11 mmHg, 0–111 Torr

• Rise Time: <400 ms

• Accuracy: ±(0.2% vol% + 2% of reading)

O2:

• Range: 0–100 vol%

• Rise Time: <400 ms

• Accuracy: ±(0.2% vol% + 2% of reading)

N2O:

• Range: 0–100% N2O

• Rise Time: <450 ms

• Accuracy: ±(2 vol% + 2% of reading)

Battery:

• Type: 2 sealed lead-acid batteries

• Voltage: 12 VDC nominal (@2.3 A load)

• Capacity: 2.3 AH each

• Run Time: 1.5 hours from full charge of new battery at 25°C (77°F) with SpO2, 1 NIBP every 15 minutes, no recording

• Recharge Time: 16 hours

• Low Battery Warning: 11.6 V ±3.5%

• Low Battery Cut Off: 11.0 V ±2.8%
