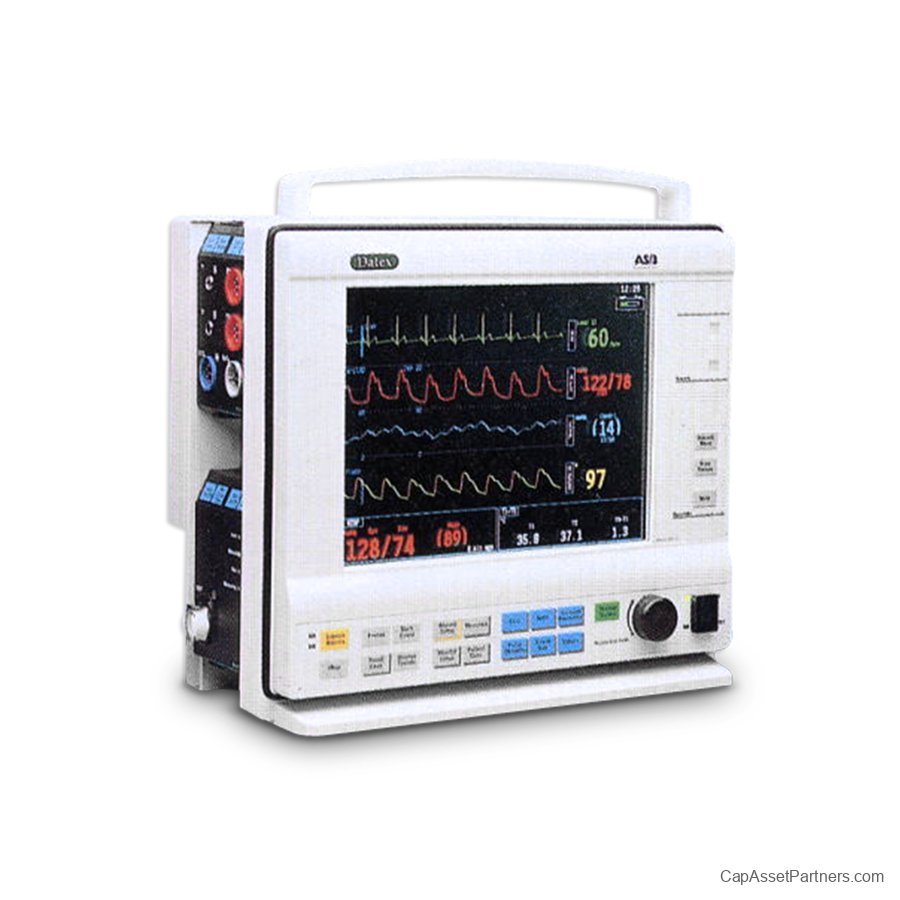

Introducing the Datex AS/3 Compact Multi-Parameter Patient Monitor, a versatile and portable solution designed for comprehensive patient monitoring in various clinical settings. This advanced device efficiently measures critical parameters including ECG, NIBP, SpO2, and temperature, ensuring accurate and real-time patient care. With customizable configurations, the AS/3 can also include CO2 and 5-agent monitoring capabilities, along with a built-in recorder for streamlined data documentation. Ideal for hospitals, clinics, and emergency care situations, the Datex AS/3 combines functionality and reliability, making it an essential tool for healthcare professionals dedicated to delivering high-quality patient care.
Datex AS/3 Compact Multi-Parameter Patient Monitor Specifications
Physical Weight & Dimensions
- Height: 5.3 inches (135 mm)
- Width: 12.4 inches (315 mm)
- Depth: 16.1 inches (412 mm)
- Depth with modules: 16.3 inches (412 mm)
- Weight without modules: 21 lbs (9.5 kg)
Power Supplies
- Rated voltages and frequencies: 110-120 Volts, 60 Hz
- Allowed voltage fluctuations: 110V - 10%; 120 V + 10%
- Maximum power consumption: 300 VA
Trends
- Graphical trends (all parameters, selectable times): 2, 4, 12, 24 hrs
- Numerical trends (all parameters, sampled every 5 minutes after NIBP, PCWP, and C.O. measurement and with mark event key)
Alarms
- Anesthesia alarm system: Classified into three categories according to priority in anesthesia; color and audio tone coded
- Central alarms display and adjustment page: 10-minute graphical mini trends referenced to set alarm limits
- Automatic alarm limits function: Alarm limits automatically calculated from current parameter reading when selected
Display
- Main Display Option: 10" color LCD display
- Display size: 10.4 inches (diagonal)
- Display type: Active matrix 8-color LCD
- Display resolution: VGA resolution, 640x480
- Number of traces: Up to 6
- Display layout and colors: User-configurable
