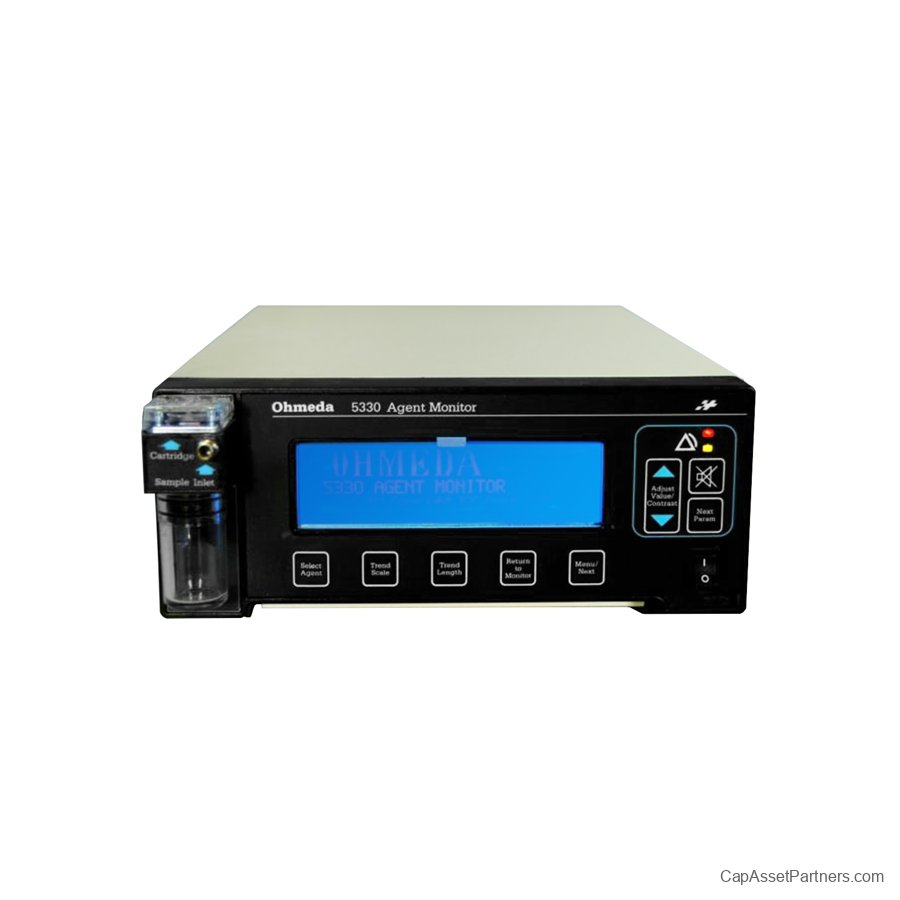

Datex Ohmeda 5330 Agent Monitor

Product Overview: Datex Ohmeda 5330 Agent Monitor
The Datex Ohmeda 5330 Agent Monitor is an essential tool for healthcare professionals performing anesthetic vaporizer concentration checks in diverse environments. This reliable and efficient device enables accurate monitoring of various anesthetic agents, ensuring optimal patient care.
Key Features:

• Comprehensive Agent Monitoring: The Datex Ohmeda 5330 simultaneously monitors five anesthetic agents: Enflurane, Halothane, Isoflurane, Sevoflurane, and Desflurane. This capability allows for precise adjustments and assessments in a variety of clinical settings.

• User-Friendly Digital Display: Equipped with an easy-to-read digital display, the 5330 provides clear and concise real-time data, enhancing usability and helping healthcare professionals make timely decisions during procedures.

Whether you are operating in a hospital, clinic, or field setting, the Datex Ohmeda 5330 Agent Monitor is designed to offer reliability and accuracy, making it an invaluable asset for anesthesiology practices.

Datex Ohmeda 5330 Agent Monitor Specifications

Dimensions / Power

• Height: 4 inches (10.16 cm)

• Width: 10 inches (25.4 cm)

• Depth: 16 inches (40.64 cm)

• Weight: 13.25 lbs (6 kg)

• Power Input: 110-120 VAC, 50/60 Hz

Operational Environment

• Temperature: 15 to 35 °C (59 to 95 °F)

• Humidity: 0 to 95% RH, non-condensing

Storage Environment

• Temperature: -5 to 50 °C (23 to 122 °F)

• Humidity: 0 to 95% RH, non-condensing

Display

• Displayed Parameter: Agent inspired & expired concentration levels (%)

• Trendgraph: Last 120 breaths, 20 min, 60 min, 120 min

• Sample Flow Rate: 250 mL/min

• Response Time: 600 msec

• Warm-Up Time: 5 minutes to operational readiness

• Compensation: Temperature & barometric pressure

• Analog Output: Anesthetic agent waveform

• Digital Output: RS-232 compatible

Enflurane, Halothane, Isoflurane, Sevoflurane

• Range: 0 to 9%

• Accuracy:

• 0 to 1.0% (± 0.2%)

• 1.1 to 6.0% (± 0.3%)

• 6.1 to 7.0% (± 0.35%)

• Resolution: 0.1%

• Alarms:

• High expired: 0.2 to 10% agent concentration

• High inspired: 0.2 to 10% agent concentration

• Low expired: 0 to 9.8% agent concentration

• Low inspired: 0 to 9.8% agent concentration

Desflurane

• Range: 0 to 24%

• Accuracy:

• 0 to 4.9% (± 0.2%)

• 5.0 to 9.9% (± 0.5%)

• 10.0 to 18.0% (± 1.0%)

• 18.1 to 22.0% (± 2.0%)

• Resolution: 0.1%

• Alarms:

• High expired: 0.2 to 10% agent concentration

• High inspired: 0.2 to 10% agent concentration

• Low expired: 0 to 9.8% agent concentration

• Low inspired: 0 to 9.8% agent concentration
