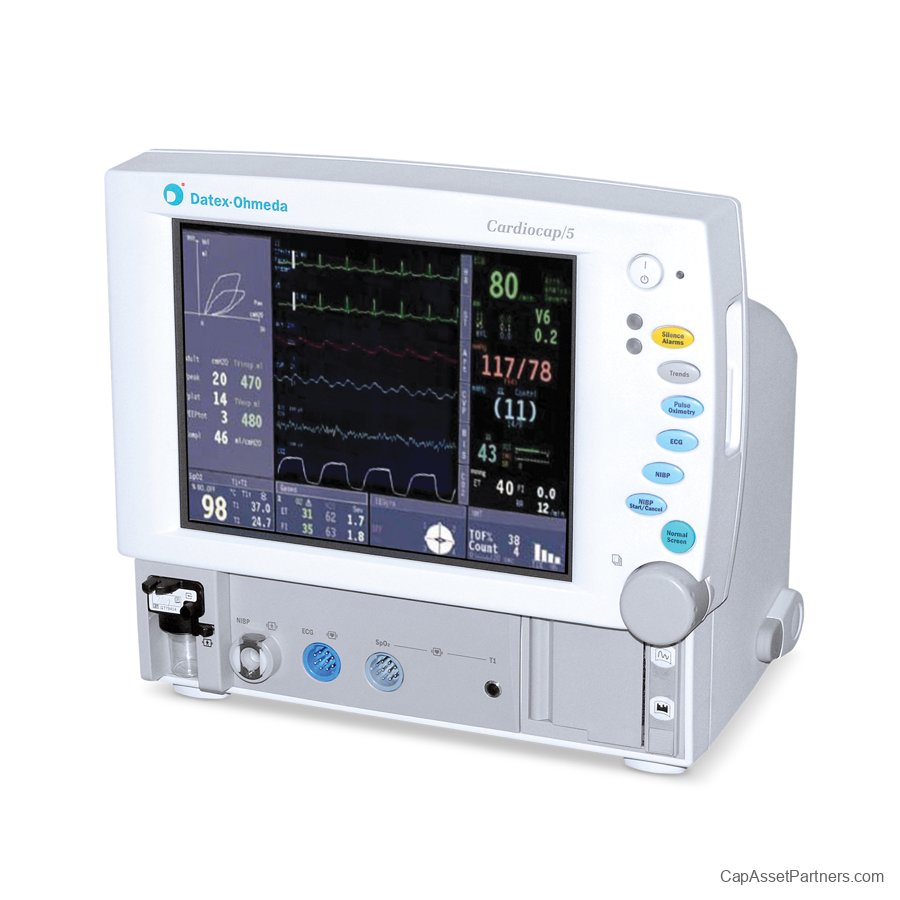

Datex Ohmeda Cardiocap 5

Datex Ohmeda Cardiocap 5

• Advanced Anesthesia Monitoring Solution

The Datex Ohmeda Cardiocap 5 is an innovative anesthesia monitoring device designed to enhance patient care in operating and recovery rooms. With its compact footprint, this monitor is perfect for facilities looking to optimize space without sacrificing functionality.
Key Features of the Cardiocap 5:

• Compact Design: The small bedside monitor features a large 10.4" active matrix color display that ensures visibility and ease of use.

• User-Friendly Interface: Utilizing the proven S/5 user interface, the Cardiocap 5 enables quick access to essential monitoring functions.

• Comprehensive Monitoring: Displays up to six waveforms simultaneously for real-time assessment of patient status, including ECG, respiration, and heart rate measurements.

• Smart Alarm System: Equipped with color-coded, prioritized alarms to alert healthcare professionals to critical changes in patient conditions.

• Customizable Modes: Offers four user-configurable modes that allow for care-specific preconfigurations, adapting to various clinical needs.

• Waveform Capture: The waveform snapshot feature stores and recalls waveform samples for in-depth analysis and later review.

• Trends at a Glance: Access to 5 or 30-minute minitrends continuously displayed offers a quick historical view of patient data.

• Enhanced Usability: Comes with online help for menu functions, ensuring that users can navigate the system with ease.

• Graphical Trend Displays: Provides 24-hour graphical trends of all monitored parameters, assisting healthcare teams in tracking patient progress.

• Display Customization: Adjustable brightness settings enable optimal visibility in varied lighting conditions.

• Optional Recorder: An integrated three-channel thermal array recorder is available for those needing enhanced documentation capabilities.

• Reliable Power Backup: A built-in battery provides backup power to ensure continuous monitoring during unexpected outages.

• Flexible Mounting Options: Designed for ergonomics, the Cardiocap 5 can be wall-mounted or placed on a roll stand, adapting to the layout of your clinical environment.

• Network Compatibility: Integrates seamlessly with the Datex-Ohmeda S/5 Network and Central, facilitating monitor-to-monitor communication and centralized viewing.

Transform your patient monitoring experience with the Datex Ohmeda Cardiocap 5, an essential tool for modern medical environments prioritizing accuracy and efficiency.

Datex Ohmeda Cardiocap 5 Specifications

Cardiocap Monitoring Parameters

• Dimensions: 13.0" (W) x 8.7" (D) x 11.8" (H) / 330 mm x 220 mm x 300 mm

• Weight: <11.2 kg (24.8 lbs) (F-MXG); <10.2 kg (22.6 lbs) (F-MX)

• Power: 100-240 Vac ±10%, 60/50 Hz

• Back-Up Battery: 15 min guaranteed, charging time typically 5 h

• Graphical Trends: 20 min, 1, 2, 4, 6, 10, 12, and 24 h

• Numerical Trends: All parameters sampled every 5 min and after NIBP measurement

• Alarms: Adjustable high and low alarms

• Operating Temperature: +10...+40 °C (50...104 °F)

• Storage Temperature: –10...+50 °C (14...122 °F)

• Atmospheric Pressure: 67-106 kPa (500-800 mmHg)

Screen

• Display Size and Type: 10.4" LCD color

• Number of Traces: Up to 6

• Display Resolution: 640 x 480

ECG

• Number of Channels: 3

• Number of Leads: 3 or 5

• ST Analysis: 3 channels, continuous

Heart Rate

• Measurement Range: 30 to 250 beats per min (bpm)

• Measurement Accuracy: ±5% or ±5 bpm, whichever is greater

• Pacemaker Pulse Detection: 2 to 500 mV, 0.5 to 2 ms

Impedance Respiration

• Measurement Method: Uses ECG electrodes to measure impedance changes due to breathing

• Measurement Range: 4 to 120 breaths/min
