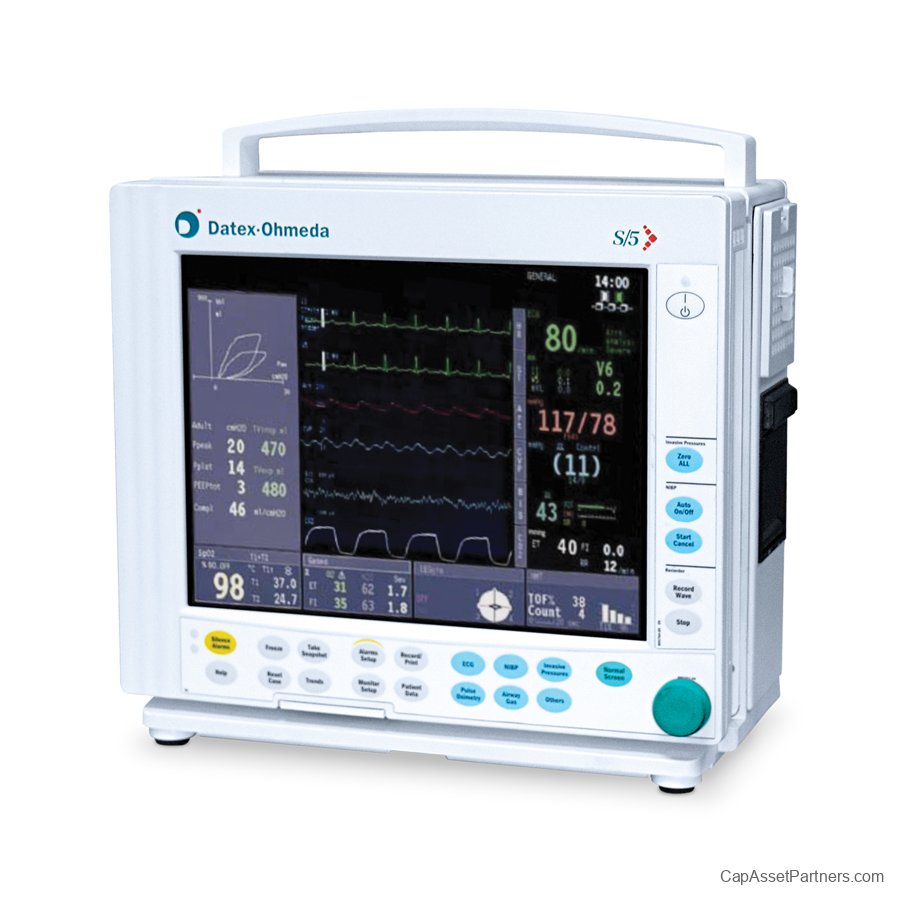

Datex Ohmeda Compact S/5 iMM

Product Description: Datex Ohmeda Compact S/5 iMM
Discover cutting-edge monitoring capabilities with the Datex Ohmeda Compact S/5 iMM, an innovative solution designed specifically for Post-Anesthesia Care Units (PACU) and day surgery monitoring. This compact bedside monitor features an impressive 12.1-inch color display, ensuring that critical data is presented clearly with large waveforms and numerics for easy viewing from various angles and distances.
Key features of the Compact S/5 iMM include the ability to display up to 8 waveforms and 4 numeric digit fields simultaneously, providing comprehensive basic hemodynamic and full airway gas measurements. The monitor also allows for 24-hour graphical and numeric trends, facilitating easy access to historical data for detailed analysis.
Enhance patient safety with color-coded, prioritized alarms that can be adjusted directly on the monitor or remotely via the S/5™ Network and Central. For advanced cardiac monitoring needs, optional extended arrhythmia analysis is available, along with waveform snapshots that enable users to store and recall samples for later evaluation.
The Compact S/5 iMM's user-friendly interface, designed specifically for the anesthesia care process, includes six customizable display pages tailored for different operational modes. This monitor supports S/5™ Device Interfacing Solutions, allowing integration with other patient care devices for a unified display of critical information.
Built for mobility, its rugged, shock-resistant design features a convenient built-in battery and handle, making it well-suited for intra-hospital transport. With versatile mounting options available, including roll stands and wall or bed mounts, the Compact S/5 iMM adapts seamlessly to any clinical environment.
Additional features include wireless networking (WLAN) options, the incorporation of transport data through an optional MemCard™, and the potential for a built-in, three-channel thermal array recorder. For comprehensive documentation, consider the optional deioRecorder for Anesthesia, which comes equipped with an integrated keyboard and a shared user interface.
Elevate your patient monitoring capabilities with the Datex Ohmeda Compact S/5 iMM, where innovation meets reliability in modern healthcare environments.

Datex Ohmeda Compact S/5 iMM Specifications

Physical Weight & Dimensions

• Height: 13.4 inches (340 mm)

• Width: 13.2 inches (335 mm)

• Depth: 8.1 inches (205 mm)

• Weight (without modules): 24.2 lbs (11 kg)

Display

• Display Size: 12.1 inches (diagonal)

• Display Type: Active matrix color TFT LCD

• Display Resolution: SVGA resolution, 800 x 600

• Number of Waveforms: Up to 8

• Number of Digit Fields: Up to 4

• Display Layout and Colors: User-configurable

• Integrated Command Board with direct function keys, menu keys, and ComWheel™ for selections and adjustments in menus

Frame

• Module Capacity: 2+2 module slots

• I/O Connections:

• RS-232 computer serial output

• 2 fixed analog outputs

• Connector for remote controller, external keyboard, and barcode reader with Y-cable

• Defibrillation sync

• Nurse call

• Device Interfacing Solution: Connector for up to 10 simultaneous S/5 DIS interfaces

• Network: Compatible with Datex-Ohmeda S/5 Network for monitor-to-monitor communication, centralized viewing, and remote alarm management

• Wireless Network Option: Supports both wired and wireless network (WLAN) for centralized monitoring

• MemCard Option: Enables data transfer of trended patient vital signs

• Printing: Laser printing capabilities with serial printer supporting PCL5 language or network printer (serial/parallel converter available)

• Recorder Option: Built-in three-channel thermal array recorder

• Mounting Options: Bed mount, wall mount, and roll stand

Battery

• Type: Built-in NiMH battery

• Capacity:

• Up to 1.5 hours typical on full charge at 23°C (73°F); with combination of M-NESTPR, M-miniC, and N-CMW, typically 2 hours

• Recharging: When connected to main power

• Charging Time: 10 hours to full capacity

• Battery operation alarm: Early warning 'Battery low' note; final warning 'Battery low' alarm

• Battery state indicator: Battery bar displayed on the screen

Alarms

• Alarm system classified into three categories according to priority in anesthesia; color and audio tone coded

• Central alarm display and adjustment page

• 10 min graphical mini-trends referenced to set alarm limits

Modes

• Modes: Up to 6 user-configurable modes for care-specific configurations

• Pages: Up to 6 user-configurable display pages for each mode
