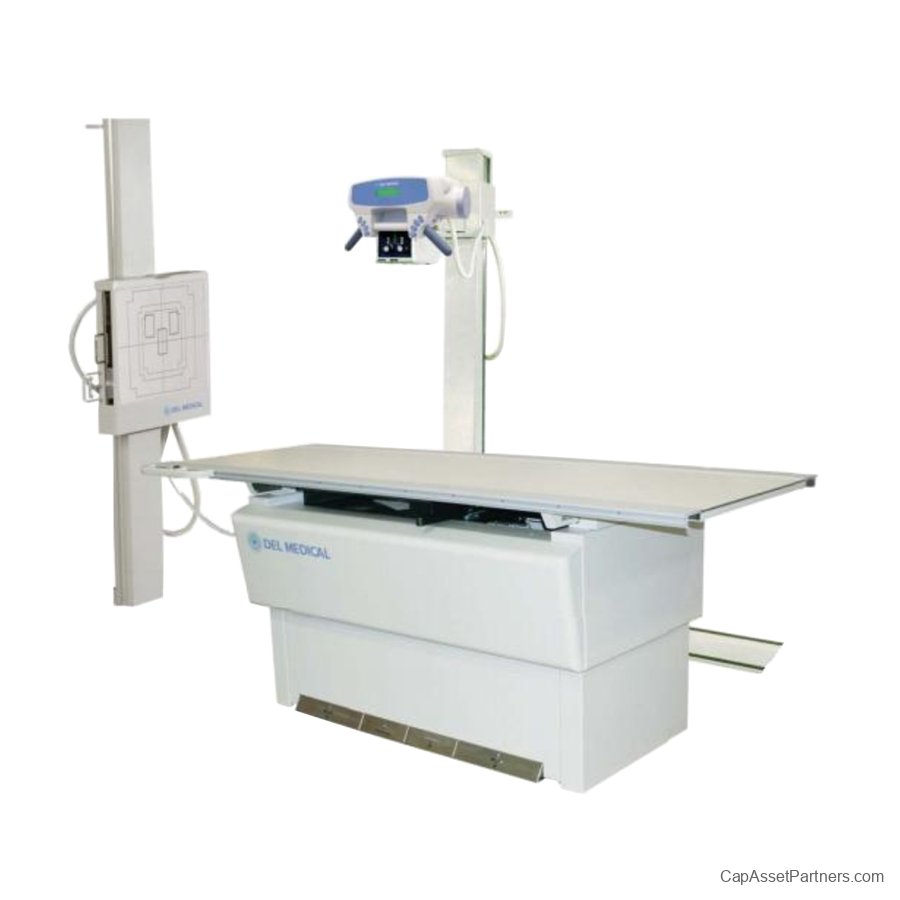

Del Medical Radiation Room

Del Medical Radiation Room: Advanced Imaging Solutions for Healthcare Facilities
Upgrade your medical imaging capabilities with the Del Medical Radiation Room, designed to optimize workflow and enhance patient care. This fully-integrated system features state-of-the-art X-Ray equipment that prioritizes both functionality and ease of use. Equipped with intuitive controls, the Del Medical system allows for versatile configurations, offering a choice between ceiling-mounted or floor-mounted X-Ray tubes to meet the specific needs of your facility.
Customizable Equipment Options
Tailor your Del Medical Radiation Room with a variety of generators, tables, tube-stands, and chest-stands. Select the ideal components to create the most efficient setup for your practice, ensuring you have the right tools for exceptional patient diagnostics.
Generator Options

• Del Medical CM Series

• Del Medical CM Series DR

• Del Medical ANTHEM

• Del Medical IN Series

Table Options

• 4-Way Floating: EV800 Elevating, Four-Way Floating Table

• Elevating: EV650 Elevating Radiographic Table

• 4-Way Floating: RT100 Radiographic Table

Tubestand Options

• Floor Mount: DFMTS Floor Mounted Tubestand

• Floor/Ceiling Mount: FWFC Rotating Tubestand

Bucky Options

• VS300 Upright Wall Stand

• VS200 Vertical Wall Stand

• VS100 Vertical Wall Holder

Empower your healthcare facility with the cutting-edge technology of the Del Medical Radiation Room. Optimize patient care and imaging efficiency today!

Del Medical Radiation Room Specifications:

• Room Dimensions:

• Length: 12 ft (3.66 m)

• Width: 10 ft (3.05 m)

• Height: 8 ft (2.44 m)

• Wall Construction:

• Material: Lead-lined drywall

• Lead Thickness: 1/16 in (1.59 mm)

• Flooring:

• Material: Vinyl or tile

• Thickness: Minimum 0.125 in (3.18 mm)

• Ceiling:

• Type: Acoustic ceiling tiles

• Lead Lining: Optional

• Door:

• Type: Lead-lined door

• Thickness: 1.75 in (44.5 mm)

• Lead Equivalent: 1/16 in (1.59 mm)

• Radiation Shielding:

• Wall Shielding: Equivalent to 1/16 in (1.59 mm) lead

• Window Shielding: Lead glass minimum 1/8 in (3.18 mm) thickness

• Ventilation:

• Type: Adequate air exchanges per hour

• Air Filtration: HEPA filter recommended

• Electrical Requirements:

• Voltage: 120/240 V

• Circuit: Dedicated circuit for X-ray equipment

• Lighting:

• Type: LED overhead lighting

• Brightness: Minimum 50 foot-candles (540 lux)

• Intercom System:

• Installed for communication with patients outside the room

• Emergency Exit:

• Clear path to exit, with illuminated signage

• Patient Table:

• Adjustable height

• Weight Capacity: Minimum 400 lbs (181 kg)

• Radiographic Equipment:

• Imaging Systems: X-ray machine compatible

• Digital Detector: Required based on system specifications

• Storage:

• Space for disposable supplies and equipment

• Cabinetry for secure storage of hazardous materials

• Waste Disposal:

• Sharps container

• Biohazard waste container

• Compliance:

• Must meet local and national regulations for radiation safety and building codes

• Cabling:

• Shielded cables for electronic equipment

Please ensure specifications are compliant with the latest standards and regulations applicable in your region.
