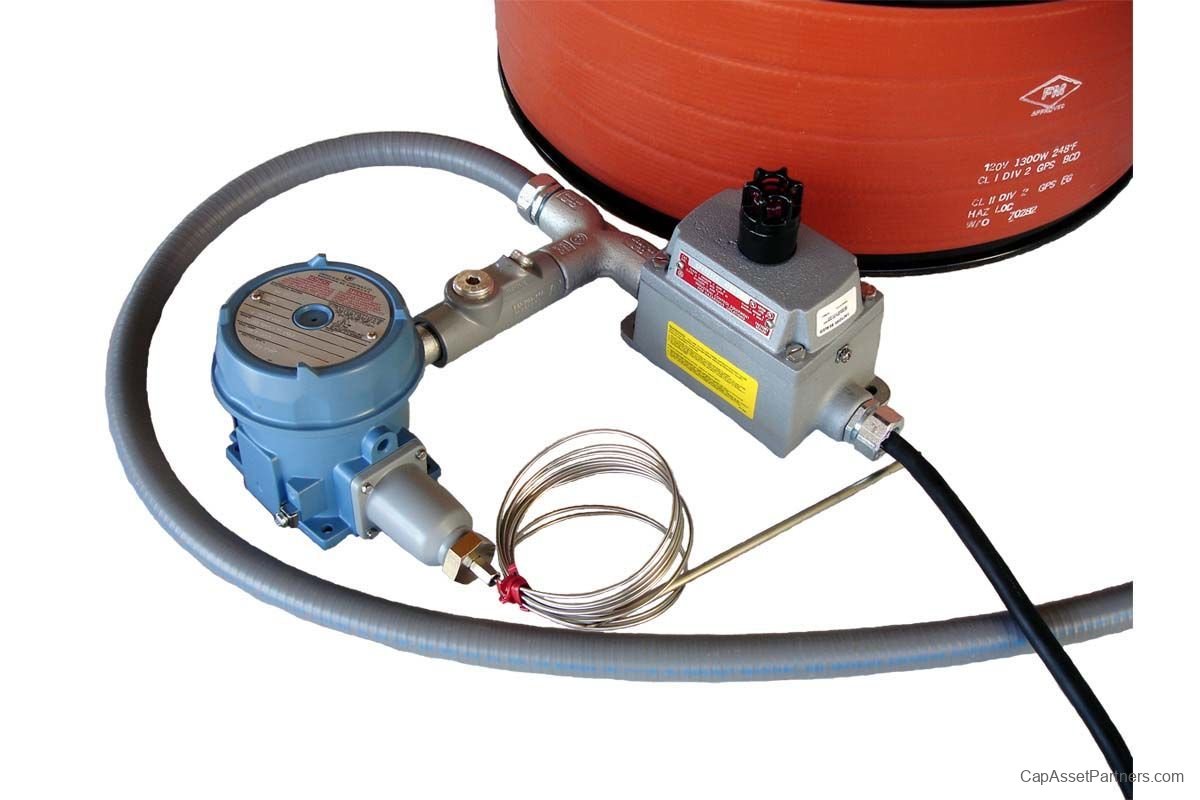

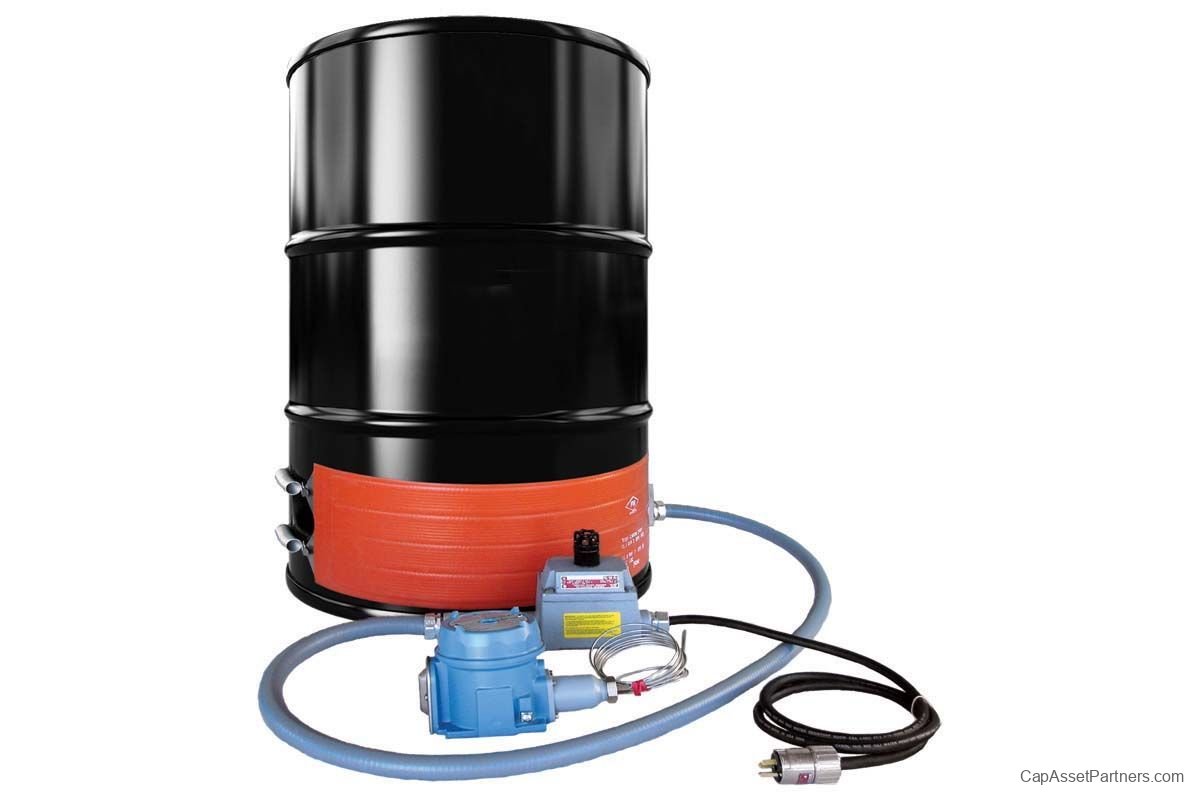

DHCX Series Hazardous-Area Rated Silicone Rubber Drum Heaters with Temperature Controller
Engineered for performance and safety, the DHCX Series Silicone Rubber Drum Heaters are the ideal solution for freeze protection, viscosity control, and maintaining materials at elevated temperatures in hazardous-area environments. Made from robust silicone rubber, these heaters ensure efficient and reliable thermal management across various applications while prioritizing safety and compliance.
Key Features:
- FM Approved for Class 1 & II, Division 2 environments, ensuring suitability for dangerous locations.
- Equipped with a high-limit thermostat, designed to operate below NEC Article 500 T-rating for maximum safety.
- Moisture and chemical resistant with an IP 54 rating, making it suitable for demanding industrial settings.
- Includes a 6 ft (1.8 m) long power cord with an explosion-proof plug for safe connectivity.
- Extra-wide surface coverage of 8 in (203 mm) ensures even heating across drum surfaces.
- Grounded design meets NEC 427.23 for enhanced safety.
- Intrinsically safe designation allows operation in hazardous environments without additional risk.

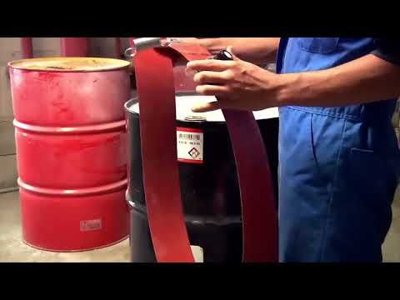

- Plug-and-play installation simplifies setup, reducing downtime.
- Constructed for durability to ensure a long service life and consistent performance.
Specifications:
| SKU |
Max Temperature |
Length |
Width |
Density |
Diameter |
| DHCX131000T3 |
292°F (144°C) |
58.5 in (1486 mm) |
8 in (203 mm) |
2.50 W/in² (0.39 W/cm²) |
18.6 in (473 mm) |
| DHCX131000T4A |
158°F (70°C) |
58.5 in (1486 mm) |
8 in (203 mm) |
2.50 W/in² (0.39 W/cm²) |
18.6 in (473 mm) |
| DHCX151300T3 |
292°F (144°C) |
70 in (1778 mm) |
8 in (203 mm) |
2.50 W/in² (0.39 W/cm²) |
22.3 in (566 mm) |
| DHCX151300T4A |
158°F (70°C) |
70 in (1778 mm) |
8 in (203 mm) |
2.50 W/in² (0.39 W/cm²) |
22.3 in (566 mm) |
| DHCX231000T3 |
292°F (144°C) |
58.5 in (1486 mm) |
8 in (203 mm) |
2.50 W/in² (0.39 W/cm²) |
18.6 in (473 mm) |
| DHCX231000T4A |
158°F (70°C) |
58.5 in (1486 mm) |
8 in (203 mm) |
2.50 W/in² (0.39 W/cm²) |
18.6 in (473 mm) |
| DHCX251300T3 |
292°F (144°C) |
70 in (1778 mm) |
8 in (203 mm) |
2.50 W/in² (0.39 W/cm²) |
22.3 in (566 mm) |
| DHCX251300T4A |
158°F (70°C) |
70 in (1778 mm) |
8 in (203 mm) |
2.50 W/in² (0.39 W/cm²) |
22.3 in (566 mm) |
Additional Information:
| SKU |
Plug Type |
Lead Length |
Wattage |
| DHCX131000T3 |
NEMA 5-15P Plug |
6 ft (1.8 m) |
1000W |
| DHCX131000T4A |
NEMA 5-15P Plug |
6 ft (1.8 m) |
1000W |
| DHCX151300T3 |
NEMA 5-15P Plug |
6 ft (1.8 m) |
1300W |
| DHCX151300T4A |
NEMA 5-15P Plug |
6 ft (1.8 m) |
1300W |
| DHCX231000T3 |
Bare Wire Leads |
6 ft (1.8 m) |
1000W |
| DHCX231000T4A |
Bare Wire Leads |
6 ft (1.8 m) |
1000W |
| DHCX251300T3 |
Bare Wire Leads |
6 ft (1.8 m) |
1300W |
| DHCX251300T4A |
Bare Wire Leads |
6 ft (1.8 m) |
1300W |
