Manufactured by: BriskHeat

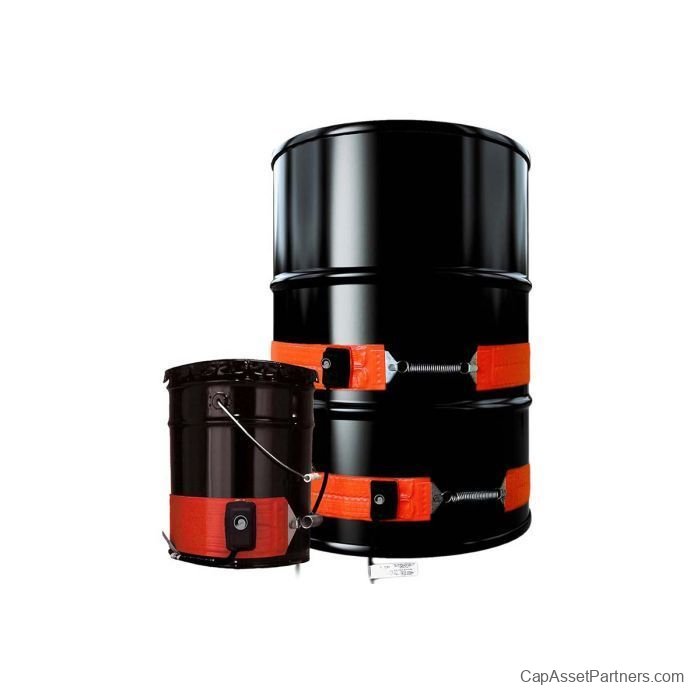

BriskHeat DHLS Heavy Duty Mid-Temperature Silicone Rubber Drum and Pail Heaters

Introducing the DHLS Heavy Duty Mid-Temperature Silicone Rubber Drum and Pail Heaters — expertly crafted with two layers of fiberglass reinforced silicone rubber, ensuring superior strength and exceptional durability. These heaters are designed for rapid heat-up times and reliable mid-temperature maintenance, specifically intended for use on metal drums.

Key Features:

Moisture and Chemical Resistant: Built to withstand harsh environments for long-term use.

Plug-and-Play Design: User-friendly installation — no complex setup required.

Long Service Life: Constructed to provide consistent performance across various applications.

Adjustable Thermostat: Adjustable heating temperatures ranging from 160°F to 425°F (71°C to 218°C).

Exceptional Durability & Flexibility: Suitable for a wide range of metal drum and pail heating applications.

Extra-Wide Surface Coverage: 4 in (102 mm) wide for thorough heating.

Grounded for Safety: Meets NEC 427.23 standards for added security.

Power Cord: Features a 6 ft (1.8 m) long power cord with your choice of plug options.

Improves Flow: Enhances the flow and reduces viscosity of drum and pail contents.

Ideal Applications:

Viscosity Control

Freeze Protection

Temperature Maintenance

Melting of Solids

Technical Specifications:

SKU	Max Temperature	Length	Width	Density	Diameter
DHLS10	Up to 160°F (71°C)	35.0 in (889 mm)	4 in (102 mm)	5.0 watts/in² (0.78 watts/cm²)	11.1 to 12.1 in (282 to 307 mm)
DHLS11	Up to 160°F (71°C)	44.0 in (1118 mm)	4 in (102 mm)	5.0 watts/in² (0.78 watts/cm²)	14.0 to 15.0 in (355 to 381 mm)
DHLS13	Up to 160°F (71°C)	58.5 in (1486 mm)	4 in (102 mm)	5.0 watts/in² (0.78 watts/cm²)	18.6 to 19.6 in (472 to 498 mm)
DHLS15	Up to 160°F (71°C)	70.0 in (1778 mm)	4 in (102 mm)	5.0 watts/in² (0.78 watts/cm²)	22.3 to 23.2 in (566 to 589 mm)
DHLS20	Up to 160°F (71°C)	35.0 in (889 mm)	4 in (102 mm)	5.0 watts/in² (0.78 watts/cm²)	11.1 to 12.1 in (282 to 307 mm)
DHLS21	Up to 160°F (71°C)	44.0 in (1118 mm)	4 in (102 mm)	5.0 watts/in² (0.78 watts/cm²)	14.0 to 15.0 in (355 to 381 mm)
DHLS23	Up to 160°F (71°C)	58.5 in (1486 mm)	4 in (102 mm)	5.0 watts/in² (0.78 watts/cm²)	18.6 to 19.6 in (472 to 498 mm)
DHLS25	Up to 160°F (71°C)	70.0 in (1778 mm)	4 in (102 mm)	5.0 watts/in² (0.78 watts/cm²)	22.3 to 23.2 in (566 to 589 mm)

Additional Information:

SKU	Certification	Plug Type	Lead Length	Wattage
DHLS10	REACH, RoHS, IP54	NEMA 5-15P	6 ft (1.8 m)	550W
DHLS11	REACH, RoHS, IP54	NEMA 5-15P	6 ft (1.8 m)	700W
DHLS13	REACH, RoHS, IP54	NEMA 5-15P	6 ft (1.8 m)	1000W
DHLS15	REACH, RoHS, IP54	NEMA 5-15P	6 ft (1.8 m)	1200W
DHLS20	REACH, RoHS, IP54, CE	Bare Wire Leads	6 ft (1.8 m)	550W
DHLS21	REACH, RoHS, IP54, CE	Bare Wire Leads	6 ft (1.8 m)	700W
DHLS23	REACH, RoHS, IP54, CE	Bare Wire Leads	6 ft (1.8 m)	1000W
DHLS25	REACH, RoHS, IP54, CE	Bare Wire Leads	6 ft (1.8 m)	1200W
