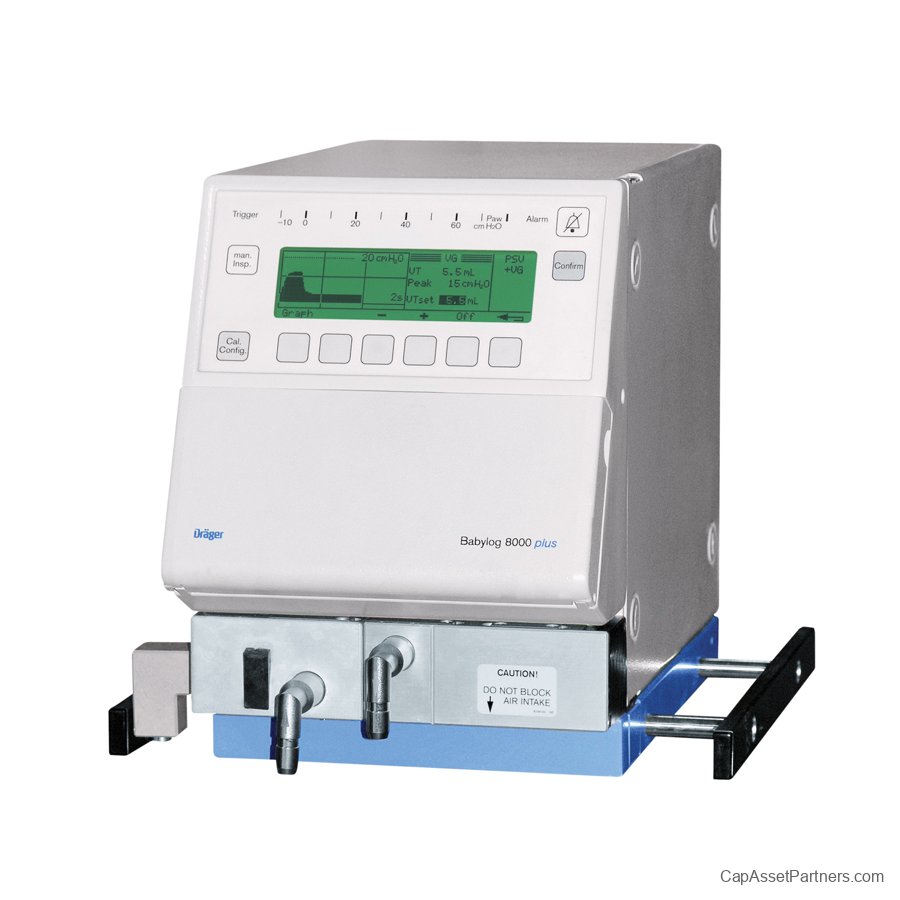

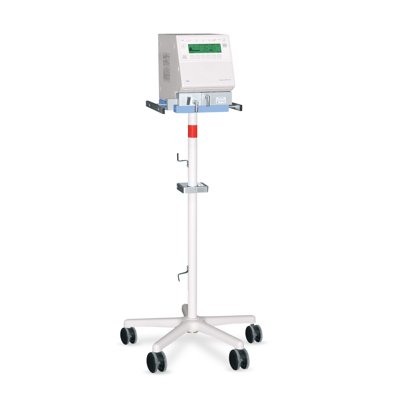

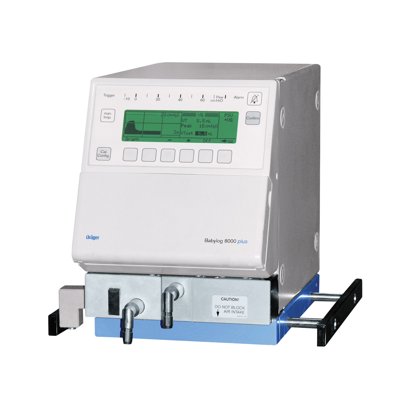

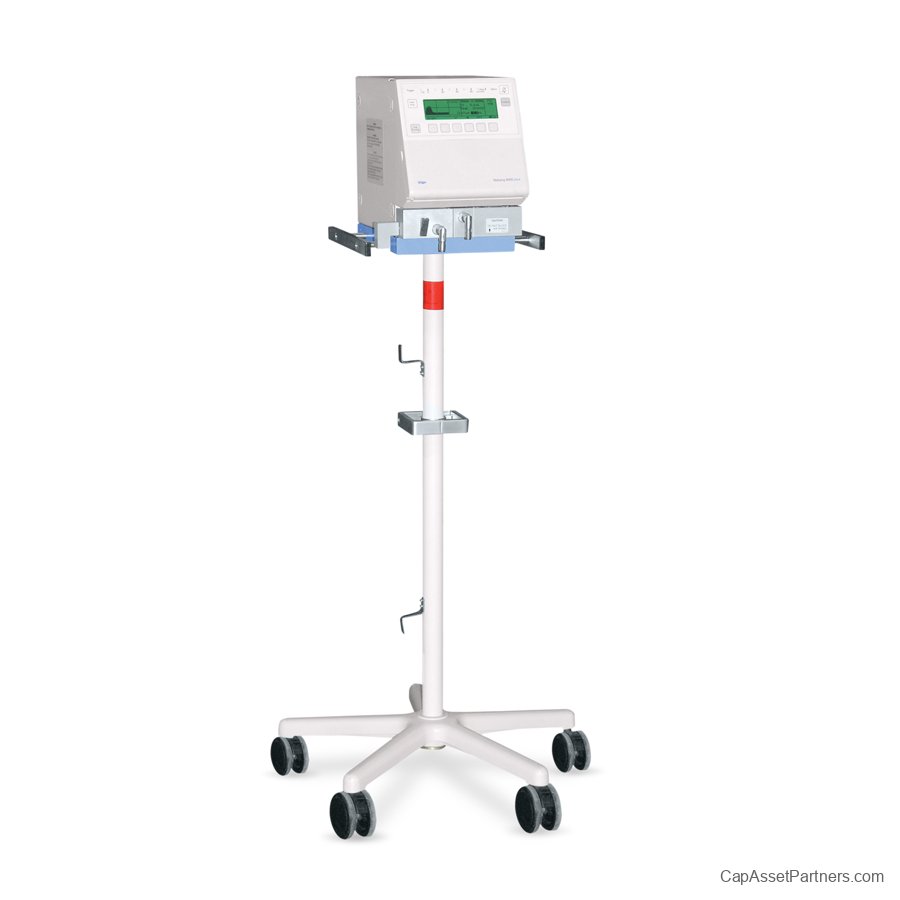

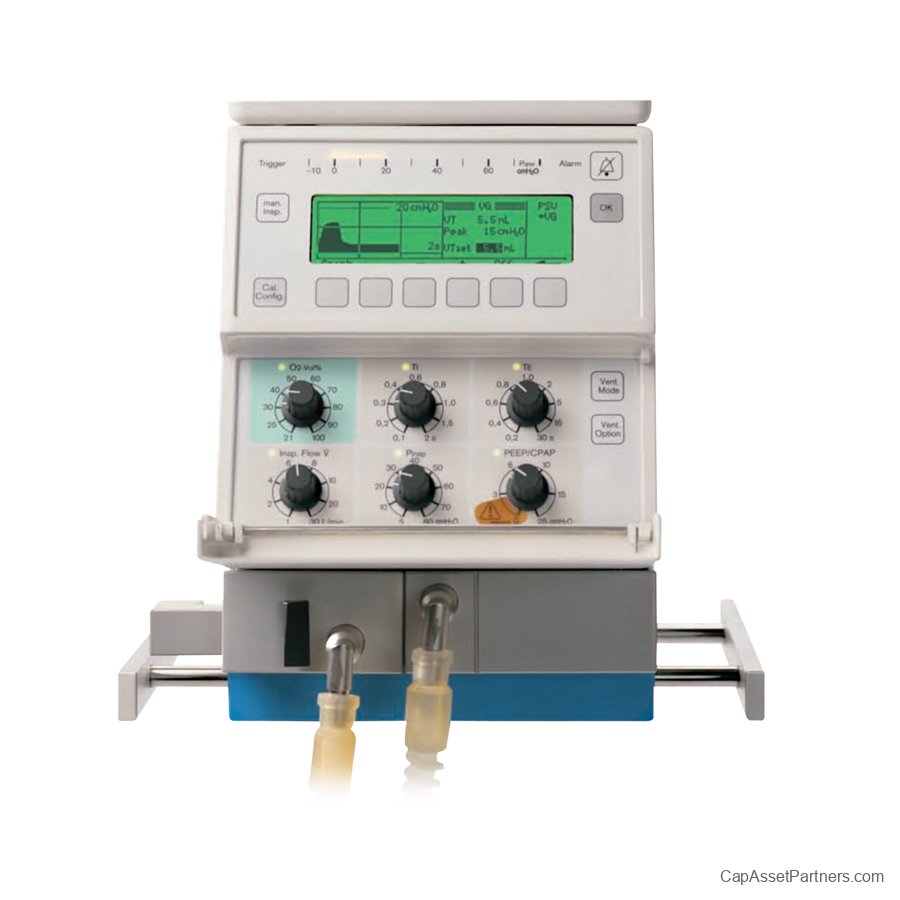

Drager Babylog 8000 Plus Ventilator

Drager Babylog 8000 Plus Ventilator
The Drager Babylog 8000 Plus Ventilator is expertly crafted to provide optimal ventilation for small children and even the tiniest pre-term infants. With its advanced upgrade platform, this ventilator seamlessly integrates the latest treatment methods and clinical innovations to meet the evolving needs of pediatric care.
Designed for sensitive synchronization, the Babylog 8000 Plus offers gentle yet precise support for spontaneous breathing, helping to reduce the work of breathing for young patients. This ensures a more comfortable ventilation experience, allowing healthcare providers to focus on what matters most – the well-being of their patients.
Ideal for neonatal and pediatric intensive care settings, the Babylog 8000 Plus is committed to enhancing respiratory support and facilitating better outcomes for vulnerable infants. Explore the state-of-the-art features of the Drager Babylog 8000 Plus and elevate your clinical practice to new heights.

Drager Babylog 8000 Plus Ventilator Specifications

Controls:

• Conventional Ventilation: Continuous flow, pressure-limited, time-cycled

• Triggered Ventilation:

• Modes: SIMV, SIPPV, PSV (Pressure Support Ventilation), leak adapted

• Trigger: Flow/volume trigger, leak adapted

• Trigger Delay: approx. 40-60 ms

• High Frequency Ventilation: CPAP+HFV, IMV+HFV;

• Frequency: 5 to 20 Hz

• Volume Guarantee Ventilation: SIMV+VG, SIPPV+VG, PSV+VG

• Oxygen Mixer Loss (Bleed Flow): 0 L/min

Settings:

• Inspiratory Oxygen Concentration: 21-100 vol.% oxygen

• Peak Inspiratory Pressure: 10 to 80 mbar (0.1 to 1.1 psi)

• PEEP/CPAP: 0 to 25 mbar (0 to 0.36 psi)

• Maximal Frequency: 200 bpm

• Inspiratory Time: 0.1 to 2 seconds

• Expiratory Time: 0.2 to 30 seconds

• Inspiratory Flow: 1 to 30 L/min (0.035 to 1.06 CFM)

• Base Flow (VIVE): 1 to 30 L/min (0.035 to 1.06 CFM)

Monitoring:

• Flow Monitoring: At the Y-piece, integrated

• Volume Monitoring: At the Y-piece, integrated

• Lung Function Monitoring: Compliance, resistance C20/C

• Method: Linear regression analysis

• FiO2 Monitoring: Integrated

• Real-Time Curves: Flow and pressure, integrated

• Peak Pressure: Up to 99 mbar (1.43 psi)

• Mean Airway Pressure: Up to 99 mbar (1.43 psi)

• Graphic Trends: 6 parameters, integrated

• Logbook: Record of up to 100 alarms
