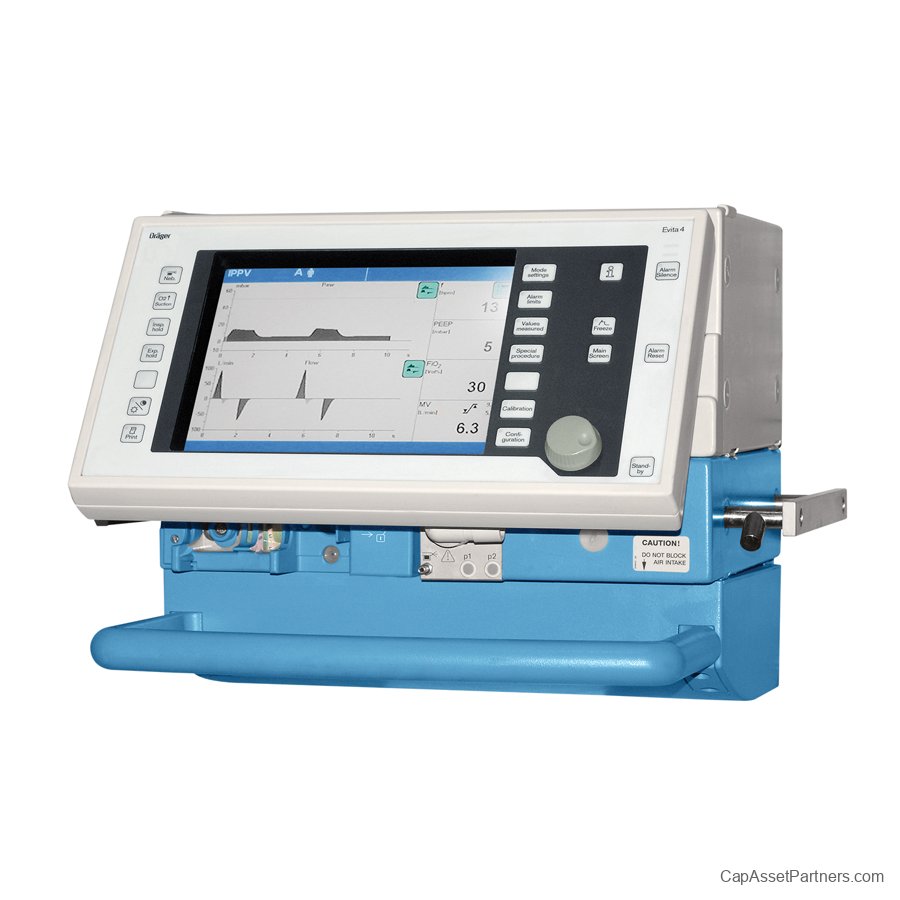

Dräger Evita 4 Ventilator: Versatile Ventilation for Every Patient Population
The Dräger Evita 4 Ventilator is an advanced respiratory solution tailored for a diverse range of patient populations, including neonates, pediatrics, and adults. Designed to meet the rigorous demands of the ICU environment, the Evita 4 enhances interaction among patients, clinicians, and the ventilator, ensuring effective respiratory support.
Intuitive User Interface and Customization
Equipped with a functional touch screen, the Evita 4 provides clinicians with real-time information on ventilator settings, patient measurements, and advanced trending capabilities. The full-color display allows for configurable trends, curves, and logbooks, ensuring that clinicians can easily access the data they need for optimal patient care. The user-friendly interface emphasizes active control elements for immediate recognition of settings, while the robust touch screen ensures flexible operation combined with direct access to essential controls.
Exceptional Weaning Performance
The Evita 4 features PCV+/BIPAP™, a universal mode that allows patients to breathe spontaneously, reducing the need for sedation and facilitating a smoother transition off mechanical ventilation. Automatic Tube Compensation (ATC™) further enhances the weaning process by minimizing the effort required to breathe through an endotracheal tube, thus providing comfort and supporting patient autonomy during recovery.
Comprehensive Ventilation Capabilities
With capabilities for both conventional and non-invasive ventilation (NIV), the Evita 4 significantly reduces reintubation rates and can sometimes prevent the need for intubation altogether. This versatility means that healthcare providers can rely on a single device for various ventilation needs, enhancing efficiency and resource management.
Future-Proof Design and Innovation
The modular design of the Evita 4 ensures that it remains upgradable and compatible with future advancements. Dräger Medical has a rich history of innovation in ventilation therapy, with key features like ATC and NeoFlow introduced over the years. This commitment to evolving technology assures users that even older models can benefit from the latest enhancements.
Commitment to Research and Development
Dräger Medical invests heavily in basic research, recognizing that continuous innovation is fundamental to the future of healthcare. This commitment ensures that the Evita 4 remains at the forefront of respiratory care, backed by proven technology and ongoing advancements.
Explore the potential of the Dräger Evita 4 Ventilator for delivering exceptional respiratory support to your patients across all demographics, and experience a trusted solution that combines innovation, flexibility, and a commitment to quality care.
Drager Evita 4 Ventilator Specifications:
Physical Weight & Dimensions
- Height: 11.4 inches (290 mm)
- Width: 20.9 inches (530 mm)
- Depth: 17.7 inches (450 mm)
- Weight: Approx. 27 kg (60 lbs.)
- Diagonal Screen Size: 6.5" TFT LCD color display
Ventilation Settings
- IPPV, IPPVAssist (CMV, CMVAssist)
- SIMV, SIMVASB (SIMV, SIMV/Psupp)
- MMV, MMVASB (MMV, MMV/Psupp)
- BIPAP, BIPAPAssist (PCV+, PCV+/Psupp, PCV+Assist)
- CPAP, CPAPASB (CPAP, CPAP/Psupp)
- AutoFlow™ – Automatic adaptation of inspiratory flow in volume controlled modes
- ATC™ – Automatic Tube Compensation (optional)
- IV - Mask Ventilation (optional)
- Ventilation Frequency (f): 0 to 100 /min, 0 to 150 /min (Neonatal)
- Inspiration Time (Tinsp): 0.1 to 10 s
- Tidal Volume (VT) (BTPS):
- Pediatric and Neonatal: 6 to 30 L/min
- Inspiratory Pressure: 0 to 80 mbar (0 to 80 cmH2O)
- PEEP / Intermittent PEEP: 0 to 35 mbar (0 to 35 cmH2O)
- Pressure Assist (PASB) (Psupp): 0 to 80 mbar (0 to 80 cmH2O)
- Rise Time for Inspiratory Pressure: 0 to 2 s
- O2 Concentration: 21 to 100 Vol.%
- Multi-sense Trigger Criteria: Internal automatic pressure trigger, Flow, Volume (Flow adjustable 0.3 to 15 L/min)
Measured Values Displayed
- Airway Pressure: Peak pressure, plateau pressure, mean pressure, PEEP, min. pressure (0 to 99 mbar/ cmH2O)
- Minute Volume (MV), (BTPS): MV, MVspont, MVleak (0 to 99 L/min)
- Tidal Volume (VT), (BTPS): Inspired VT, expired VT, VTASB (VTPS) (0 to 3999 mL)
- Breathing Frequency (f): ftotal, fspon, fmand (0 to 300 bpm)
- O2 Concentration (FiO2): Inspired O2 concentration (15 to 100 Vol.%)
- Resistance: (0.0 to 600 mbar/L/s) (cmH2O/L/s)
- Compliance: (0.0 to 300 mL/mbar) (mL/cmH2O)
- Breathing Gas Temperature: 18° to 51°C
- Waveforms: Airway pressure-time, flow-time, volume-time, etc.
- Trends (optional): FiO2, MV, VT, f, PEEPi, R, C, etCO2, etc.
- Loops (optional): Paw-V, V-Flow, Flow-Paw, etc.
- Capnography (etCO2) (optional): 0 to 100 mmHg
- CO2 Production (VCO2): 0 to 999 mL/min, STPD
- Serial Dead Space Vds: 0 to 999 mL, BTPS
- Dead Space Ventilation (Vds/VT): 0 to 99%
- O2 Saturation: SpO2, pulse
Alarms / Monitoring
- Airway Pressure: High/Low
- Expired Minute Volume: High/Low
- Apnea Alarm Time: 5 to 60 s
- Spontaneous Breath Frequency: High
- Inspired O2 Concentration: High/Low
- Breathing Gas Temperature: High
- SpO2 Pulse (optional): High/Low
- etCO2 (optional): High/Low
Performance Data
- Max. Flow for Pressure Support and Spontaneous Breathing: 180 L/min (adult), 60 L/min (pediatric)
- Valve Response Time: ? 5 ms
- Control Principle: Time cycled, volume constant, pressure-controlled
- Safety Relief Valve: 100 mbar (cmH2O)
- Leakage Compensation: Yes
- Hose System Compensation: Yes
- Outlet for Pneumatic Nebulizer: Yes
Operating Data
- Mains Power Connection: 100 to 240 V, 50/60 Hz, 10 to 30 V DC (optional)
- Power Consumption: Approx. 125 W
- Gas Supply Operating Pressure: O2, air: 2.7 to 6 bar (39 to 87 PSI)
Machine Outputs
- Digital Output: Output and reception via an RS 232 C interface
- Digital Output: Output for Independent Lung Ventilation (ILV)
- Digital Output (optional): For output and reception via two RS 232 C interfaces
- Analog Output (optional): For analog output of two measured values
