Drager Infinity Kappa Vital Signs Monitor

Drager Infinity Kappa Vital Signs Monitor: Comprehensive Patient Monitoring Solution

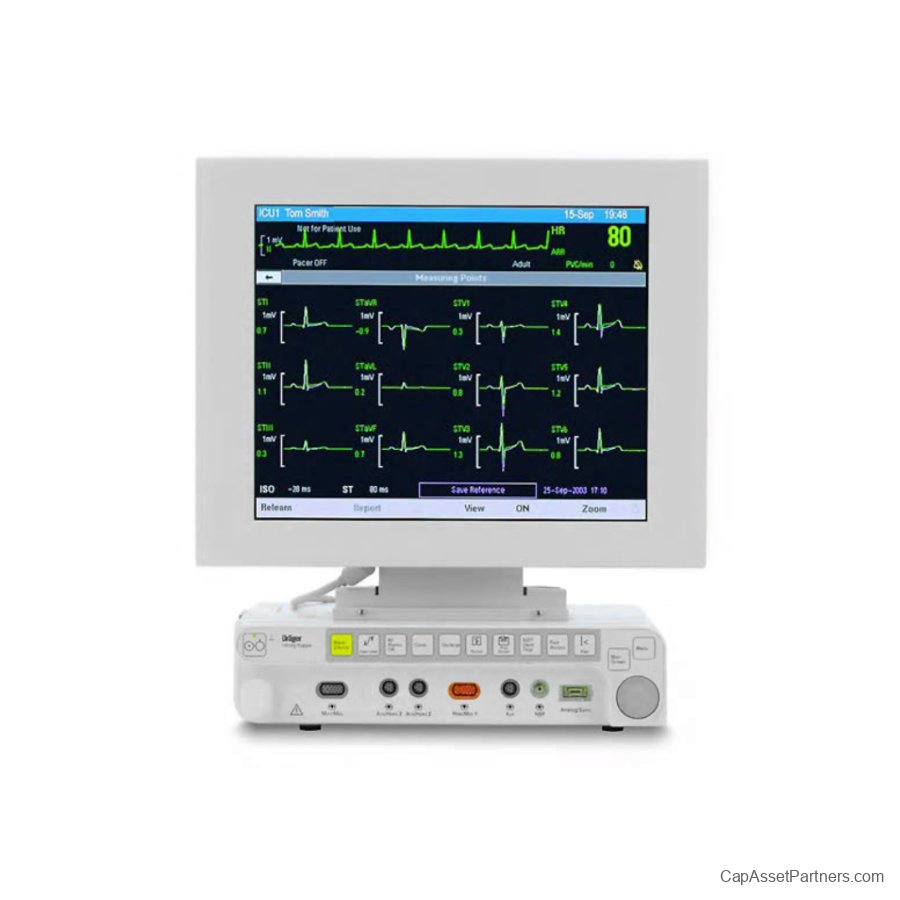

The Drager Infinity Kappa Vital Signs Monitor is designed to elevate patient care across all healthcare settings. This fixed vital signs monitor is suitable for every patient type and acuity level, making it an exemplary choice for a variety of medical environments. Featuring a CPU base unit, the Infinity Kappa is compatible with standard medical-grade flat-panel displays, ensuring clarity and ease of use right at the bedside.
This sophisticated monitor provides an extensive array of vital parameters. It displays 3-, 5-, 6-, and 12-lead ECG, EEG, etCO2, full arrhythmia analysis, BISx, respiration, multiple temperature readings, as well as invasive and noninvasive blood pressure data. The advanced respiratory mechanics features, along with vertical and horizontal cursors and drug calculations, streamline workflows and enhance the efficiency of care delivery.
Key Features:

• Full Vital Parameter Display: Offers comprehensive insight with advanced monitoring capabilities, including various ECG configurations, respiratory metrics, and blood pressure monitoring.

• Versatility of Use: Functions effectively as a standalone device or integrates seamlessly into the Infinity Network for centralized patient surveillance.

• Compatibility: The base unit connects effortlessly to standard medical-grade flat-panel displays, and when equipped with the Advanced Communication and MIB option, it can interface with third-party medical devices.

• Patient Data Management Integration: Connects to patient data management systems for automatic charting, enhancing workflow and reducing manual entry errors.

Delivering precise monitoring and robust functionality, the Drager Infinity Kappa is a vital addition to any clinical setting, designed to meet the diverse needs of patients and healthcare professionals alike. Explore how the Infinity Kappa can transform your patient care environment today.

Drager Infinity Kappa Vital Signs Monitor Specifications (Old)

Physical Specifications:

• Size (H x W x D): 102 x 368 x 368 mm (4 x 14.5 x 14.5 in)

• Cooling: Fan

• Weight: 8.4 kg (19 lb)

Display Specifications:

• Type: Medical grade independent TFT active matrix LCD (available sizes: 15”, 17” or 19”)

• Channels: 4 standard, 6 or 8 optional

• Resolution: 800 x 600 pixels

• User Interface: Easy-to-use menu structure with rotary knob and fixed keys

• Sweep Speed: 6.25, 12.5, 25 and 50 mm/s ±10% (accuracy guaranteed for 15” display)

Alarms:

• Priorities: 3; High (Life Threatening), Medium (Serious), Low (Advisory)

• Audio Alarm Tones: User selectable: Infinity, IEC 12, or IEC 2 2

Connections:

• MultiMed cables, HemoMed pod, 3 Pod communication ports, NBP input, 1 port for Masimo SET SmartPod or Nellcor OxiMax SmartPod2 or Scio® Four modules or remote keypad, alarm output, analog output, QRS sync output, RS 232, remote display, and DirectNet. Infinity Kappa with Advanced Communication adds connections for up to four MIB-compliant devices, Surgical Display Controller, and alternate connections for Scio Four modules.

Analog Output:

• Signals: ECG, arterial blood pressure

• Delay: ? 25 msec

Infinity Network:

• Networking Method: Wired via DirectNet; Wireless via WLAN PC card

• Wireless Encryption: None, WEP, WPA2

Information Management Capabilities:

• Data Storage: 24 hours of trended parameter information

• Data Resolution: 30-second sampling

• Trend Tables: 1-, 5-, 15-, 30-, or 60-minute display formats

• Trend Graphs: 1-, 2-, 4-, 8-, 12-, or 24-hour display formats

Electrical Specifications:

• Power Consumption: ? 70 watts (fully loaded)

• Patient Leakage Current: ? 10 mA

• Protection Class: Internal Class 1 power supply (per IEC 60601-1)

• Power Requirements: 100 to 240 V AC, 3 A

• Frequency: 50 to 60 Hz

• Chassis Leakage Current: 300 mA @ 120 V AC; 500 mA @ 240 V AC

Battery Specifications:

• Internal Battery: Battery type: lithium-ion; Battery capacity: 180 minutes

• Charging Time: 6.5 hours at 25 °C

Environmental Requirements:

• Operating Temperature Range: 10 to 45 °C (50 to 113 °F)

• Storage Temperature Range: -15 to 50 °C (-5 to 122 °F)

• Operating Relative Humidity: 20 to 90%, non-condensing

• Storage Relative Humidity: 10 to 95% (with packaging)

• Operating Atmospheric Pressure: 525 to 795 mmHg (70 to 106 kPa)

• Storage Atmospheric Pressure: 375 to 795 mmHg (50 to 106 kPa)

• Standards: IEC 60601-1 and applicable particular and collateral standards, IEC 60601-1-2, Electromagnetic compatibility CISPR 11, Class B
