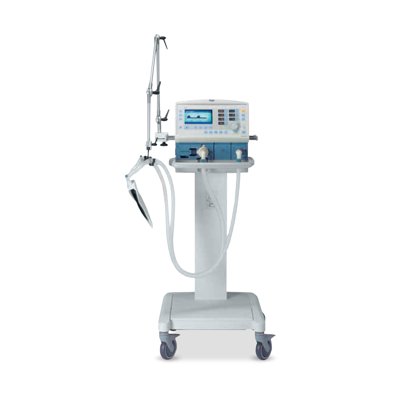

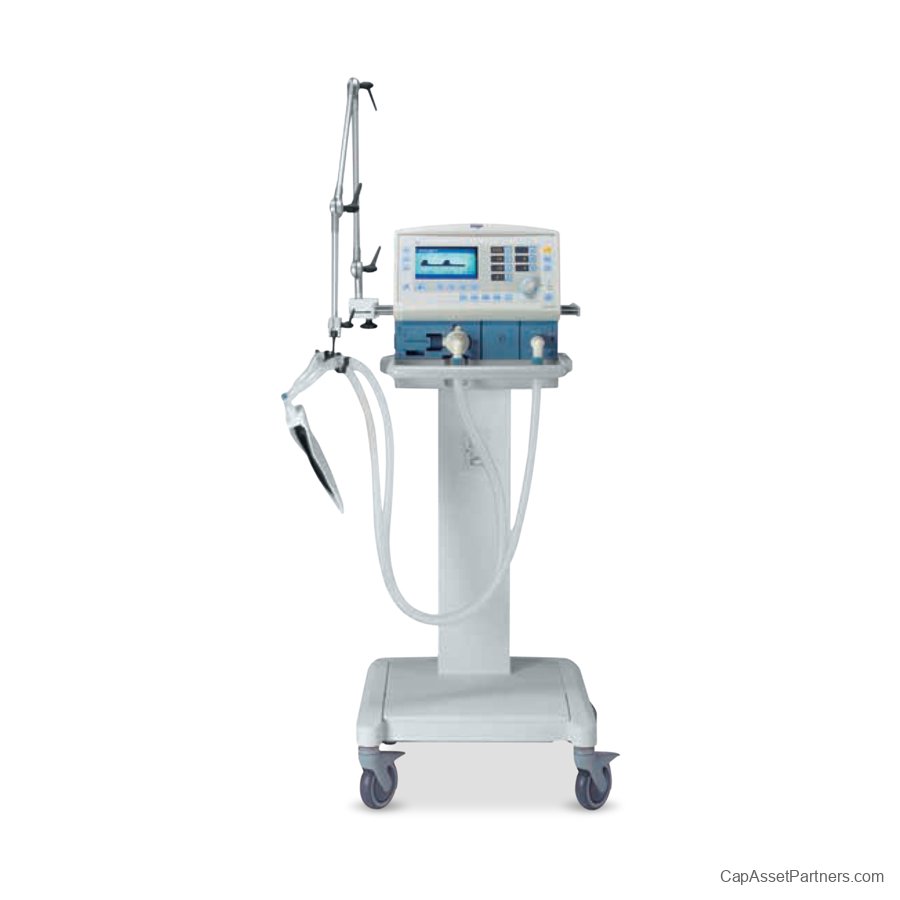

Drager Savina Ventilator

Dräger Savina Ventilator: Advanced Ventilation for Critical Care
The Dräger Savina Ventilator is an advanced medical device designed to meet the demands of challenging clinical environments. Renowned for its reliability, the Savina combines exceptional ventilation performance with quality and adaptability, making it an essential tool in any healthcare setting.
Key Features:

• Patient Safety: The Savina helps minimize risks for patients, allowing healthcare professionals to focus on their care.

• Adaptability: Its versatile design enables easy adjustments to meet the changing needs of patients throughout their treatment journey.

• Support for Weaning: This ventilator is effective in facilitating the weaning process, promoting recovery and long-term ventilation.

Outstanding Ventilation Performance:

• The Savina's open breathing system allows for spontaneous breathing at any moment and pressure level across all ventilation modes, ensuring flexibility during treatment.

• Thanks to its internal turbine, there's no need for external air cylinders or compressors, enhancing convenience and reducing setup time.

• An internal battery ensures reliable operation during power failures, enhancing portability, and mobility.

• Multiple ventilation modes are available to cater to diverse acuity levels and patient demographics, making it a versatile addition to any clinical toolkit.

Safety and Quality Assurance:

• The Dräger Savina delivers precise oxygen dosage through nine advanced rubies, ensuring high-quality care.

• Built-in safety features, including independent "bodyguards" and backup sensors for airway pressure, FiO2, and minute volume, further enhance patient safety.

User-Friendly Design:

• Key ventilation settings are easily accessible, streamlining the process for medical professionals.

• An intuitive operating concept minimizes training time, fostering speed and efficiency in critical care situations.

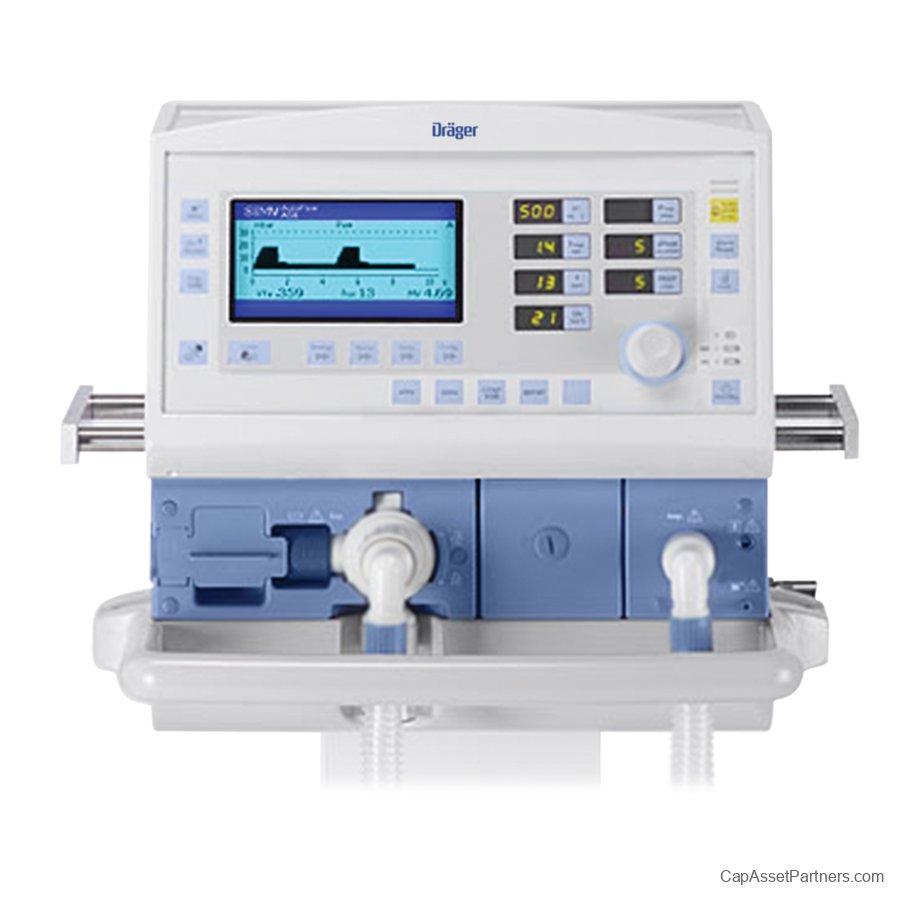

• A bright, high-resolution color screen provides excellent visibility, regardless of viewing distance, while its sleek design fits seamlessly into various clinical environments.

The Dräger Savina Ventilator is a reliable choice for healthcare providers looking to deliver optimal ventilation care while prioritizing patient safety and user experience.

Dräger Savina Ventilator Specifications

Ventilation Mode:

• PPV (CMV), IPPVAssist (CMVAssist), SIMV, SIMVASB (SIMV/PS), CPAP, CPAPASB (CPAP/PS), BIPAP (PCV+) (optional), BIPAP ASB (PCV+/PS) (optional)

Enhancements:

• NIV - Non Invasive Ventilation with optimized alarm system and automatic leakage compensation (optional)

• AutoFlow® - Automatic adaptation of the inspiratory flow in volume-oriented ventilation modes (optional)

• LPO - Low Pressure Oxygen; independent oxygen supply (optional)

• Graphic screen - Advanced ventilation monitoring (optional)

• Nurse call - Connection for transmitting alarm signals to a central alarm system (optional)

Patient Type:

• Adult, pediatric

Ventilation Frequency:

• 2 to 80 bpm

Tidal Volume:

• 0.05 to 2.0 L (50 to 2000 mL), BTPS

Inspiratory Flow:

• 0 to 180 L/min

Inspiratory Pressure:

• 0 to 99 mbar (cmH2O)*

PEEP/Interm. PEEP:

• 0 to 35 mbar (cmH2O)

Pressure Support/ASB:

• 0 to 35 mbar (cmH2O) (relative to PEEP)

Flow Acceleration:

• 5 to 200 mbar/s (cmH2O/s)

O2-Concentration:

• 21 to 100 Vol. %

Trigger Sensitivity:

• 1 to 15 L/min

Measured Value Display:

• Airway pressure measurements: Peak, plateau, mean airway pressure, PEEP (0 to 100 mbar, cmH2O)

• Minute volume (MV): Total, spontaneous MV (0 to 99 L/min, BTPS)

• Tidal volume VT: Inspiratory and expiratory VT (0 to 3999 mL, BTPS)

• Breathing frequency: Total and spontaneous (0 to 150 bpm)

• Inspiratory O2-concentration: 21 to 100 Vol. %

• Breathing gas temperature: 18 to 48°C (sensor optional)

• Curve displays: Airway pressure/time, flow/time

• Ventilation ratio (I:E): 150:1 to 1:150

Alarms:

• Airway pressures: High / low

• Expiratory minute volume: High / low

• Tidal volume: High / low

• Apnoea-alarm time: 15 to 60 sec

• Spontaneous breathing frequency: High

• Inspiratory O2-concentration: High / low

• Inspiratory breathing gas temperature: High

Performance Data:

• Maximum flow for pressure assist/spontaneous breathing: 180 L/min

• Valve response time T0…90: ? 5 ms

• Control principle: Time-cycled, volume-constant, pressure-controlled

• Safety valve opening pressure: 100 mbar (cmH2O)

• Emergency valve: Enables spontaneous breathing with filtered ambient air if supply fails

• Automatic gas switch-over function if O2 supply fails

• Output for pneumatic medicament nebulizer: Synchronized with inspiration

Operating Data:

• Main power connection: 100 V to 240 V, 50/60 Hz AC, 10 to 36 V DC

• Typical power consumption: 100 W

• Internal battery: Approx. 60 min (optional extension up to 7 h)

Digital Machine Outputs:

• Digital output and input via RS 232 C interface, Dräger Medibus standard

Gas Supply:

• Air: Turbine technology

• O2 gas supply: 3 bar (39 psi) to 10% up to 6 bar (87 psi)

Physical Weight & Dimensions:

• Dimensions (without trolley): 380 (W) × 383 (H) × 358 (D) mm (15.0 × 15.1 × 14.1 inches)

• Weight (basic device): Approx. 24 kg (53 lbs)

• Diagonal screen size: 6.1" TFT color screen

Notes:

• * BIPAP – Trademark used under license

• BTPS – Body Temperature Pressure Saturated; measured values under conditions of the patient lung (37 °C, steam-saturated gas, ambient pressure)

• * 1 mbar = 100 Pa, AutoFlow®, Trademark by Dräger
