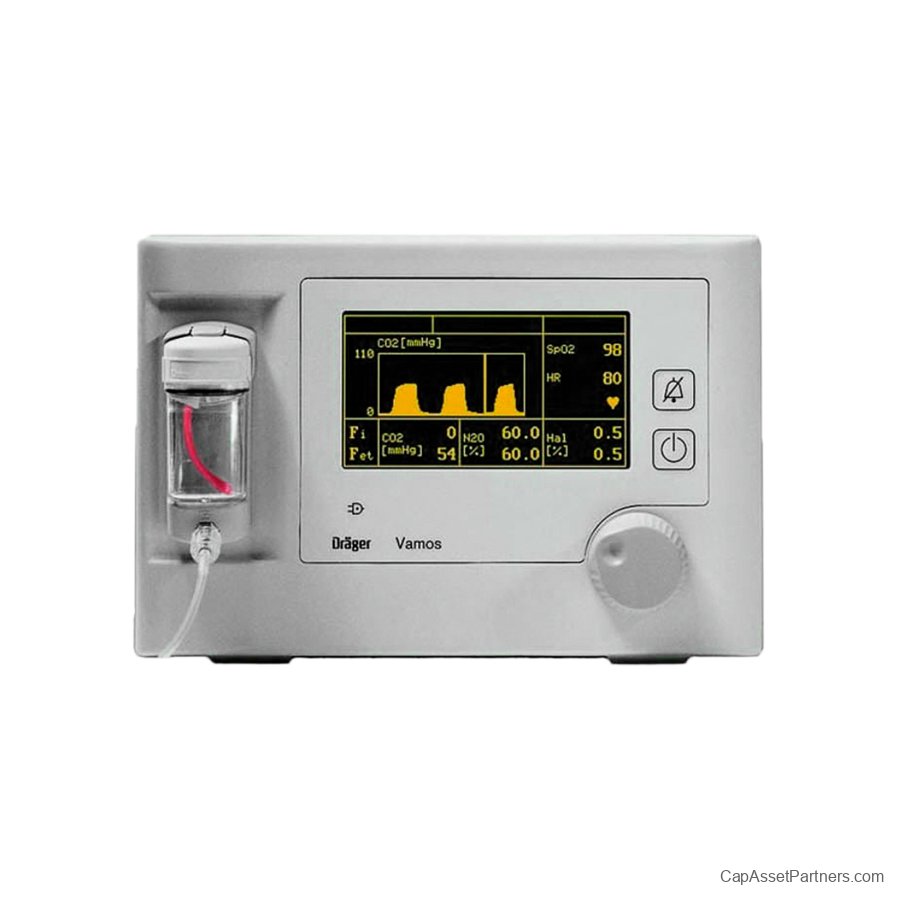

Drager Vamos Plus Anesthesia Monitor

Do you have a Drager Vamos Plus Anesthesia Monitor you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Drager

Category: Monitors - Anesthesia

Drager Drager Vamos Plus Anesthesia Monitor
Drager Vamos Plus Anesthesia Monitor: Performance Redefined
Discover the advanced capabilities of the Drager Vamos Plus Anesthesia Monitor, designed for optimal performance in diverse clinical environments. This state-of-the-art monitor features a vibrant 15" high-resolution touch-screen display, providing clear visibility of critical patient data.
Key Features:
  • Enhanced Measurement Flexibility: The optional integrated Dräger Anesthesia Gas Bench expands measurement capabilities, while the compact agent bench integrates seamlessly into the main unit, making it an all-in-one solution.
  • Comprehensive Monitoring: Track up to eight waveforms simultaneously and enjoy multi-lead ECG monitoring for a thorough assessment of patient heart activity.
  • Smart Alarm Management: Automatic alarm limit settings, color-coded alerts, and adjustable volume ensure you stay informed without overwhelming sound levels.
  • Data Management: Access graphical and tabular trending for real-time insights, with the option to enter patient data easily.
  • Connectivity Options: Effortlessly connect with Electronic Medical Records (EMR) and wireless telemetry systems, enhancing interoperability within your healthcare facility.
  • User-Friendly Features: The large time stamp and standby button offer convenience, while the function to print numerical data only provides streamlined record-keeping. Plus, you can customize waveform colors and enjoy the peace of mind offered by the battery backup, featuring two removable batteries.
  • Integrated Printing: The monitor is available with an optional built-in thermal printer for easy documentation.

Elevate your anesthesia monitoring experience with the Drager Vamos Plus—engineered for reliability, efficiency, and exceptional usability in every operating room.
Drager Vamos Plus Anesthesia Monitor Specifications

  • Dimensions:
  • Height: 15.7 inches (400 mm)
  • Width: 13.8 inches (350 mm)
  • Depth: 7.1 inches (180 mm)

  • Weight:
  • 14.1 lbs (6.4 kg)

  • Power Supply:
  • Input: 100-240 V AC, 50/60 Hz
  • Battery: Lithium-ion rechargeable battery, 14.8 V, 5.2 Ah

  • Display:
  • Screen Type: Color TFT
  • Size: 10.4 inches (264 mm)

  • Monitoring Parameters:
  • ECG: 3/5 lead monitoring
  • SpO2: Pulse oximetry
  • NIBP: Non-invasive blood pressure
  • EtCO2: End-tidal CO2 (capnometer)
  • Temperature: Dual temperature channels

  • Communications:
  • Ethernet: Yes
  • USB: Yes
  • Serial: Yes

  • Alarms:
  • Adjustable audible and visual alarms

  • Data Storage:
  • Internal memory for patient data and trends

  • Connectivity:
  • Integrated with Dräger gas management systems

  • Environmental Conditions:
  • Operating temperature: 50°F to 104°F (10°C to 40°C)
  • Humidity: 15% to 95% non-condensing

  • Safety Standards:
  • IEC 60601-1 certified

Note: Specifications may vary based on the specific configuration and optional modules chosen for the monitor.
