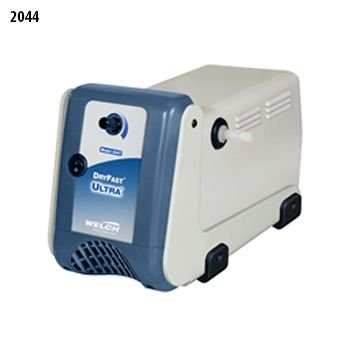

DryFast Diaphragm Pumps
The DryFast Diaphragm Vacuum Pumps deliver an exceptional, oil-free performance tailored for both laboratory and industrial applications. Designed with efficiency in mind, these pumps minimize maintenance requirements while ensuring reliable operation, making them a cost-effective choice for your pumping needs.
Key Features:
- Minimal maintenance compared to alternative technologies, saving you both time and money.
- Oil-free operation promotes a cleaner work environment, reducing contamination risks.
- Uncontaminated gas pumping ensures cleaner samples without the risk of oil back-streaming.
- Extended membrane life ensures longevity and reliable performance.
- Quiet operation for a more comfortable workspace.
- M14(1/8) exhaust connection for easy integration into existing systems.
- Two-head diaphragm design simplifies maintenance and enhances usability.
- Adjustable gas ballast for customized operation based on application needs.
- Advanced Vapor Management (AVM) control prominently located on the pump for user convenience.
Specifications:
| SKU |
H.P. |
Ultimate Pressure |
Air Displacement |
Motor Power |
Ambient Temperature Range |
| 2037B-01 |
1/5 HP |
35 Torr |
1.8 cfm (50 L/min) @ 60Hz |
0.7 kW @ 50 Hz, 0.85 kW @ 60 Hz |
10°C - 40°C |
| 2047B-01 |
1/5 HP |
35 Torr |
2.5 cfm (70 L/min) @ 60Hz |
0.7 kW @ 50 Hz, 0.85 kW @ 60 Hz |
10°C - 40°C |
| 2034B-01 |
1/5 HP |
9 Torr |
1.2 cfm (35 L/min) @ 60Hz |
0.7 kW @ 50 Hz, 0.85 kW @ 60 Hz |
10°C - 40°C |
| 2044B-01 |
1/5 HP |
9 Torr |
1.2 cfm (35 L/min) @ 60Hz |
0.7 kW @ 50 Hz, 0.85 kW @ 60 Hz |
10°C - 40°C |
Additional Information:
| SKU |
Dimensions |
Certification |
Power Requirement |
Plug Type |
Tubing Needed |
| 2037B-01 |
13.8 in x 6.8 in x 8.8 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
1/4 in (7 mm) |
| 2047B-01 |
13.8 in x 6.8 in x 8.8 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
1/4 in (7 mm) |
| 2034B-01 |
13.8 in x 6.8 in x 8.8 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
|
| 2044B-01 |
13.8 in x 6.8 in x 8.8 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
|
