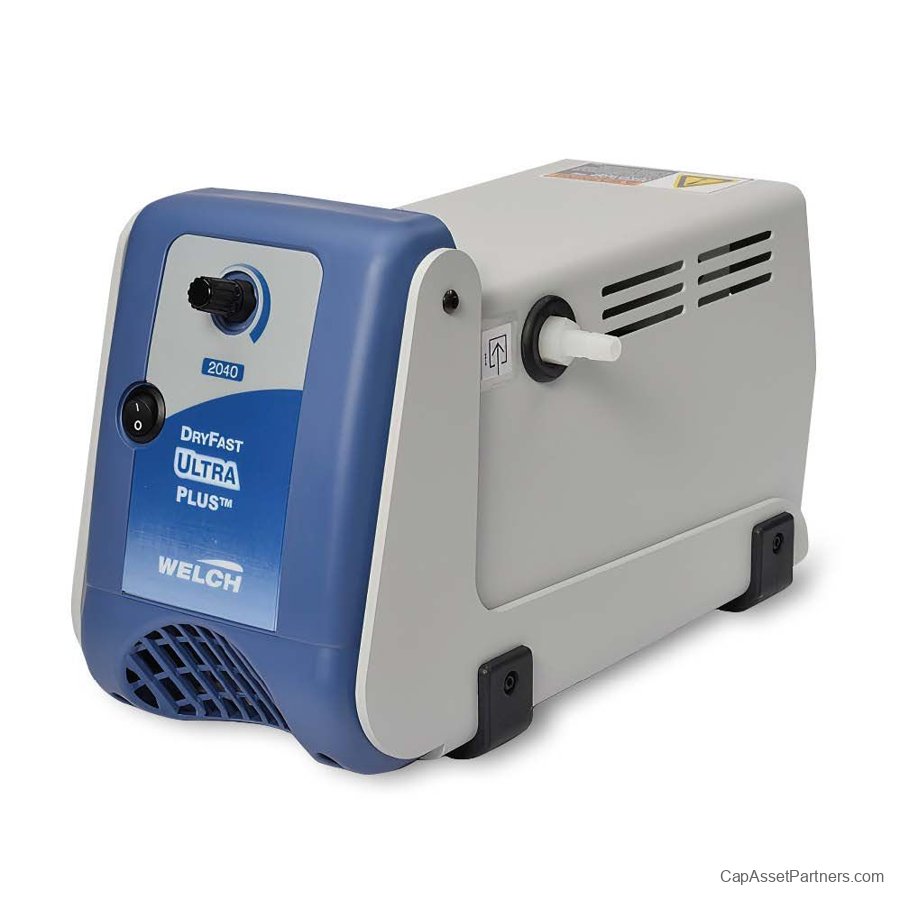

DryFast Ultra Plus Diaphragm Pumps
Experience the pinnacle of vacuum performance with the DryFast Ultra Plus Diaphragm Pump. Engineered to excel in demanding applications such as vacuum manifolds (Schlenk lines), rotary evaporators, and vacuum concentrators, this pump stands out as one of the industry's best. Its advanced two-stage, two-head design ensures unparalleled efficiency and durability in a corrosion-resistant framework.
Key Features:
- Available in both 115V and 230V options to suit your operational needs.
- Equipped with Gas Ballast for enhanced functionality and performance.
- 1/5 HP motor for reliable and powerful operation.
- Features a dual-head and dual-stage configuration for superior vacuum capability.
- Achieves a maximum vacuum of 29.9 in Hg, ideal for various laboratory settings.
- Ultimate pressure rating of 0.75 torr for precise applications.
- Generates a free air displacement of 40 LPM, making it suitable for high-demand uses.
- Requires 1/4 in ID tubing for streamlined connectivity and operation.
- Incorporates M14 (1/8) Intake Thread NPT for compatible fittings.
- Lightweight at only 21.25 lbs, allowing for easy handling and integration into your setup.
Specifications
| SKU |
H.P. |
Includes |
Motor Power |
Ambient Temperature Range |
| 2040B-01 |
1/5 HP |
Gas Ballast |
0.7 kW @ 50 Hz, 0.85 kW @ 60Hz |
10°C - 40°C |
| 2040C-02 |
1/5 HP |
Gas Ballast |
0.7 kW @ 50 Hz, 0.85 kW @ 60Hz |
10°C - 40°C |
Additional Information
| SKU |
Dimensions |
Certification |
Power Requirement |
Plug Type |
Tubing Needed |
Intake Thread NPT |
| 2040B-01 |
13.8 x 6.8 x 8.8 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
1/4 in (7 mm) |
M14 (1/8) |
| 2040C-02 |
13.8 x 6.8 x 8.8 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
1/4 in (7 mm) |
M14 (1/8) |
